Encoder Circuit Check (Rear LH Or RH)/With Front And Rear Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ENCODER SIGNAL
1. Turn ignition switch ON.
2. Check the signal between power window sub-switch (rear LH or RH) connector and ground with oscilloscope.

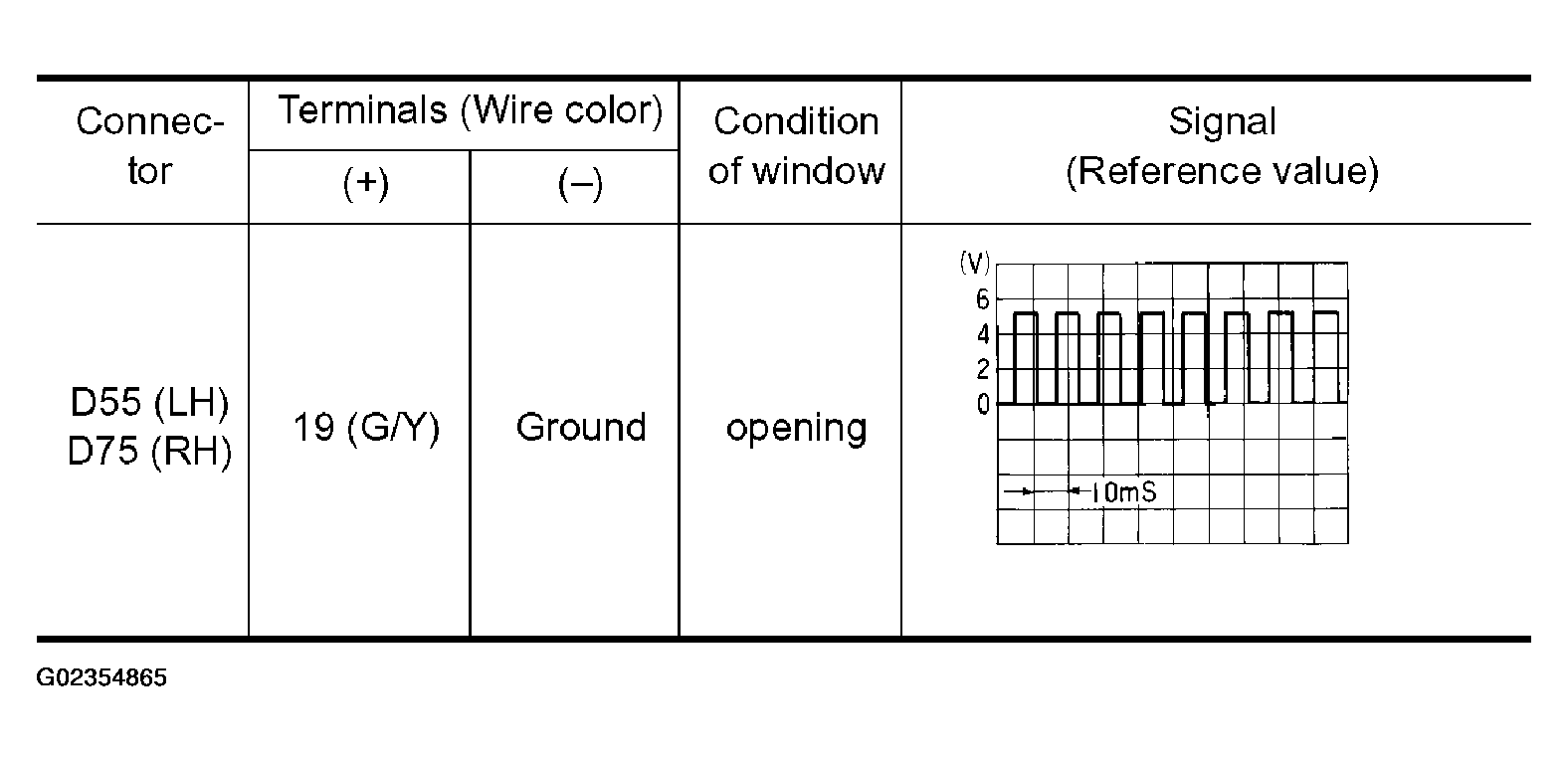

  Fig 1: Signal Check Between Power Window Sub-Switch (Rear LH Or RH) Connector And Ground With Oscilloscope Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

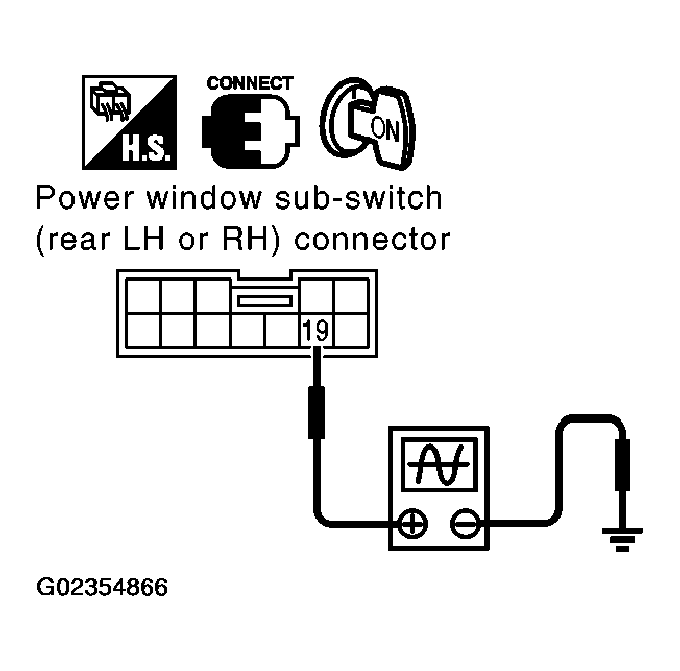

  Fig 2: Checking Signal Between Power Window Sub-Switch (Rear LH Or RH) Connector And Ground With Oscilloscope
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Encoder SW circuit is OK
2. NG: GO TO 2.
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch (rear LH or RH) and power window motor (rear LH or RH).
3. Check continuity between power window sub-switch (rear LH or RH) connector D55 (LH), D75 (RH) terminal 19 and power window motor (rear LH or RH) connector D52 (LH), D72 (RH) terminal 5.
  19 (G/Y) - 5 (G/Y): Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness.

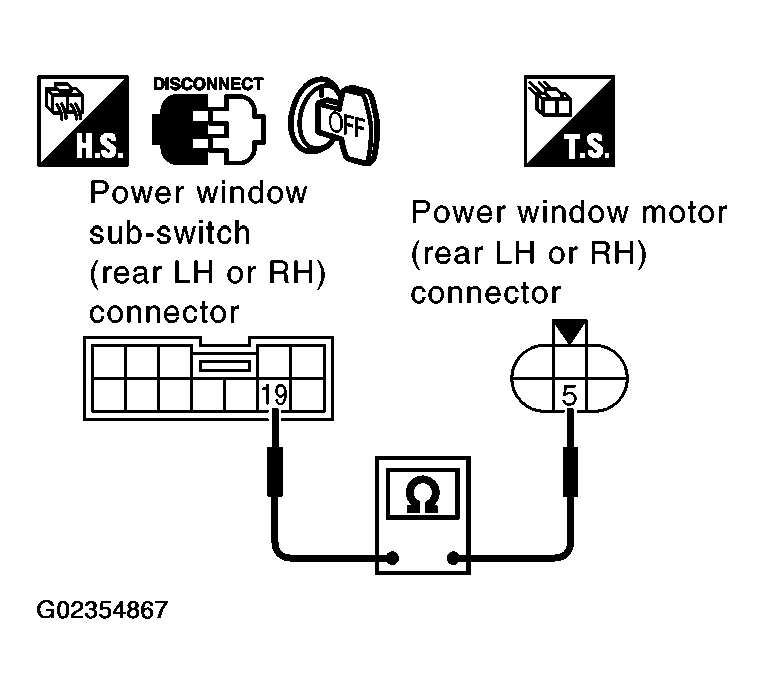

  Fig 3: Checking Continuity Between Power Window Sub-Switch (Rear LH Or RH) Connector D55 (LH), D75 (RH) Terminal 19 And Power Window Motor (Rear LH Or RH) Connector D52 (LH), D72 (RH) Terminal 5
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK ENCODER GROUND
1. Connect power window sub-switch (rear LH or RH) connector.
2. Check continuity between power window motor (rear LH or RH) connector D52 (LH), D72 (RH) terminal 4 and ground.
  4 (W/B) - Ground: Continuity should exist.
OK or NG
1. OK: Replace power window motor (rear LH or RH).
2. NG: GO TO 4.

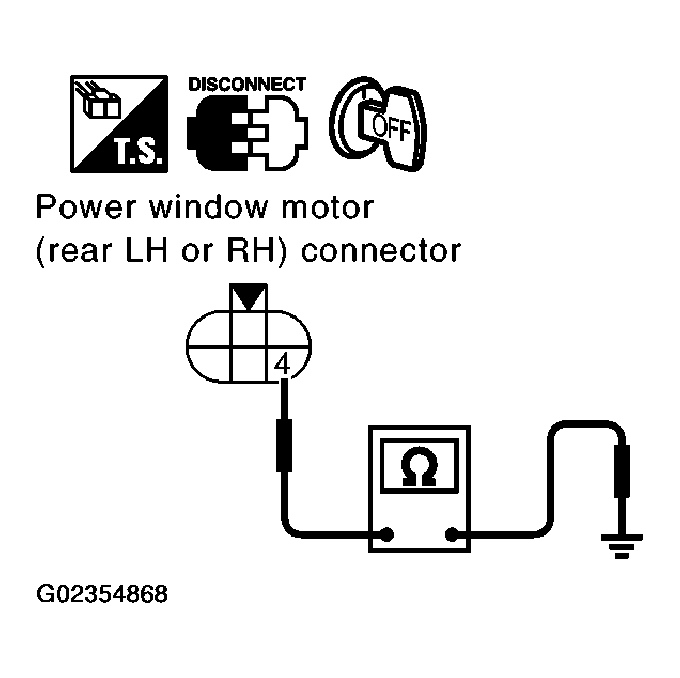

  Fig 4: Checking Continuity Between Power Window Motor (Rear LH Or RH) Connector D52 (LH), D72 (RH) Terminal 4 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK ENCODER GROUND CIRCUIT
Check continuity between power window motor (rear LH or RH) connector D52 (LH), D72 (RH) terminal 4 and power window sub-switch (rear LH or RH) connector D55 (LH), D75 (RH) terminal 20.

4 (W/B) - 20 (W/B): Continuity should exist.

OK or NG
1. OK: Replace power window sub-switch (rear LH or RH).
2. NG: Repair or replace harness.

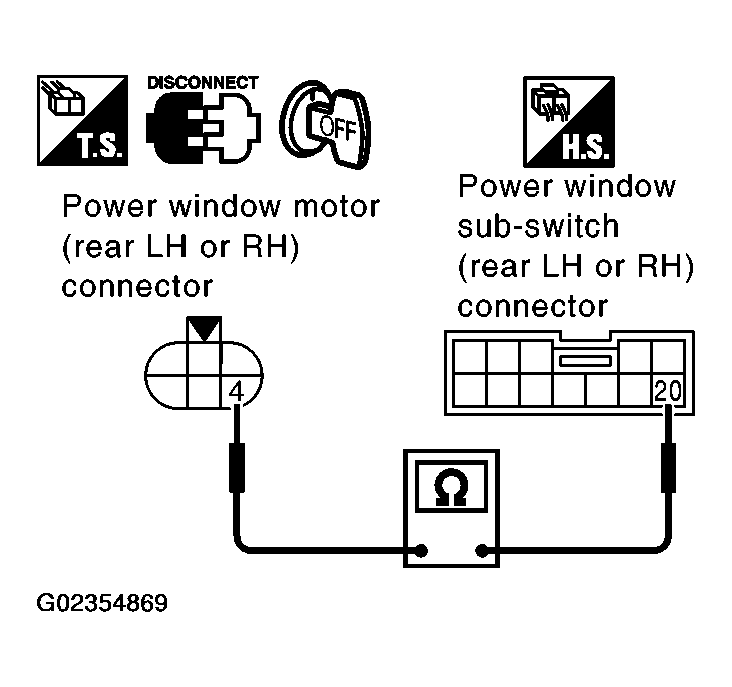

  Fig 5: Checking Continuity Between Power Window Motor (Rear LH Or RH) Connector D52 (LH), D72 (RH) Terminal 4 And Power Window Sub-Switch (Rear LH Or RH) Connector D55 (LH), D75 (RH) Terminal 20
  Courtesy of NISSAN MOTOR CO., U.S.A.
