Terminal And Reference Value For BCM/With Front Left And Right Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

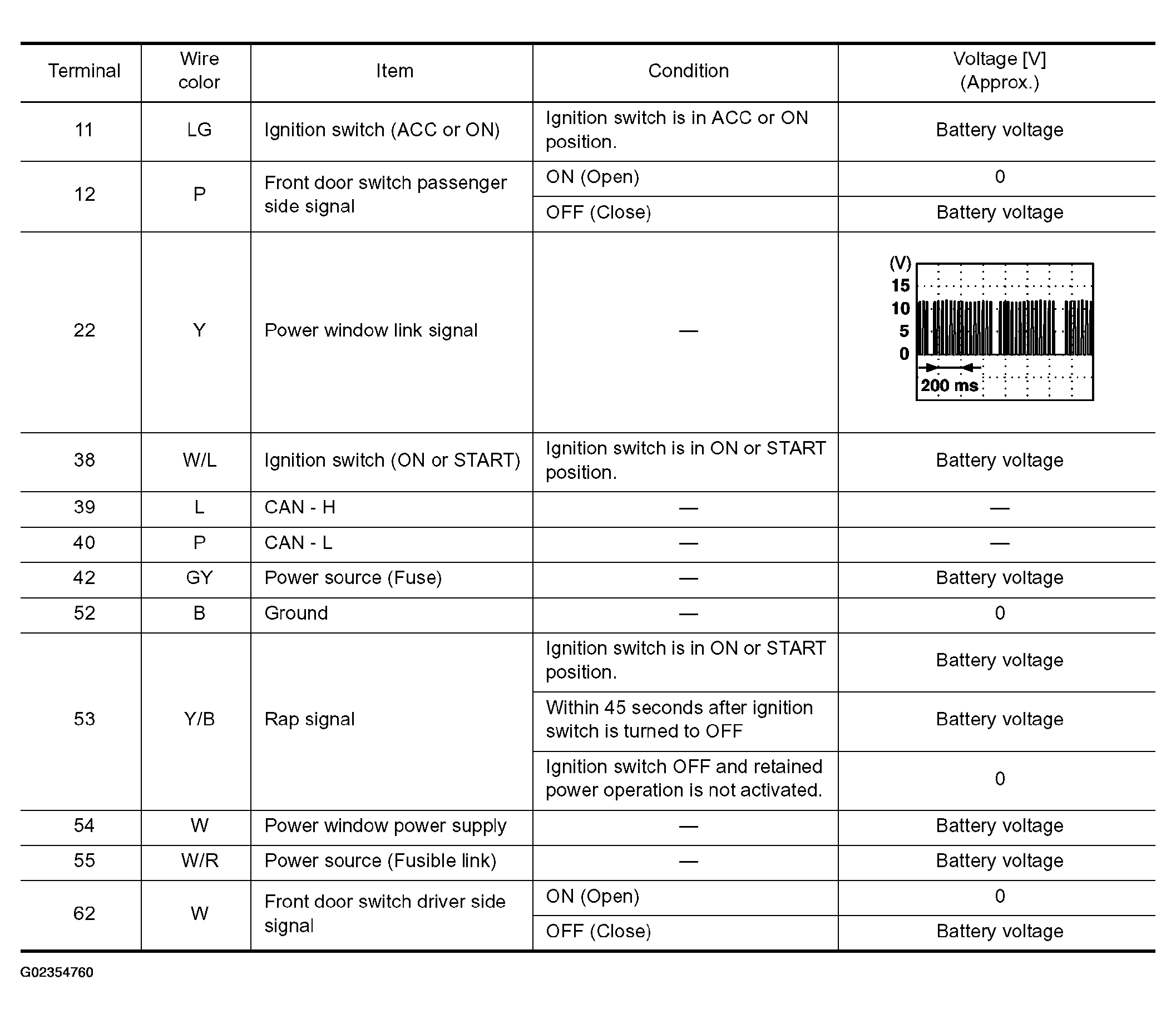

Fig 1: Terminal And Reference Value For BCM
G02354760Courtesy of NISSAN MOTOR CO., U.S.A.
