Power Supply and Ground Circuit Check for NAVI Control Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check Fuse
- Check that the following fuses of the NAVI control unit are not blown.
OK or NG
1. OK : GO TO 2.
2. NG : If fuse is blown, be sure to eliminate case of malfunction before installing new fuse. Refer to POWER DISTRIBUTION .
Power Supply Circuit Check
1. Disconnect the NAVI control unit connector.
2. Check voltage between the following harness connector terminals and ground.

  Fig 1: NAVI Control Unit Fuses Check Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 3.
2. NG : Check harness for open or short between NAVI control unit and fuse.

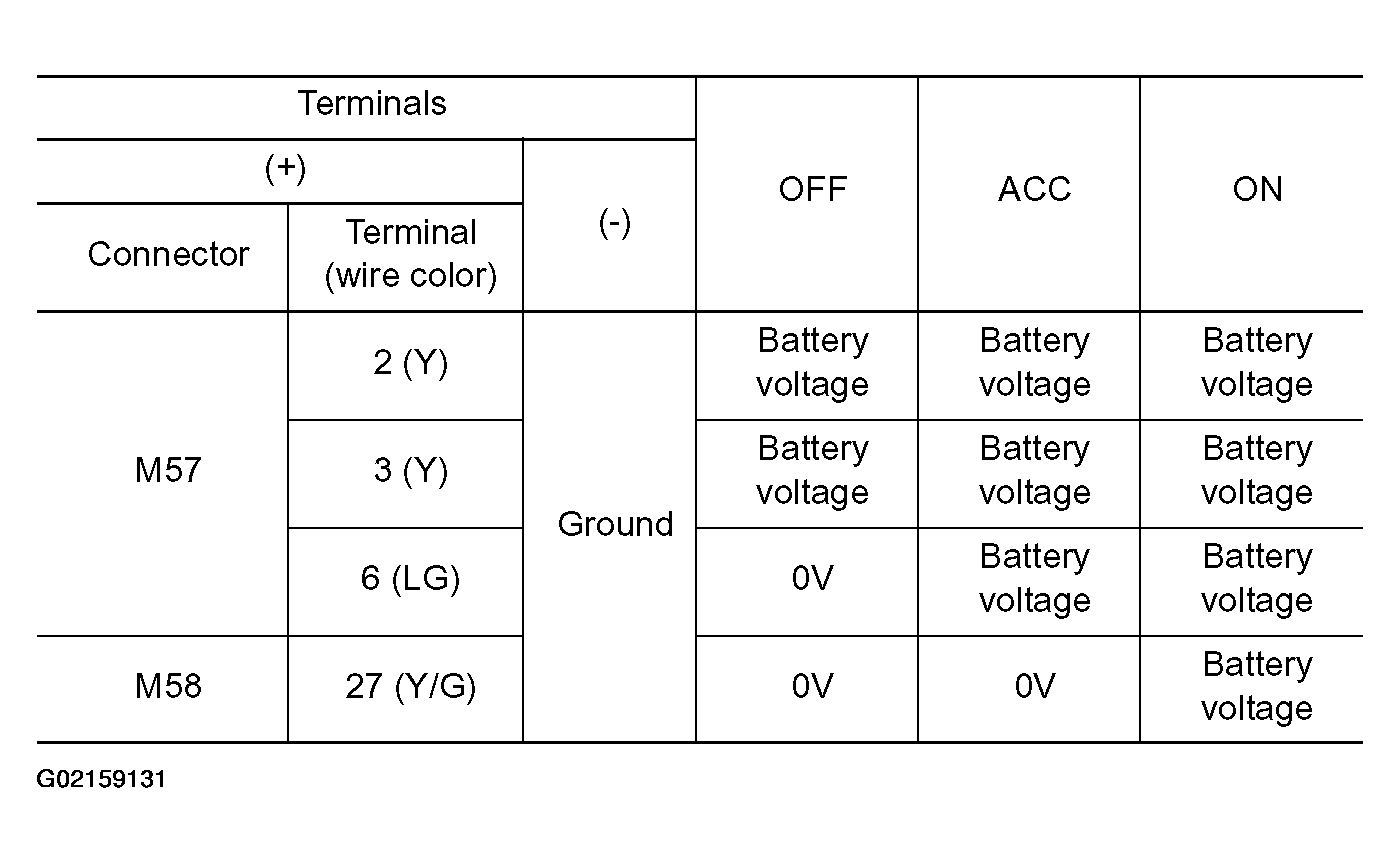

Fig 2: Voltage Check Between M57 And M58 Harness Connector Terminals And Ground Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Ground Circuit Check

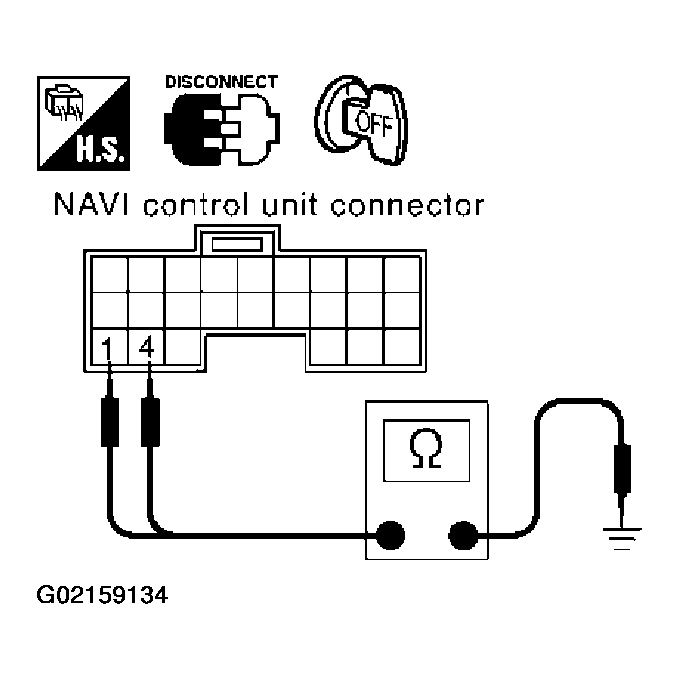

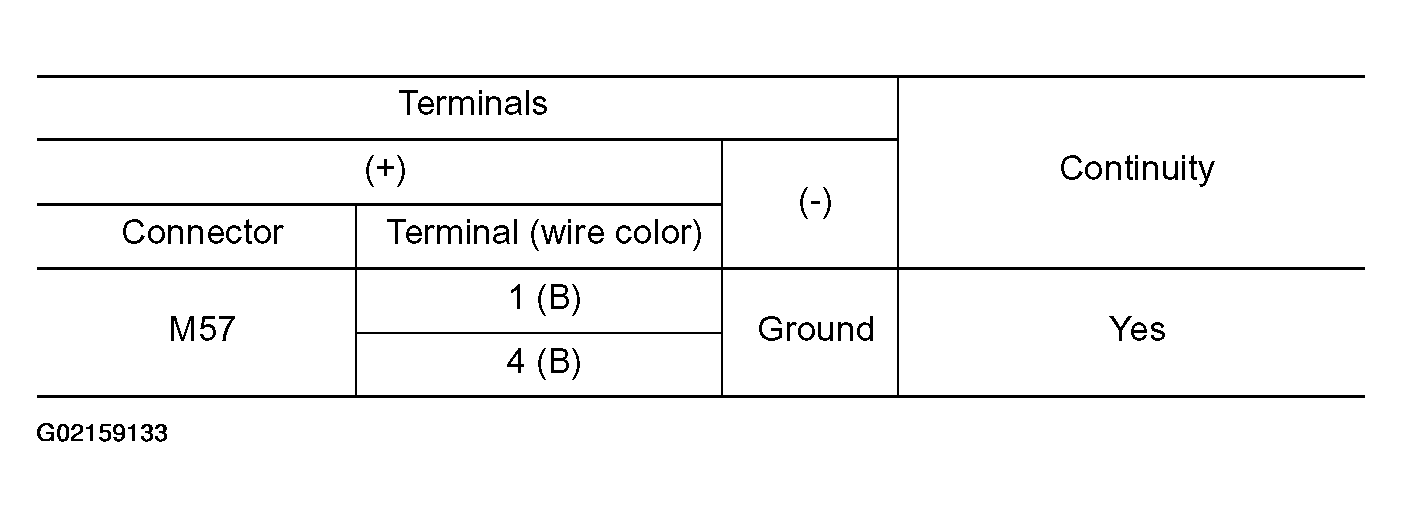

Check continuity between the following NAVI control unit and ground.

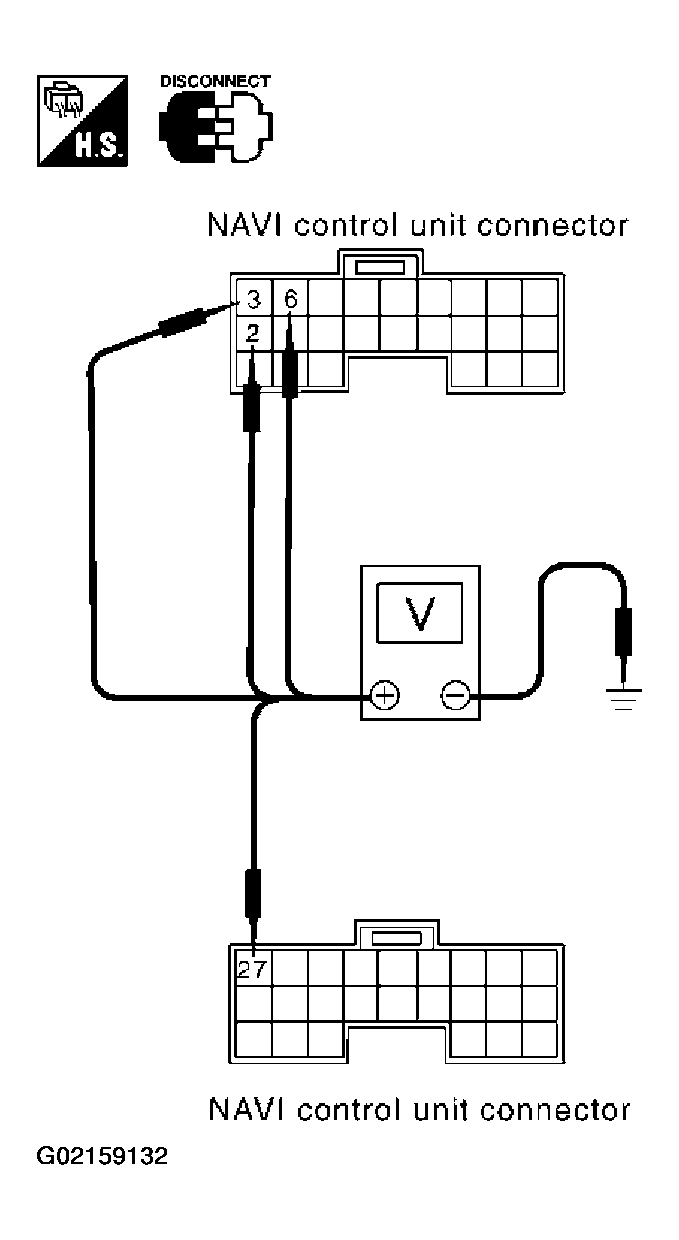

Fig 3: Checking Voltage Between M57 And M58 Harness Connector Terminals And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking Voltage Between M57 And NAVI Control Unit An Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : Inspection end.
2. NG : Repair or replace harness.
