Quick Reference Table

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Select an applicable diagnosis No. in the diagnosis result quick reference table.
Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to the AV communication line wiring diagram. Refer to "WIRING DIAGRAM -COMM- ".

CAUTION:

If display has any error, self-diagnosis cannot start.
If AV communication between display and NAVI control unit has any error, self-diagnosis cannot start.

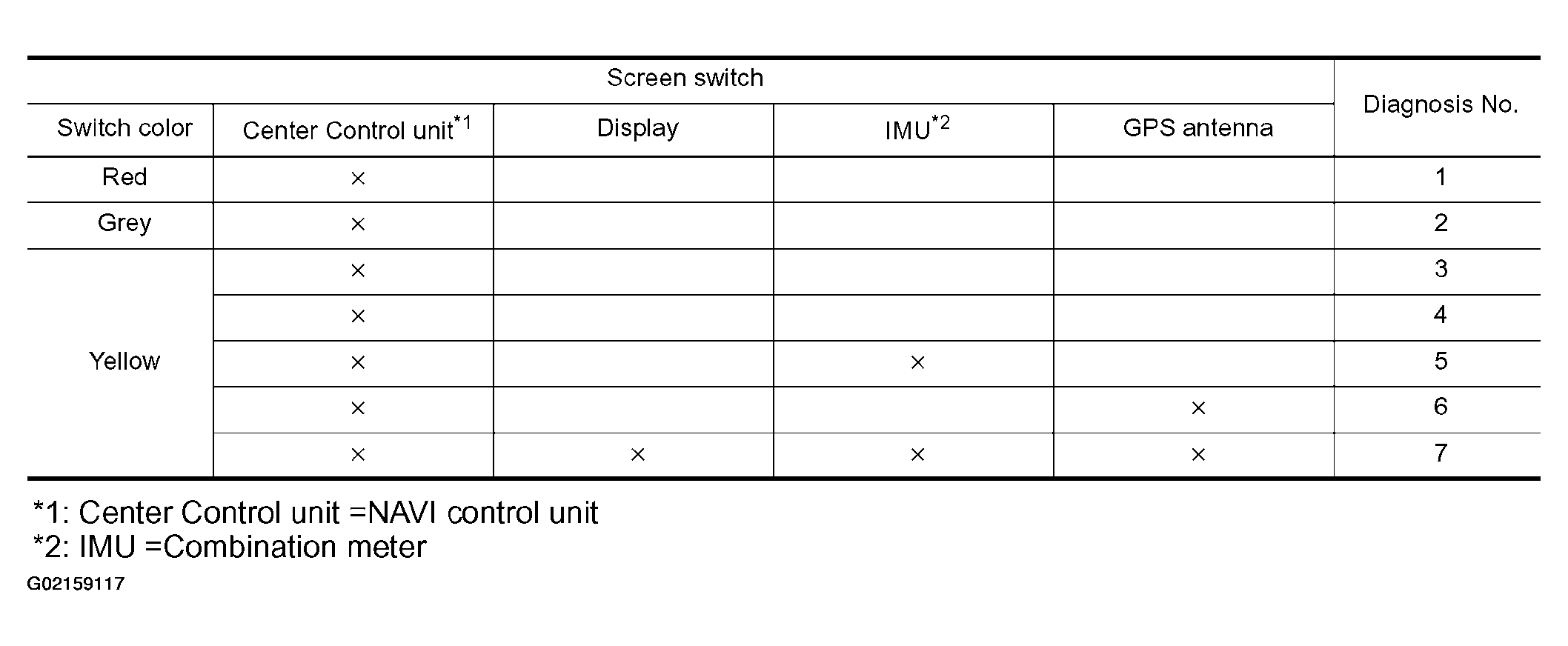

Fig 1: Screen Switch Quick Reference Table

Courtesy of NISSAN MOTOR CO., U.S.A.

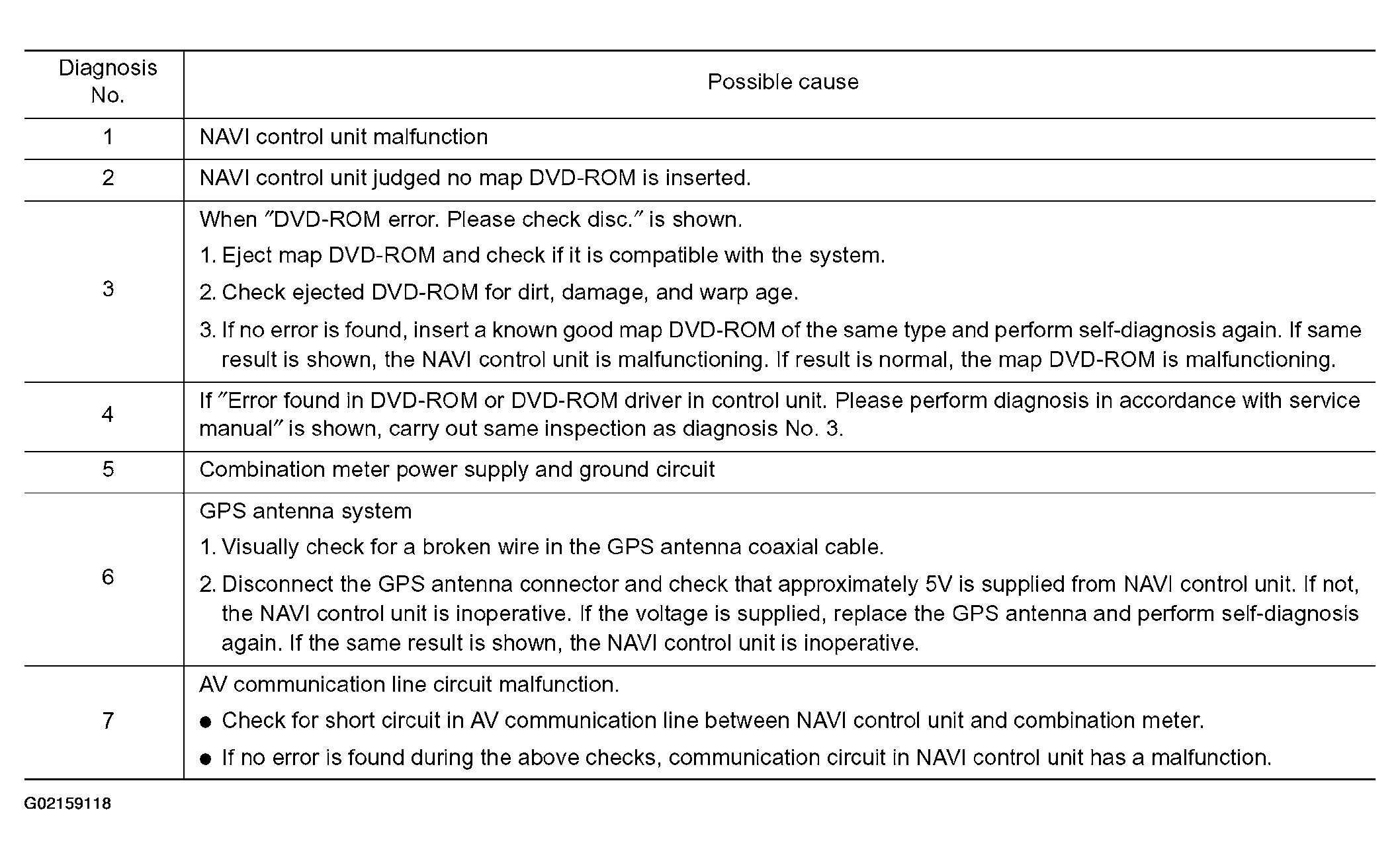

Fig 2: Self Diagnosis Codes Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Turn the ignition switch to OFF and perform self-diagnosis again.
