Diagnostic Procedure

WARNING: This page is about a different variant/trim than selected.

SYMPTOM 1:

Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
Selector lever can be moved from "P" position with key in ON position and brake pedal released .
Selector lever can be moved from "P" position when key is removed from key cylinder .

SYMPTOM 2:

Ignition key cannot be removed when selector lever is set to "P" position. It can be removed when selector lever is set to any position except "P" .

CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.

OK or NG
1. OK: GO TO 2.
2. NG: Repair key interlock cable. Refer to "COMPONENTS ".
CHECK SELECTOR LEVER POSITION
Check selector lever position for damage.

OK or NG
1. OK: GO TO 3.
2. NG: Check selector lever. Refer to "CONTROL CABLE ADJUSTMENT ".
CHECK POWER SOURCE
Turn ignition switch to "OFF" position. (Do not start engine.)
- Check voltage between A/T device harness connector M44 terminal 7 (G) and ground.
  Voltage:

  Brake pedal depressed: Battery voltage

  Brake pedal released: 0V
OK or NG
1. OK: GO TO 5.
2. NG: GO TO 4.

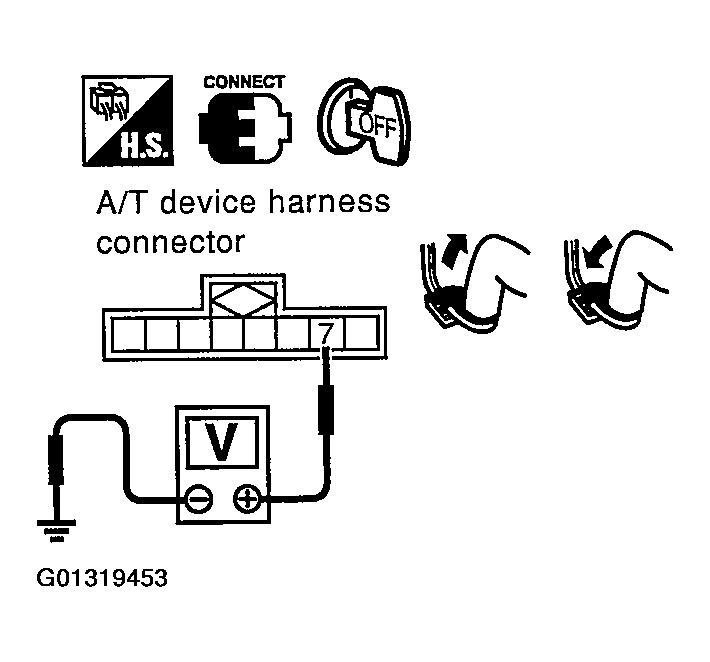

Fig 1: Checking Voltage Between A/T Device Harness Connector Terminal 7 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING ITEM
Check the following items.
1. Harness for open or short between fuse block (J/B) connector M1 terminal 12K and stop lamp switch harness connector M26 terminal 3.
2. Harness for open or short stop lamp switch harness connector M26 terminal 4 and A/T device harness connector M44 terminal 7 (G).
3. 10A fuse [10, located in the fuse block (J/B)].
4. Check continuity between stop lamp switch harness connector M26 terminals 3 (G) and 4 (G).

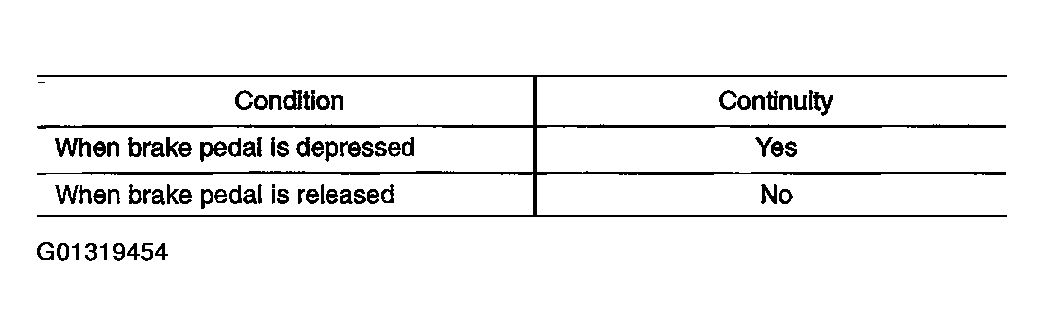

Fig 2: Continuity Between Stop Lamp Switch Harness Connector Terminals 3 And 4 Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

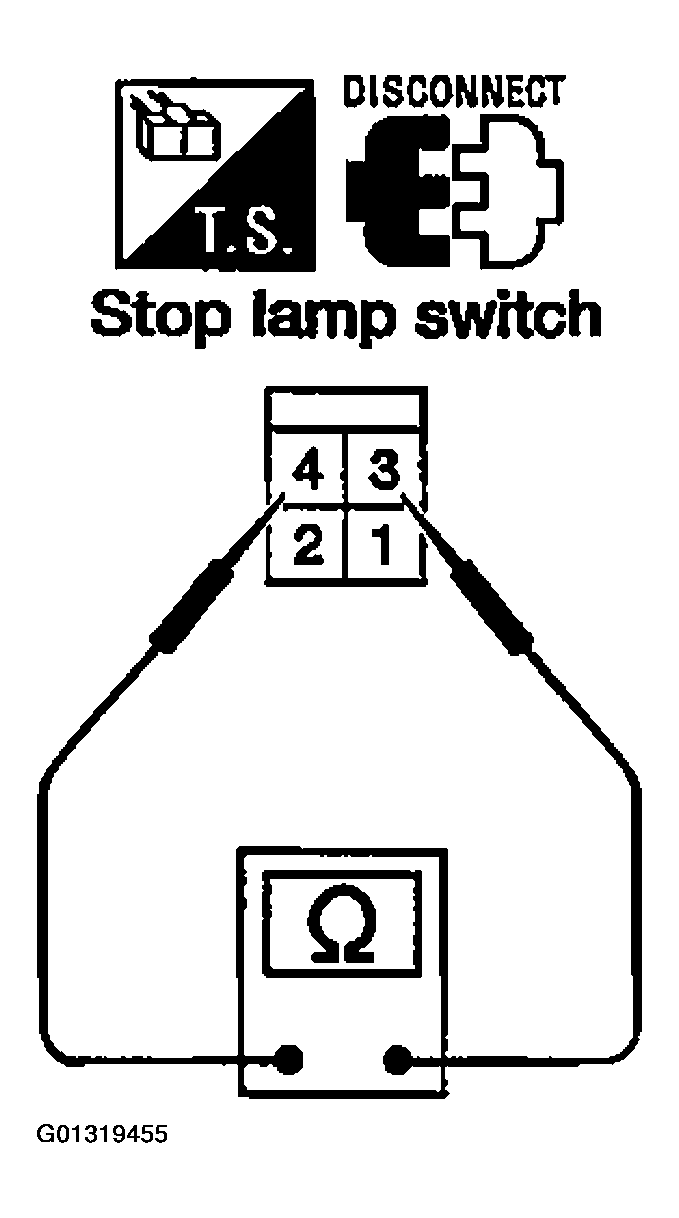

Fig 3: Checking Continuity Between Stop Lamp Switch Harness Connector Terminals 3 And 4
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal.

OK or NG
1. OK: GO TO 5.
2. NG: Repair or replace damaged parts.
CHECK GROUND CIRCUIT
1. Turn ignition switch to "OFF" position.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness M44 terminal 6 (B) and ground.

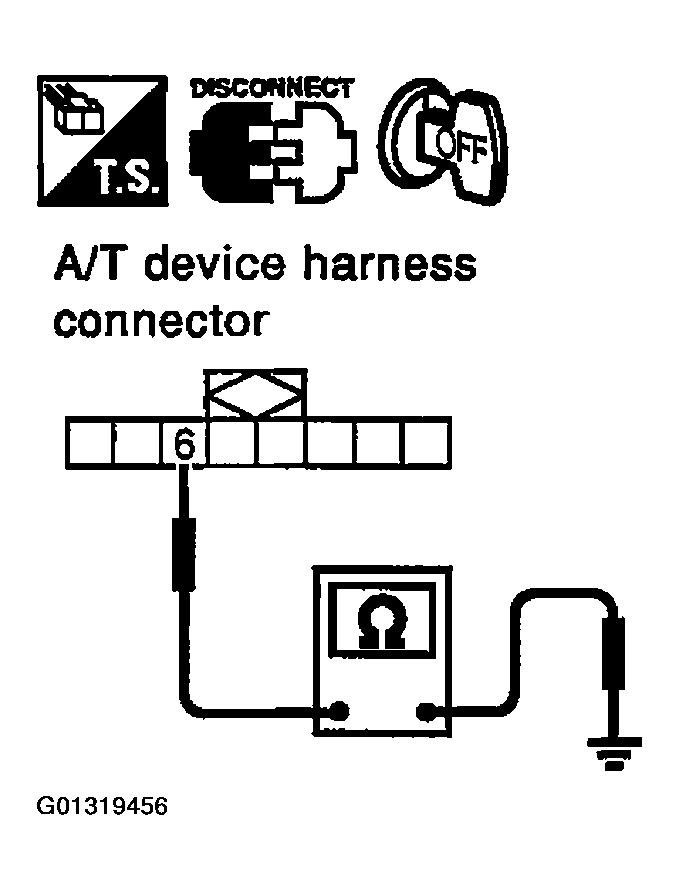

  Fig 4: Checking Continuity Between A/T Device Harness Terminal 6 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should exist

  Continuity should exist.

  If OK, check harness for short to power.
OK or NG
1. OK: GO TO 6.
2. NG: Repair open circuit in harness.
CHECK PARK POSITION SWITCH
Check continuity between A/T device harness connector M44 terminals 6 (B) and 7 (G).

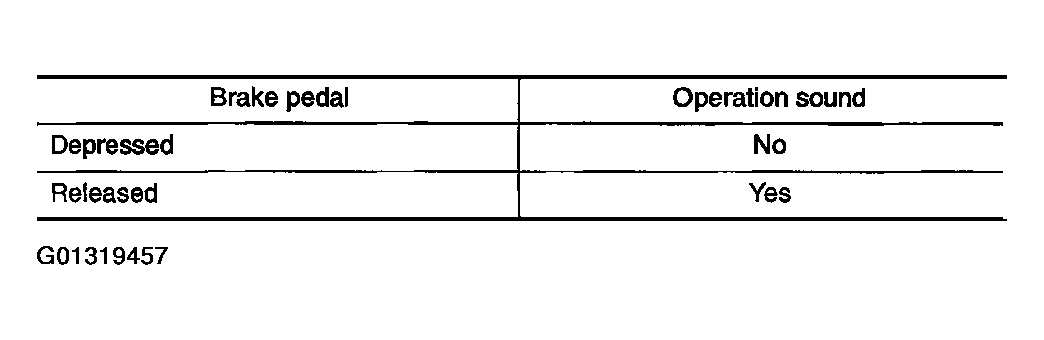

Fig 5: Brake Pedal Operation Sound Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

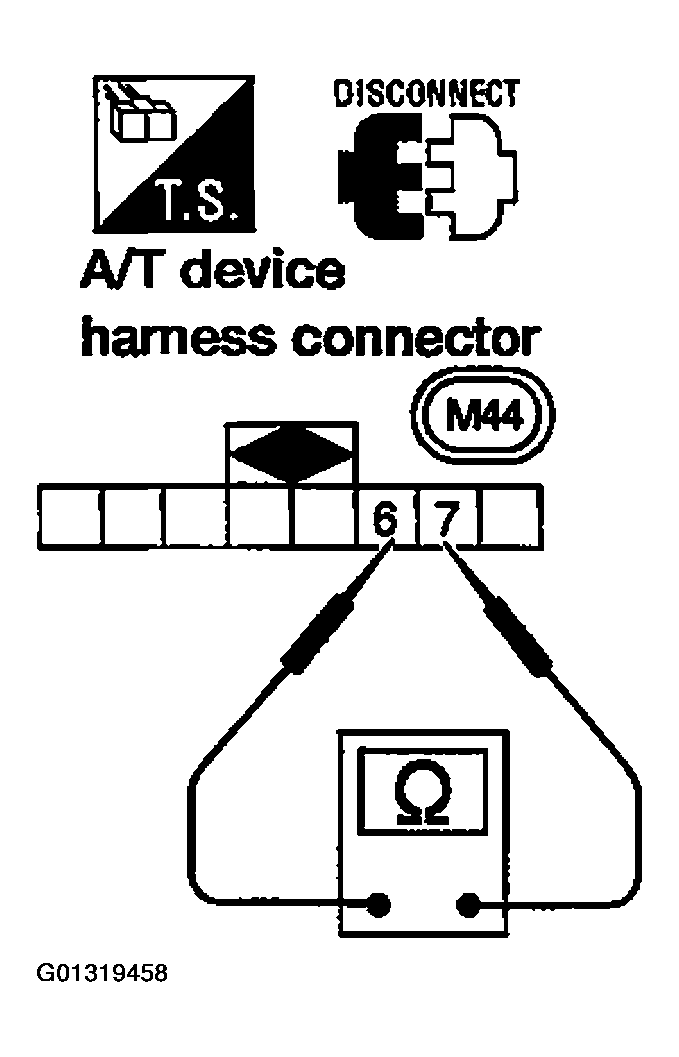

Fig 6: Checking Continuity Between A/T Device Harness Connector Terminals 6 And 7
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 7.
2. NG: Replace park position switch.
CHECK SHIFT LOCK SOLENOID
1. Connect A/T device harness connector.
2. Turn ignition switch to "ON" position.
3. Check operation sound.

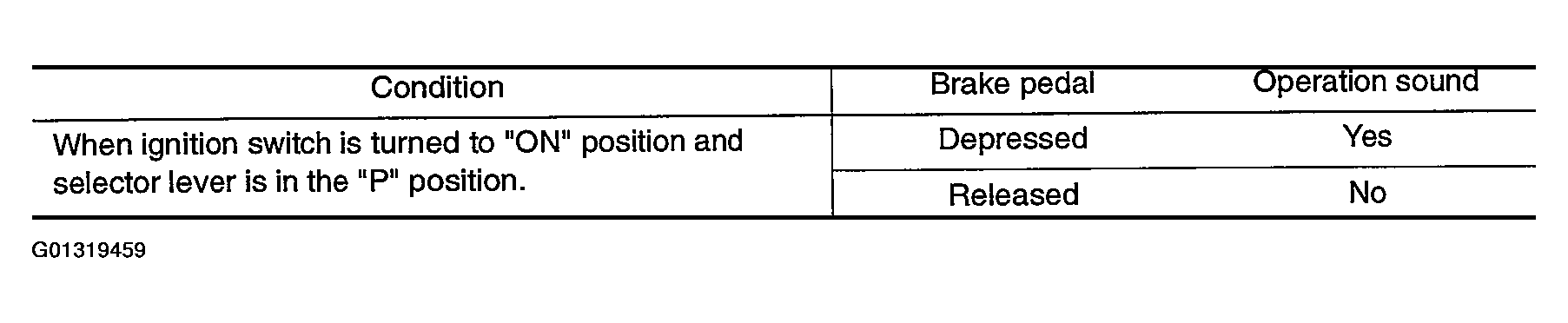

  Fig 7: Brake Pedal Operation Condition Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 8.
2. NG: Replace shift lock solenoid.
CHECK SHIFT LOCK OPERATION
1. Reconnect shift lock harness connector.
2. Turn ignition switch from "OFF" to "ON" position. (Do not start engine.)
3. Recheck shift lock operation.
OK or NG
1. OK: INSPECTION END
2. NG: GO TO.9
CHECK A/T DEVICE INSPECTION
1. Perform A/T device input/output signal inspection test.
2. If NG, recheck harness connector connection.
OK or NG
1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
