Control Valve Assembly: Assembly

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

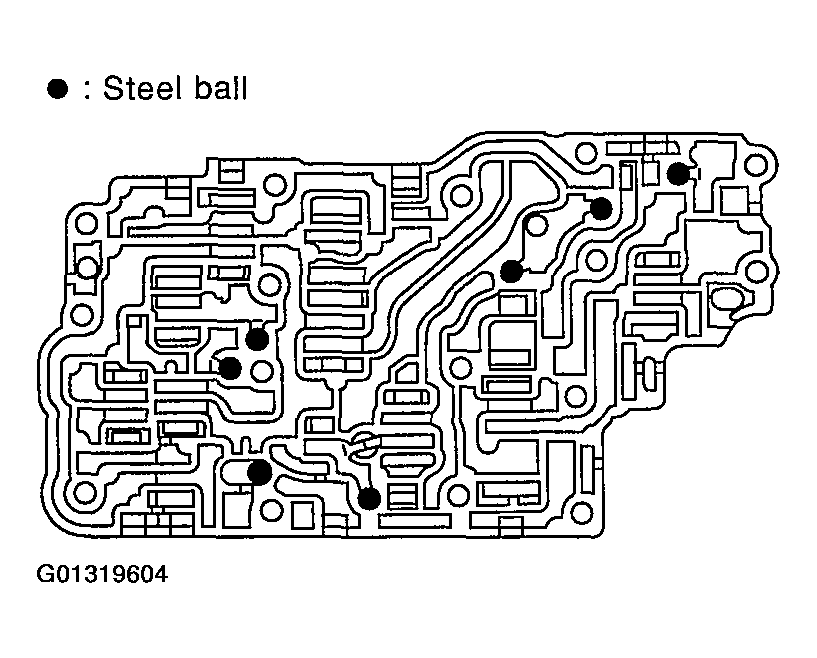

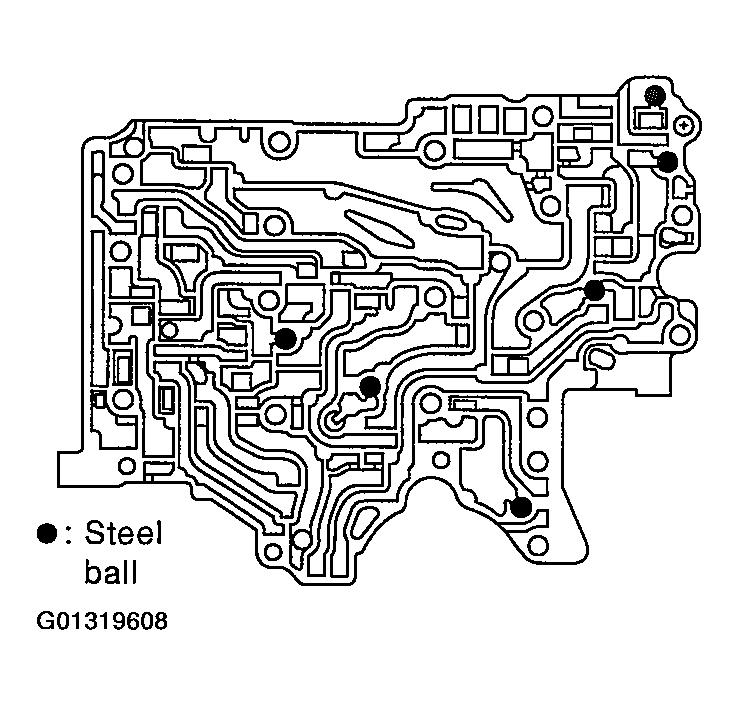

Fig 1: Identifying Proper Position Of Steel Balls
Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.

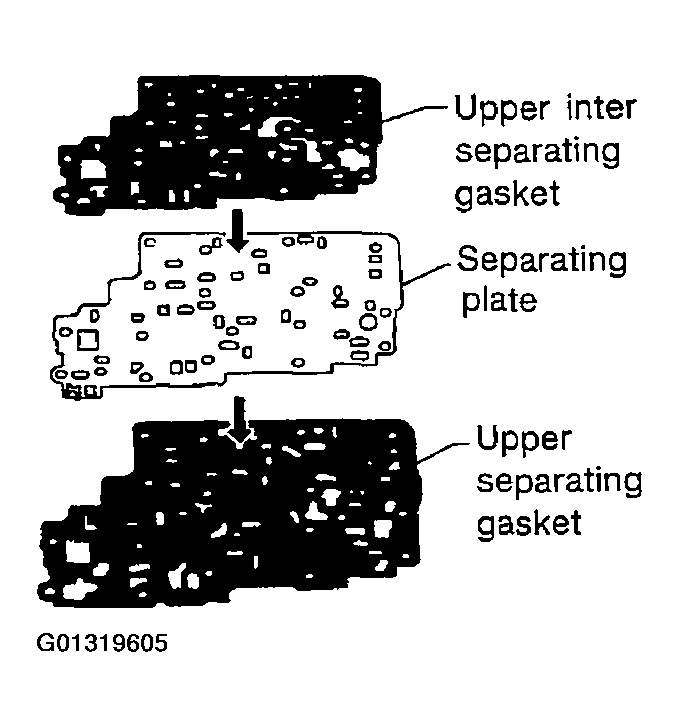

   Fig 2: Installing Upper Separating Gasket, Upper Inter Separating Gasket And Upper Separating Plate

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Always use new gaskets.
3. Install reamer bolts F  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.

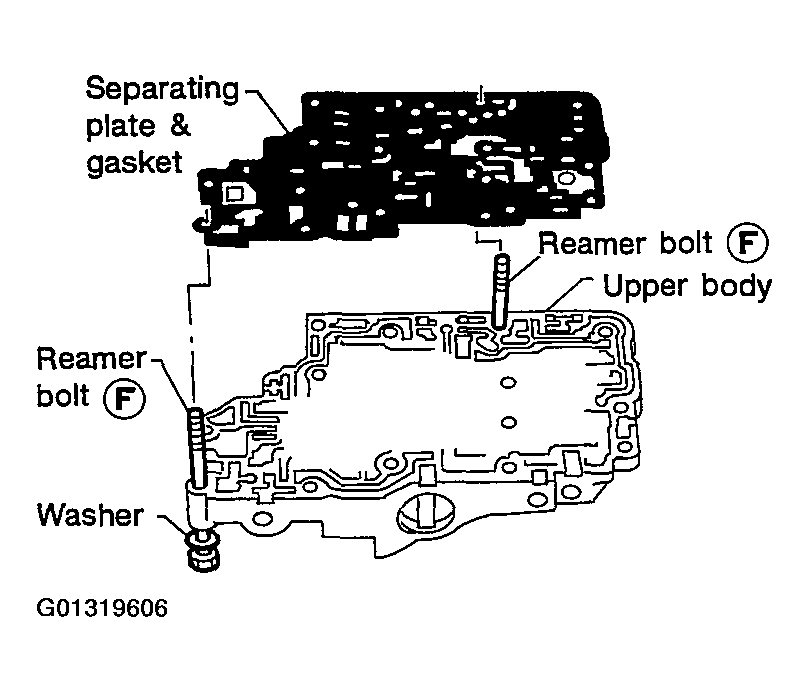

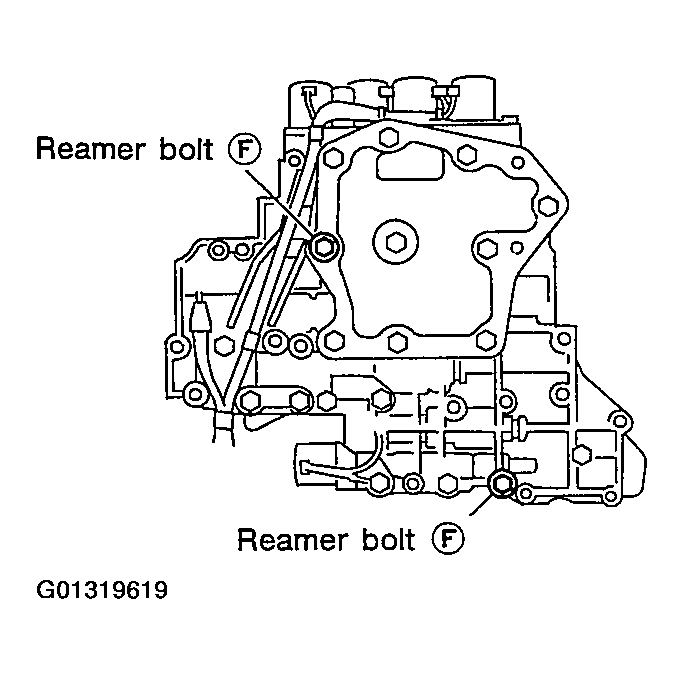

   Fig 3: Installing Reamer Bolts From Bottom Of Upper Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install pilot filter.

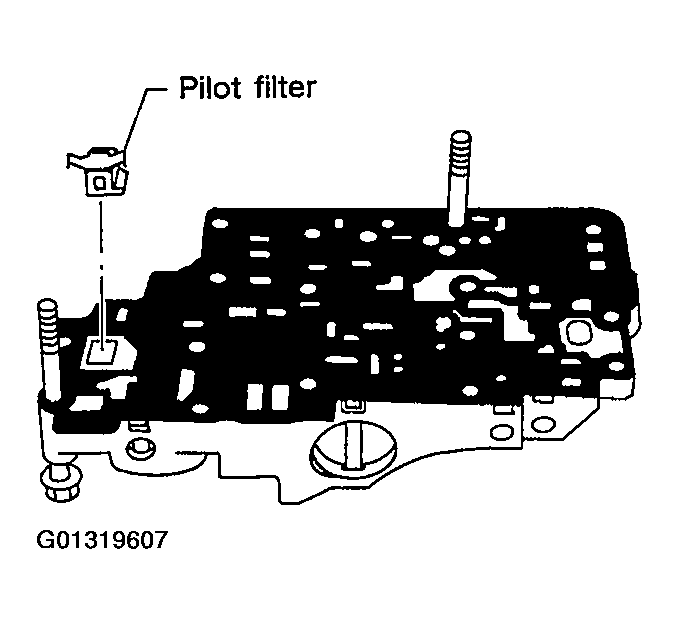

   Fig 4: Installing Pilot Filter

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Place inter body as shown in the illustration. Install steel balls in their proper positions.
   Fig 5: Identifying Proper Position Of Steel Balls

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install inter body on upper body using reamer bolts F  as guides.

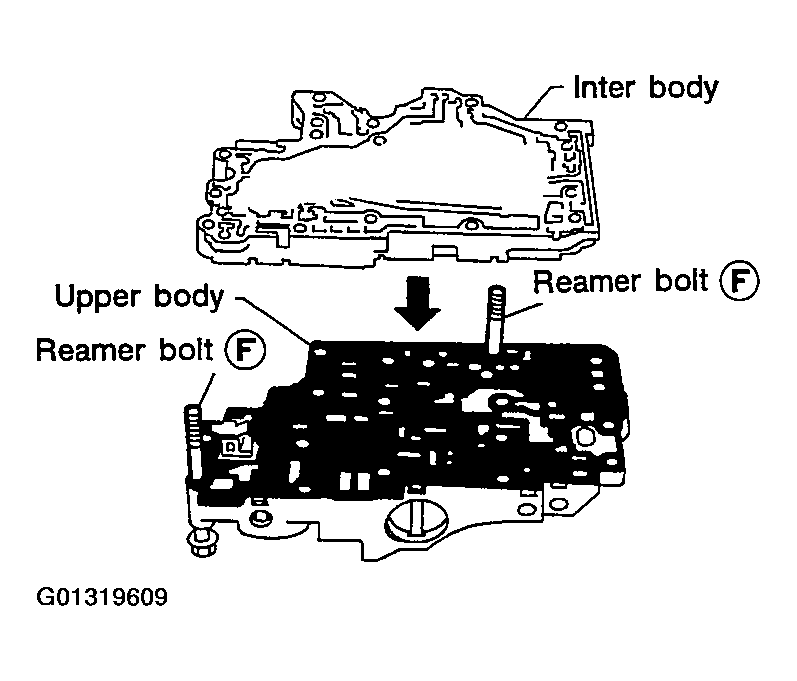

   Fig 6: Installing Inter Body On Upper Body Using Reamer Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Be careful not to dislocate or drop steel balls.
7. Install steel balls, oil cooler relief valve springs and T/C pressure holding spring in their proper positions in lower body.

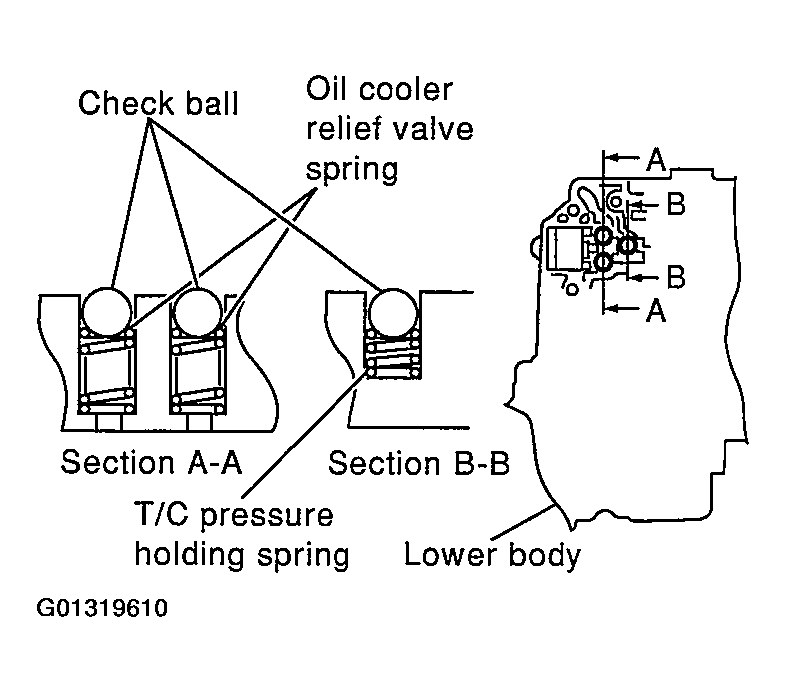

   Fig 7: Installing Steel Balls, Oil Cooler Relief Valve Springs And T/C Pressure Holding Spring

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. Install lower separating gasket, inter separating gasket and lower separating plate in order shown in the illustration.

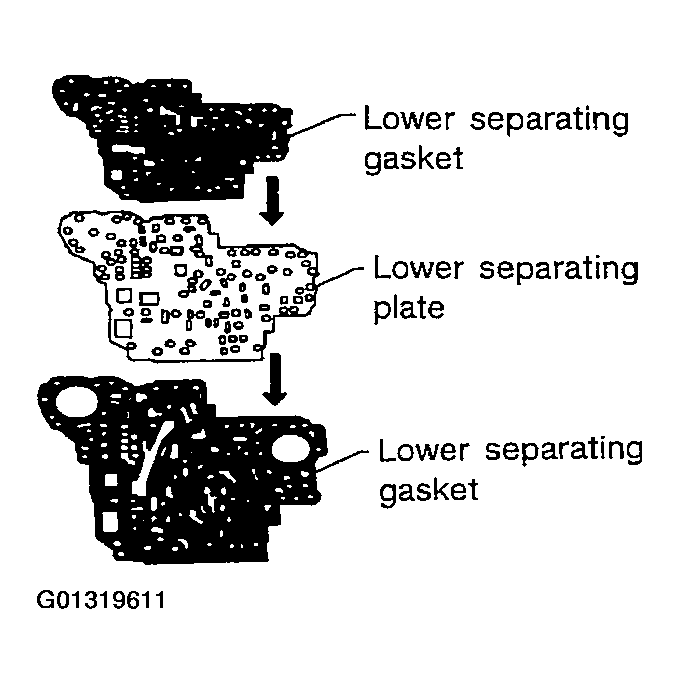

   Fig 8: Installing Lower Separating Gasket, Inter Separating Gasket And Lower Separating Plate

   Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install bolts E  from bottom of lower body. Using bolts E  as guides, install separating plate and gaskets as a set.

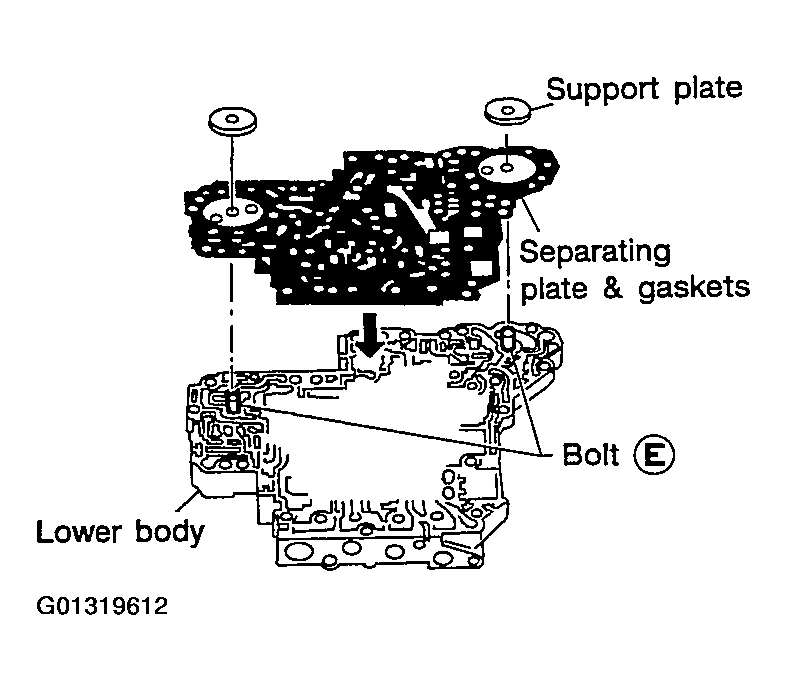

   Fig 9: Installing Bolts From Bottom Of Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. Install support plates on lower body.
11. Install lower body on inter body using reamer bolts F  as guides and tighten reamer bolts F  slightly.

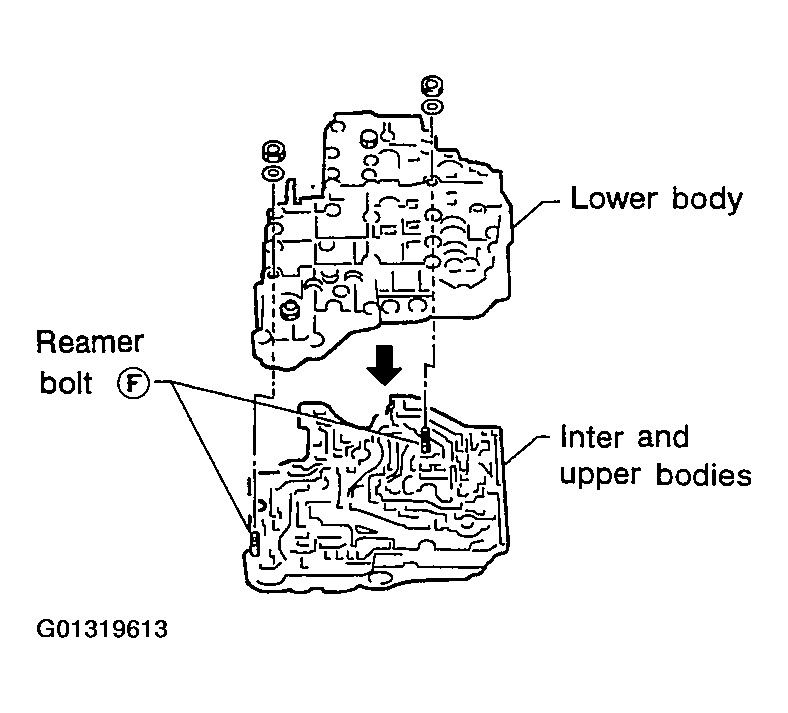

    Fig 10: Installing Lower Body On Inter Body Using Reamer Bolts

    Courtesy of NISSAN MOTOR CO., U.S.A.

• Apply ATF to O-rings.

Bolt length, number and location:

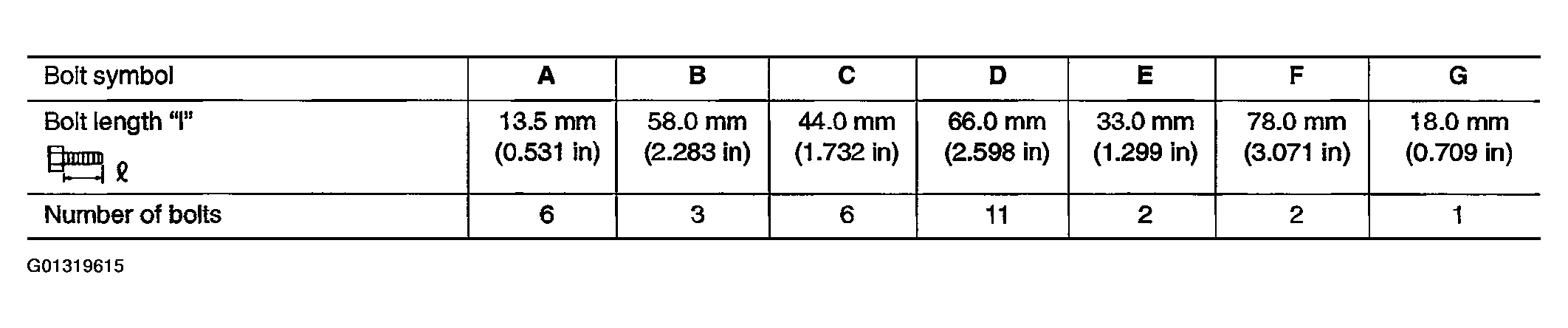

Fig 12: Identifying Bolt Length And Number Of Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Bolts Of Control Valve Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install and tighten bolts B  to specified torque.

   : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

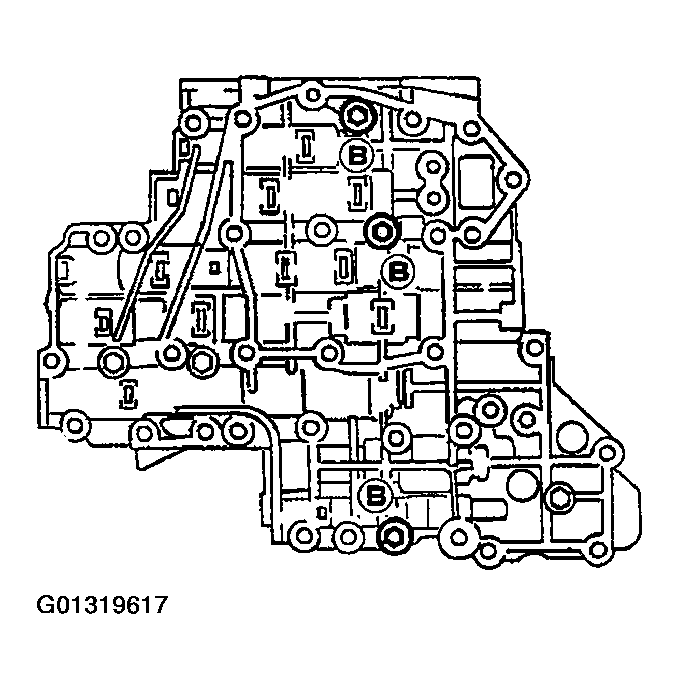

   Fig 14: Identifying Bolt "B" Locations

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install solenoid valve assembly and line pressure solenoid valve to lower body.

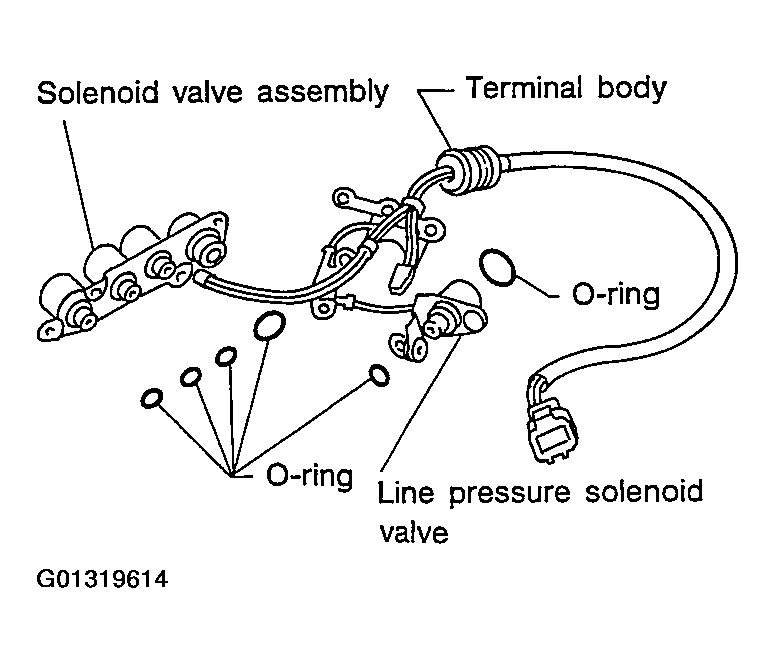

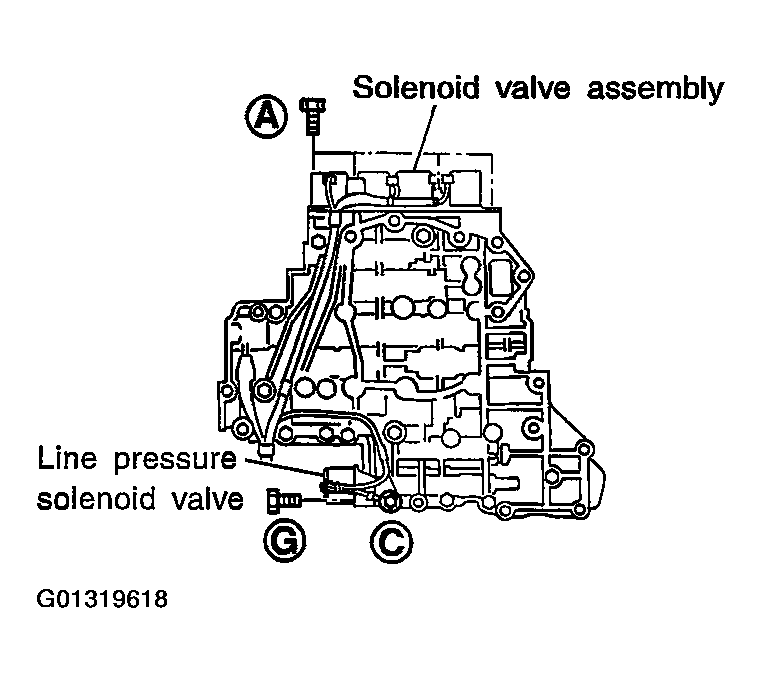

   Fig 15: Installing Solenoid Valve Assembly And Line Pressure Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove reamer bolts F  and set oil strainer on control valve assembly.
   Fig 16: Removing Reamer Bolts And Setting Oil Strainer On Control Valve Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Reinstall reamer bolts F  from lower body side.
5. Tighten bolts A, C, D  and F  to specified torque.

   : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

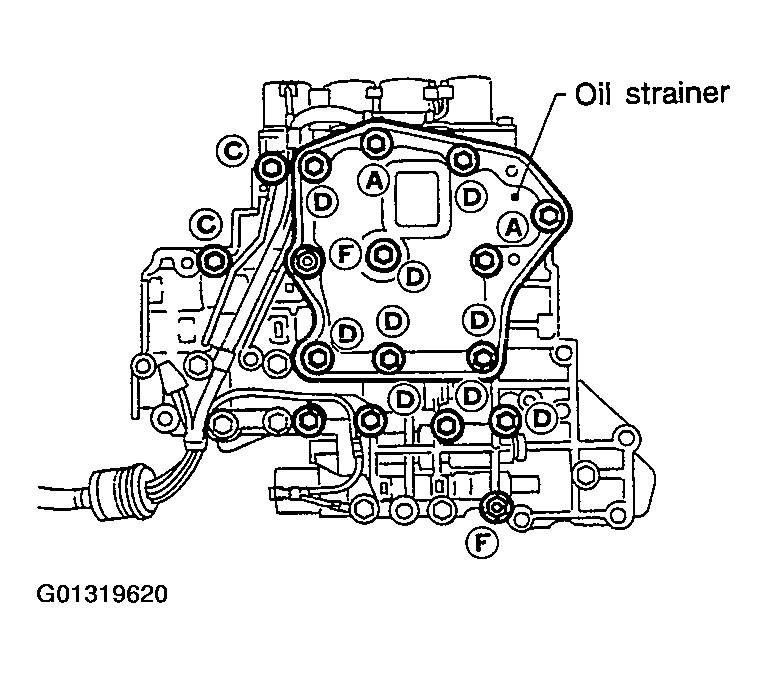

   Fig 17: Identifying Bolt Locations Of Valve Control Assembly (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Tighten bolts E  to specified torque.

   : 3.4 - 4.4 N.m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)

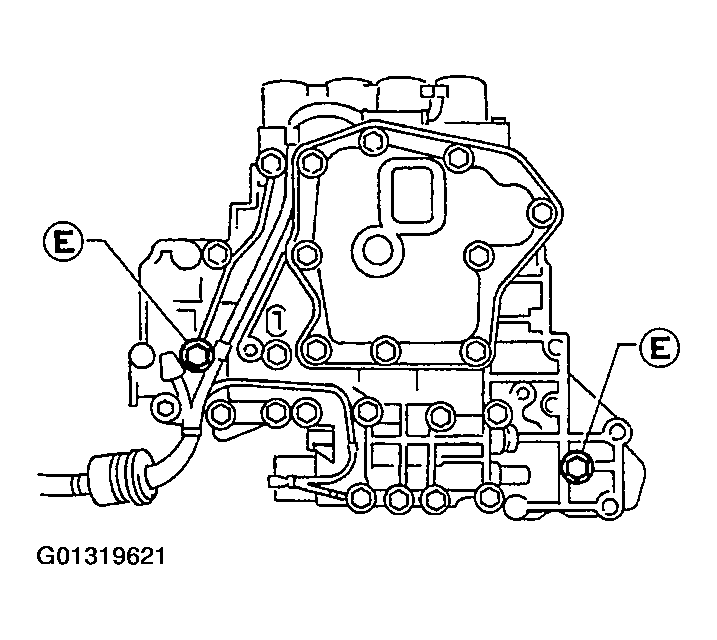

   Fig 18: Identifying Bolt Locations Of Valve Control Assembly (2 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
