A/T Fluid Temperature Sensor
WARNING:
This page is about a different variant/trim than selected.
Refer to "
REMOVAL
".
Check resistance between two terminals while changing temperature as shown.

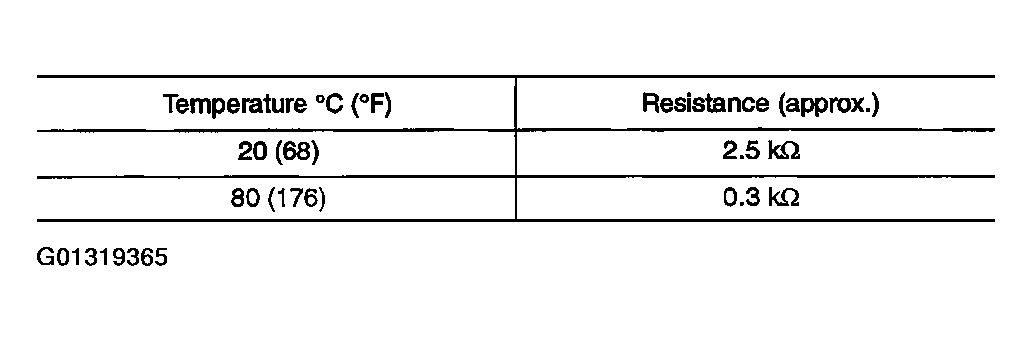

Fig 1: Temperature And Resistance Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

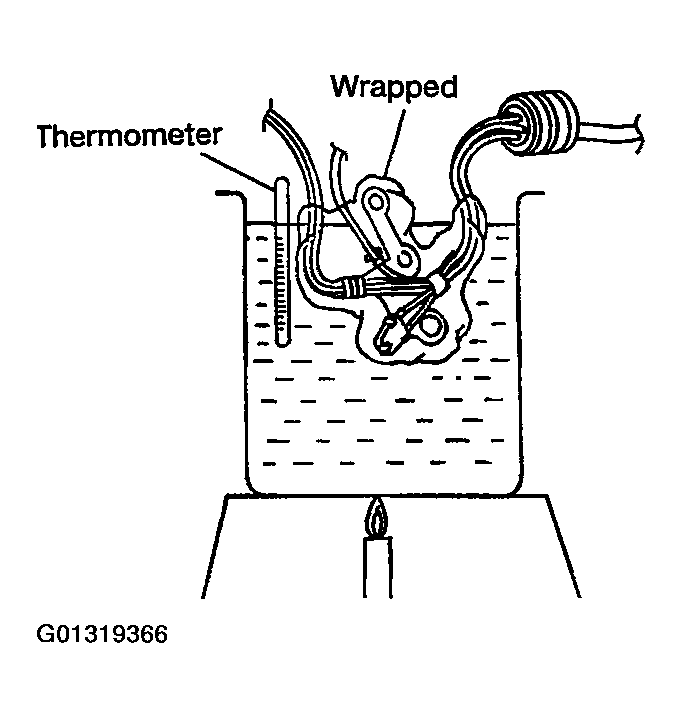

Fig 2: Heating A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
