Diagnostic Trouble Code (DTC) Confirmation Procedure

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

1. Start engine.
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

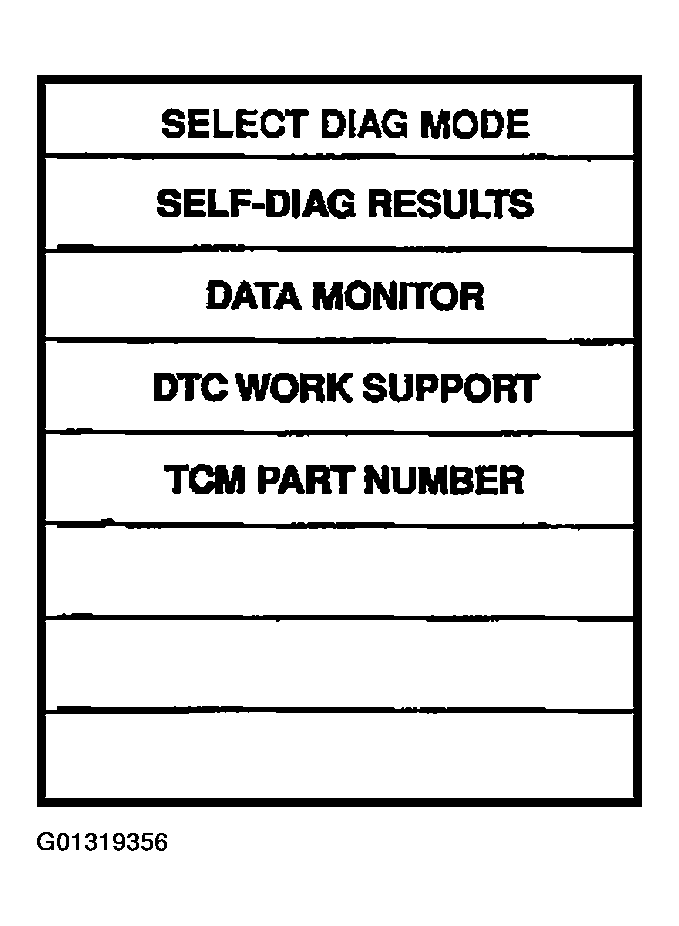

Fig 1: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: CONSULT-II Display - A/T
Courtesy of NISSAN MOTOR CO., U.S.A.
3. Drive vehicle under the following conditions:

   Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).

Without CONSULT-II

1. Start engine.
2. Drive vehicle under the following conditions:

   Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).

3. Perform self-diagnosis.

   Refer to TCM Self-diagnostic Procedure (No Tools), "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

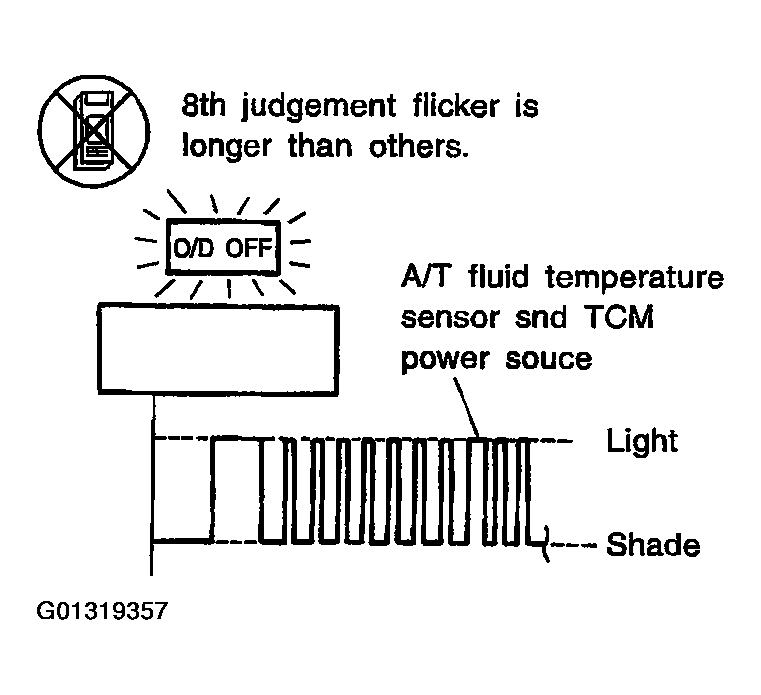

   Fig 3: Identifying A/T Fluid Temperature Sensor Blinking Pattern

   Courtesy of NISSAN MOTOR CO., U.S.A.
