Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch "ON" and select "DATA MONITOR" mode for A/T with CONSULT-II.

Fig 1: CONSULT-II Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

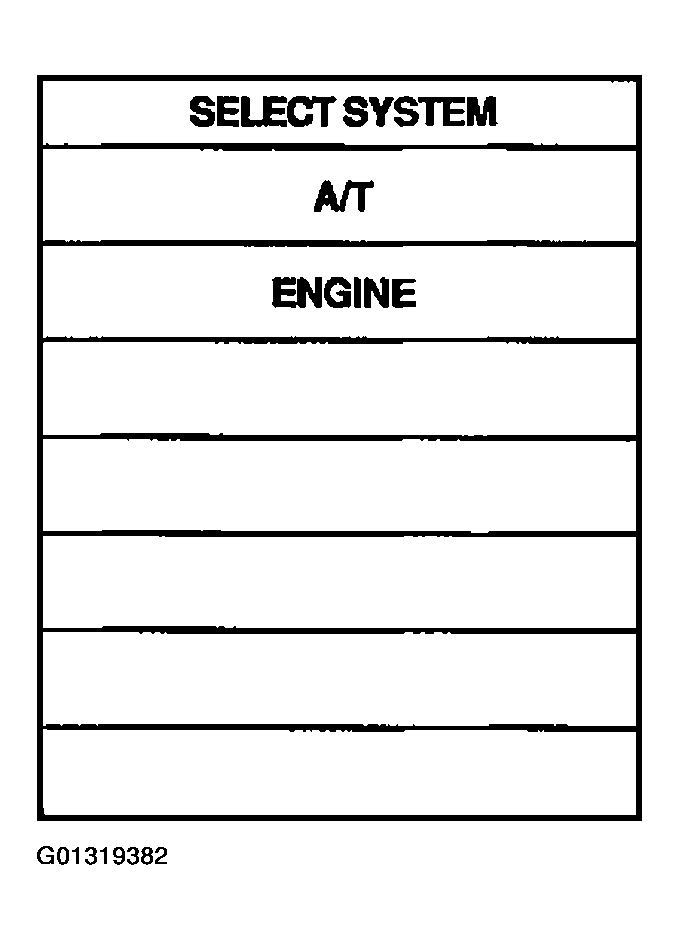

Fig 2: CONSULT-II Display - A/T

Courtesy of NISSAN MOTOR CO., U.S.A.

Start engine.
Run engine for at least 2 seconds at idle speed.
