With Consult-II

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

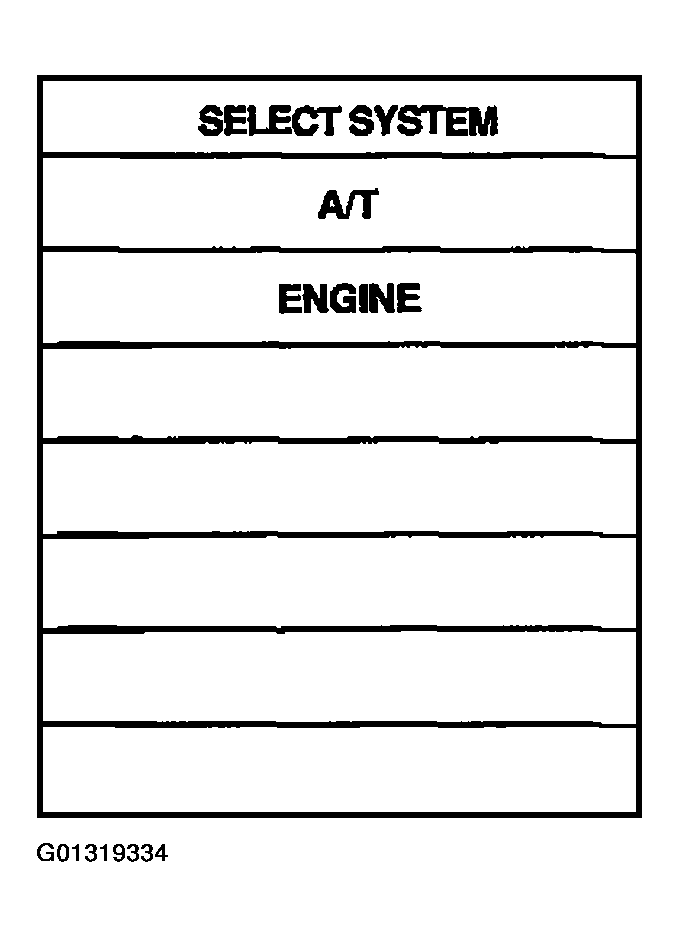

Fig 1: CONSULT-II Display - A/T
Courtesy of NISSAN MOTOR CO., U.S.A.

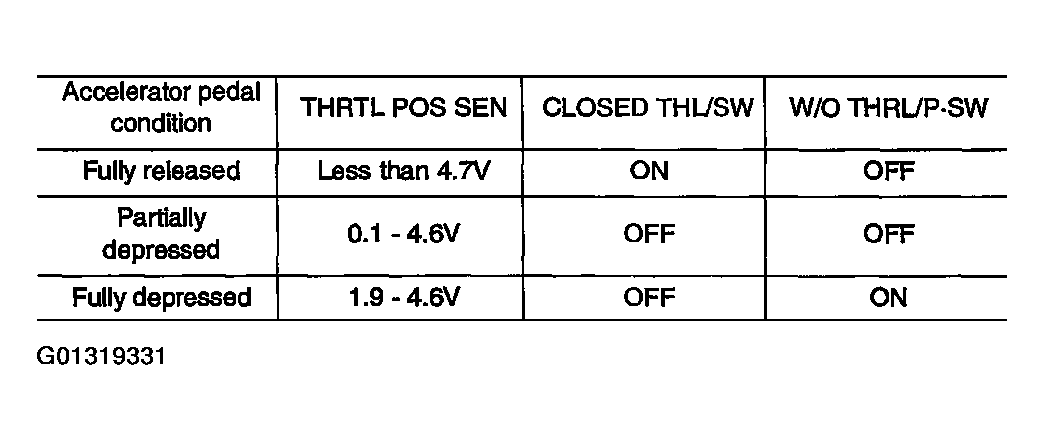

Fig 2: Accelerator Pedal Condition And Throttle Position Sensor Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ". If the check result is OK, go to following step.
Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

Fig 3: CONSULT-II Display- DATA MONITOR

G01319333

Courtesy of NISSAN MOTOR CO., U.S.A.

Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: Approximately 3V or less

Selector lever: D position (O/D ON)

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position (O/D ON)

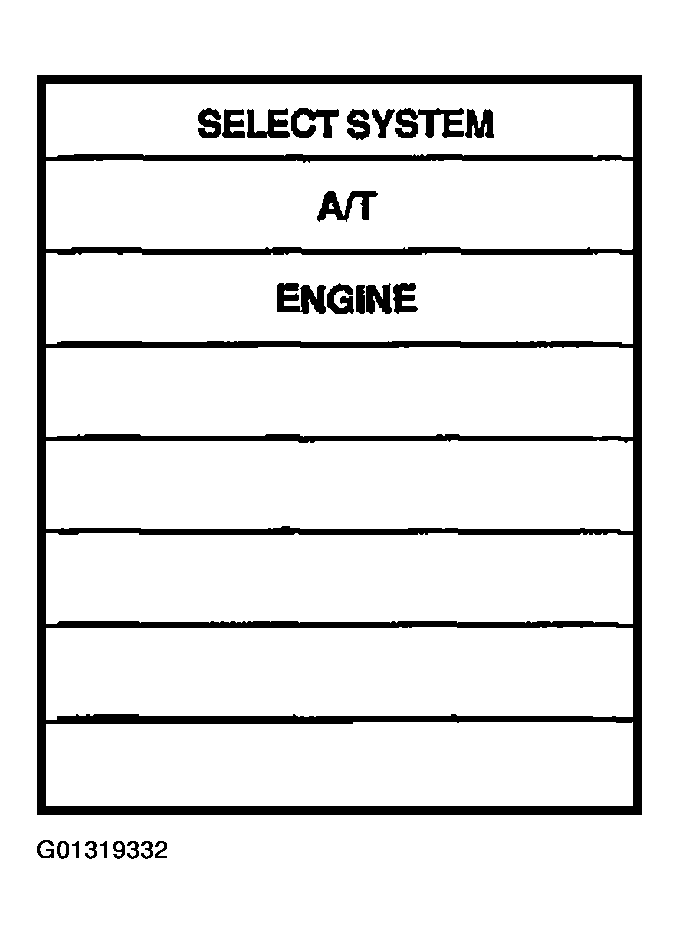

Fig 4: CONSULT-II Display - A/T
Courtesy of NISSAN MOTOR CO., U.S.A.

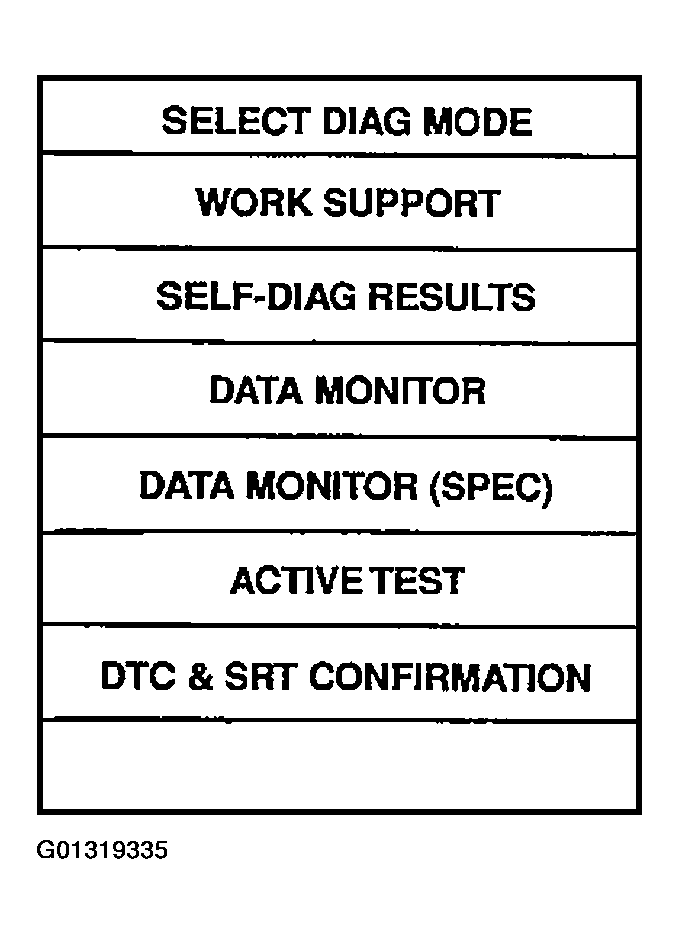

Fig 5: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.
