CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON position. (Do not start engine.)
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. The "CAN COMM CIRCUIT" is detected.

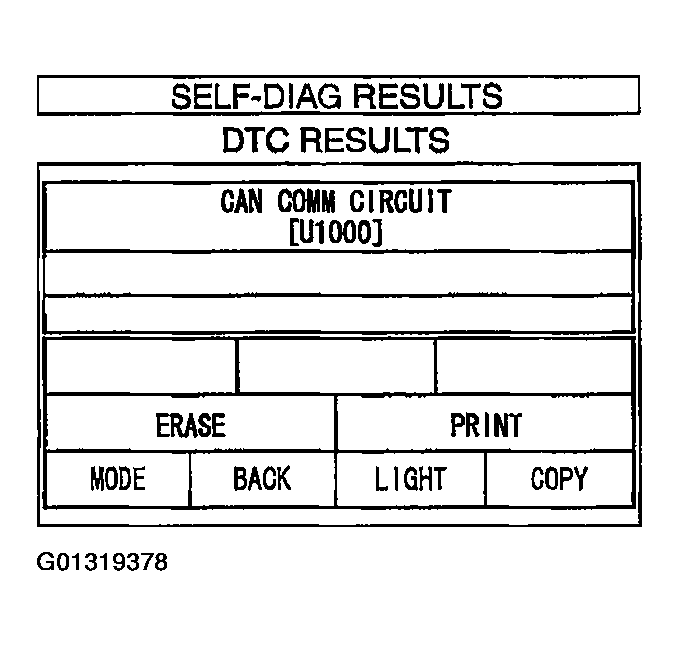

Fig 1: CONSULT-II Display - CAN COMM CIRCUIT
Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No
1. Yes: Print out CONSULT-II screen, GO TO 2.
2. No: INSPECTION END .
CHECK CAN COMMUNICATION SIGNALS
With CONSULT-II
1. Turn ignition switch to ON position. (Do not start engine.)
2. Select "CAN COMM SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
  1. Print out CONSULT-II screen, go to "CAN COMMUNICATION ".
