Key Interlock Cable: Components

WARNING: This page is about a different variant/trim than selected.

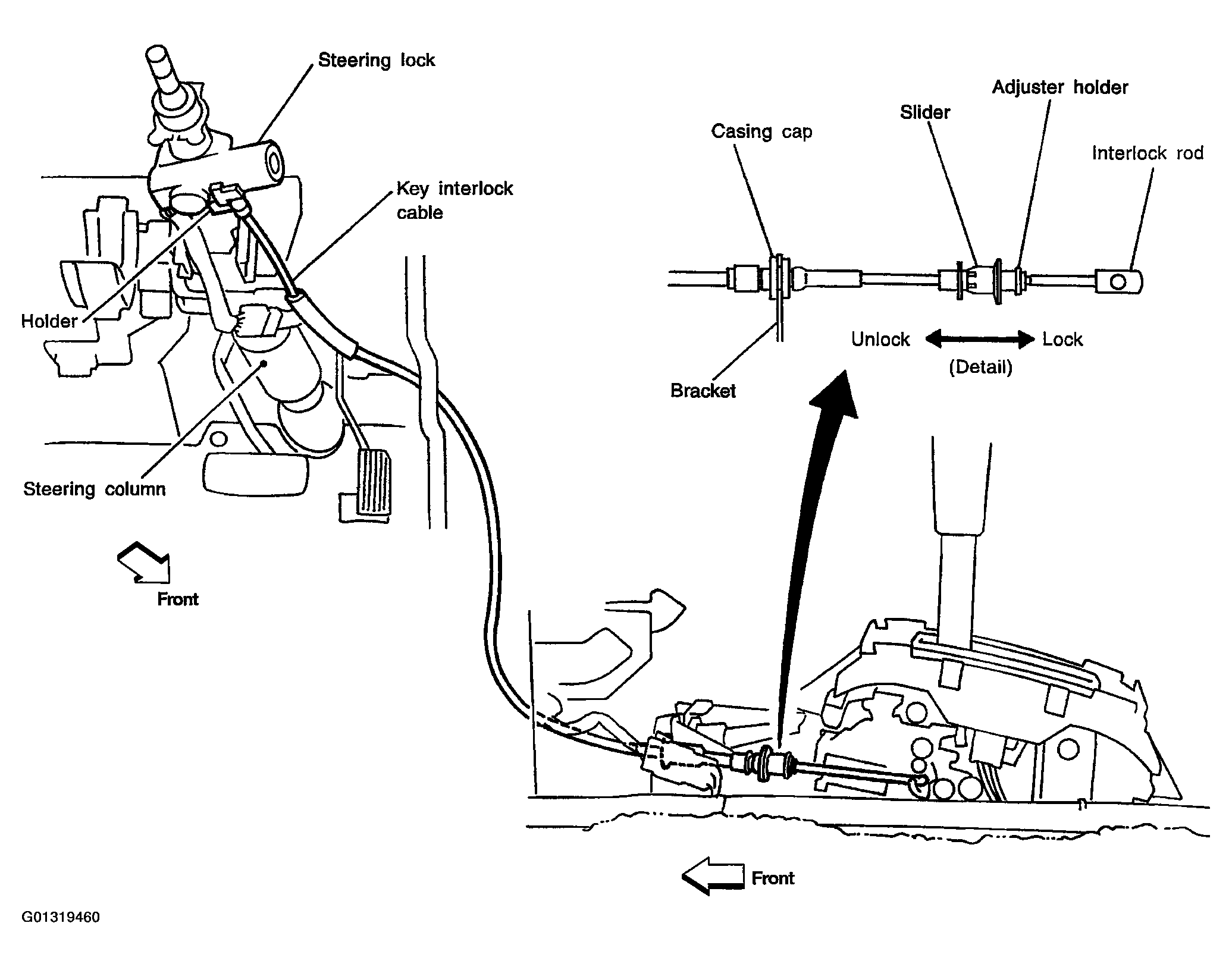

Fig 1: Identifying Components Of Key Interlock Cable

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adjacent parts.
After installing key interlock cable to control device, make sure that casing cap and bracket are firmly secured in their positions.
