CONSULT-II Setting Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch "OFF".
  2. Connect CONSULT-II to Data link connector which is located in left side lower dash panel.

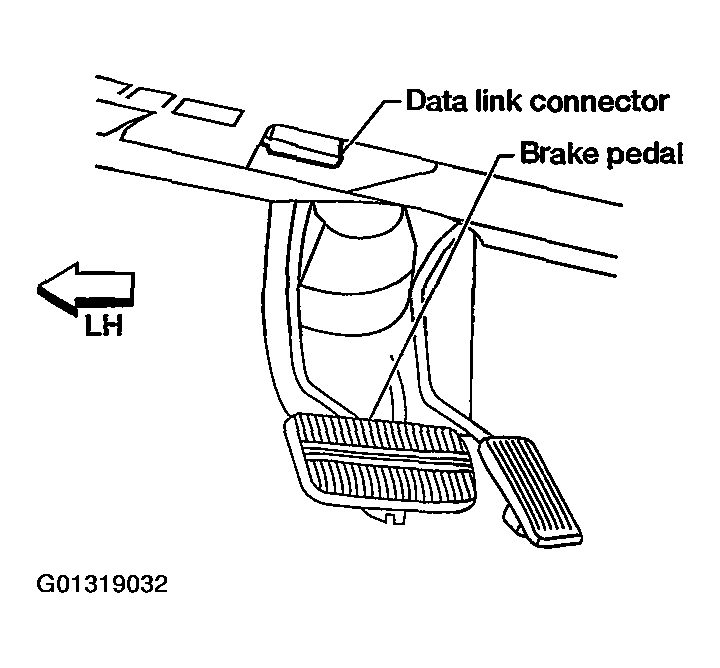

    Fig 1: Locating Data Link Connector
    G01319032Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START".

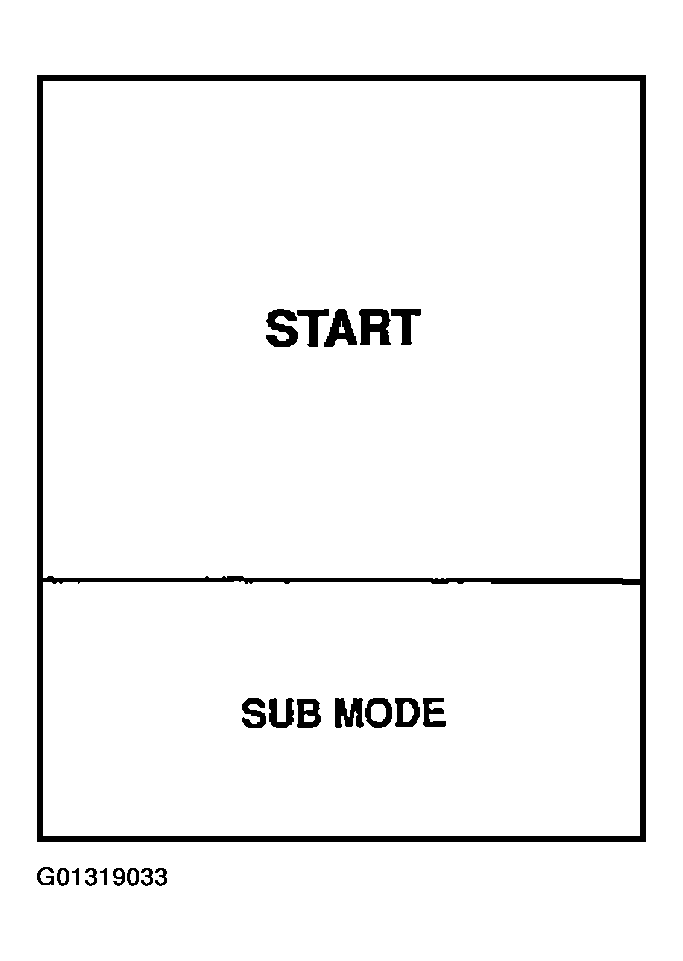

    Fig 2: CONSULT-II Display - START
    G01319033Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

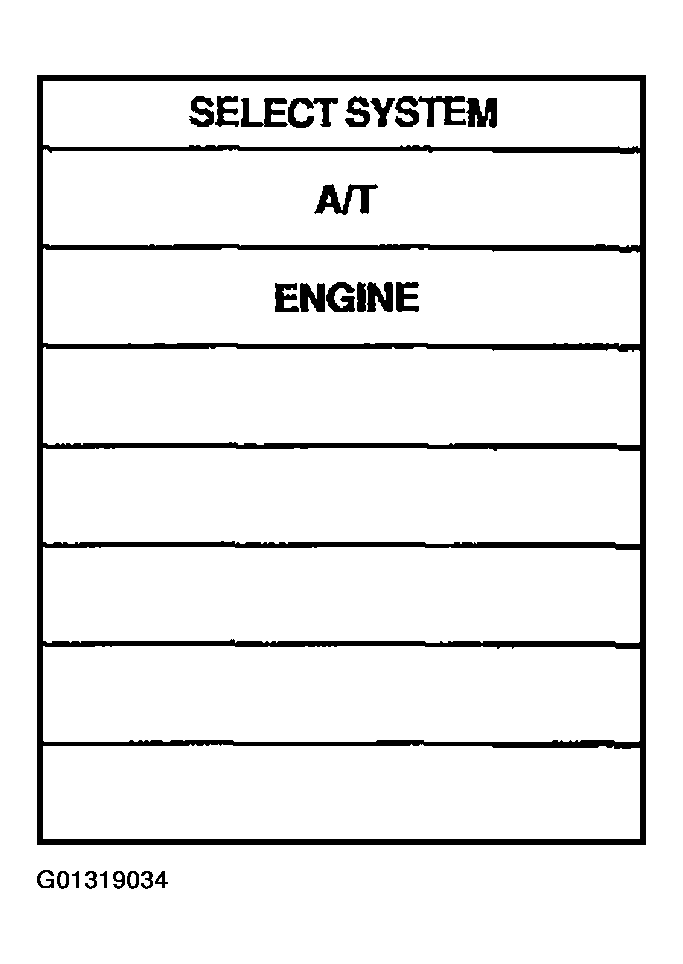

    Fig 3: CONSULT-II Display - A/T
    G01319034Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".

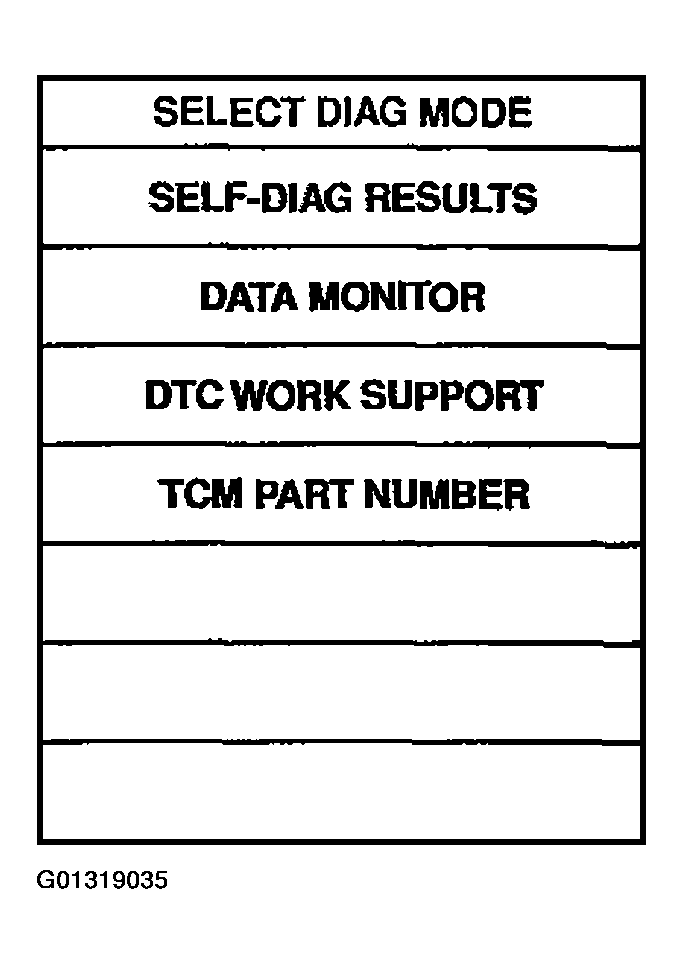

    Fig 4: CONSULT-II Display - DTC WORK SUPPORT
    G01319035Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1ST, 2ND, etc.).

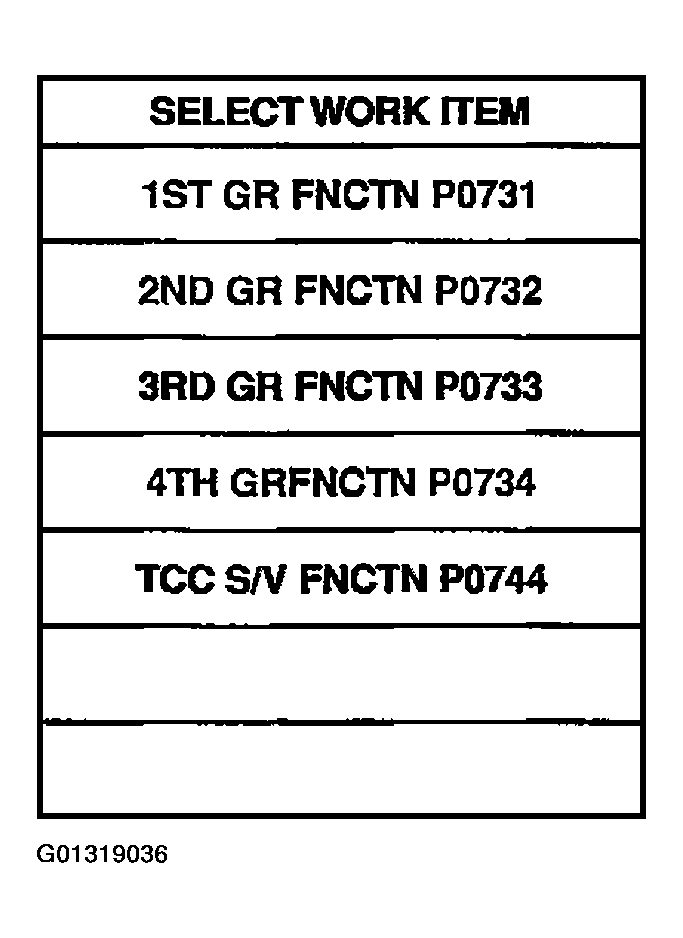

    Fig 5: CONSULT-II Display - Select Item Menu 1ST, 2ND,
    G01319036Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".

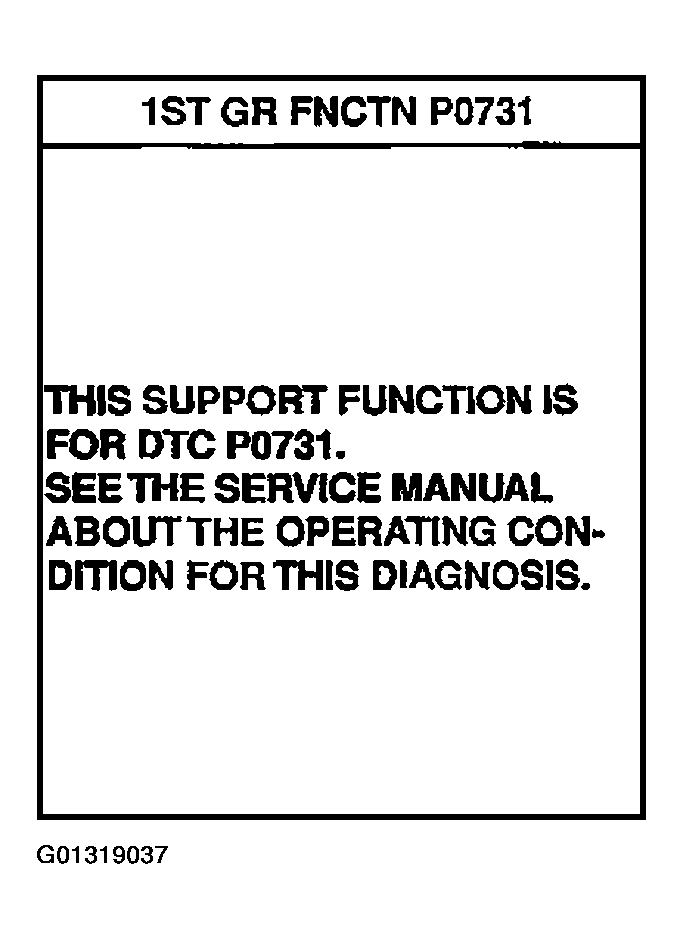

    Fig 6: CONSULT-II Display - START
    G01319037Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

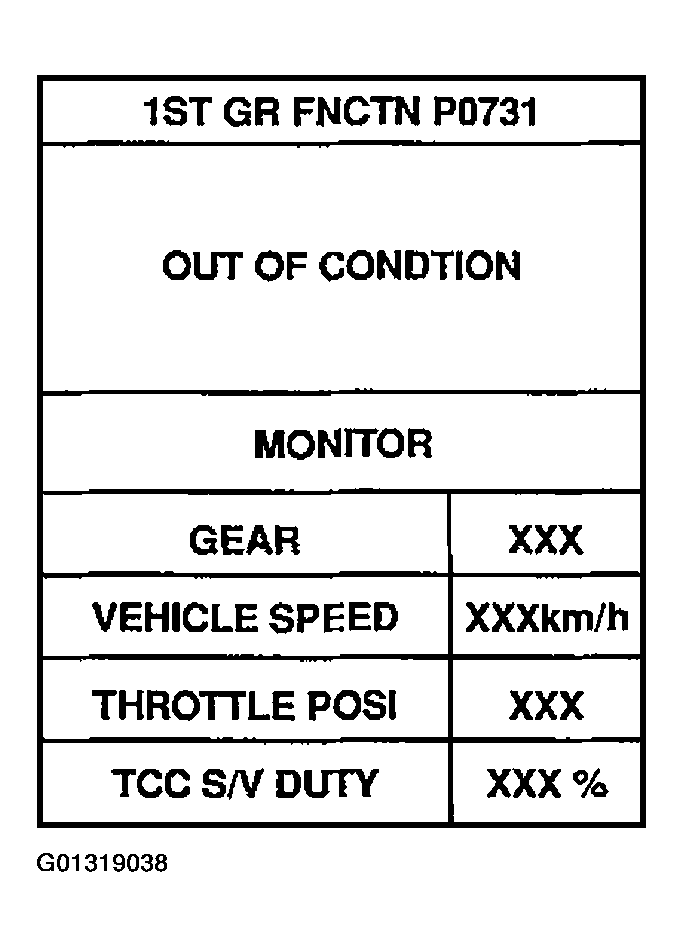

    Fig 7: CONSULT-II Display - DTC CONFIRMATION PROCEDURE
    G01319038Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

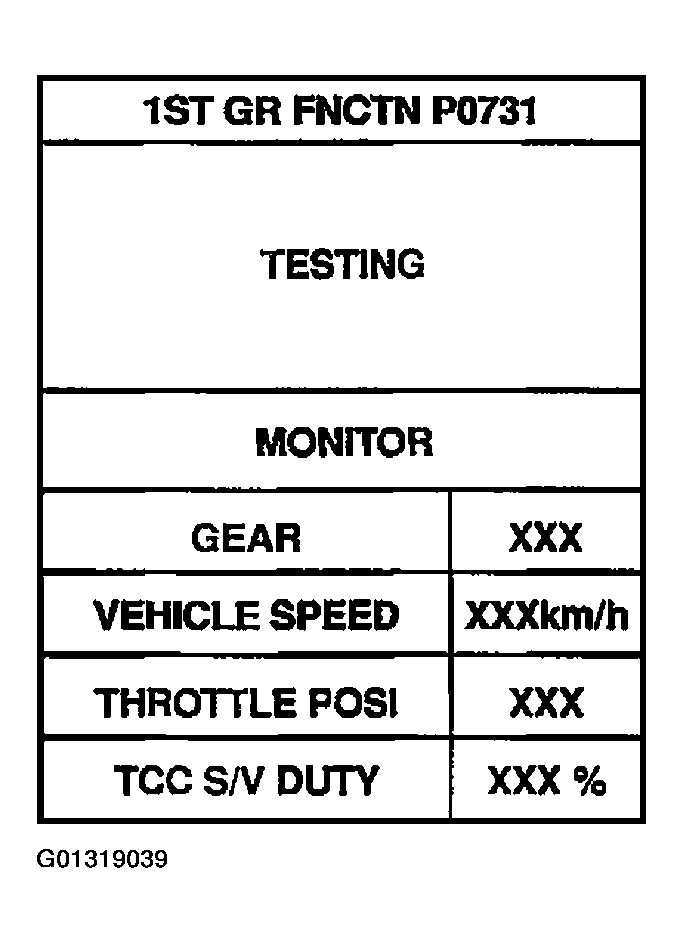

      Fig 8: CONSULT-II Display - TESTING
      G01319039Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

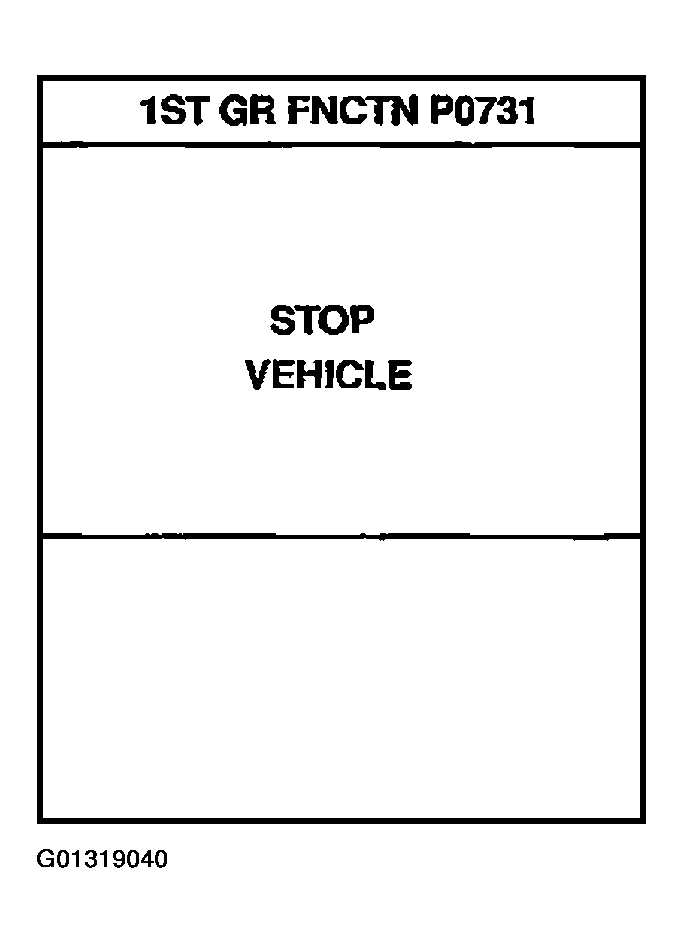

    Fig 9: CONSULT-II Display - STOP VEHICLE
    G01319040Courtesy of NISSAN MOTOR CO., U.S.A.

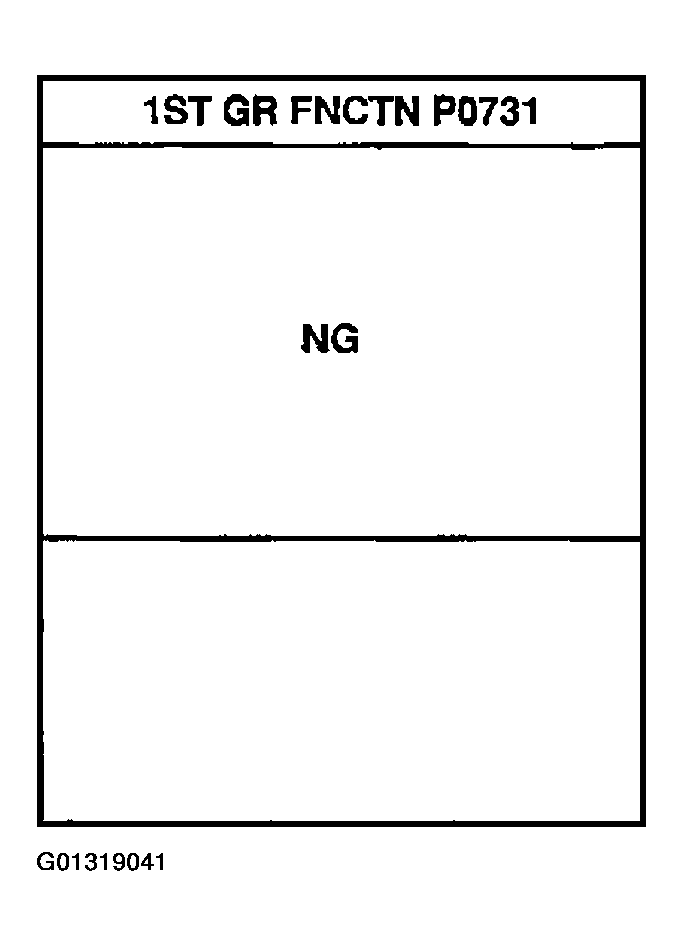

    Fig 10: CONSULT-II Display - NG
    G01319041Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

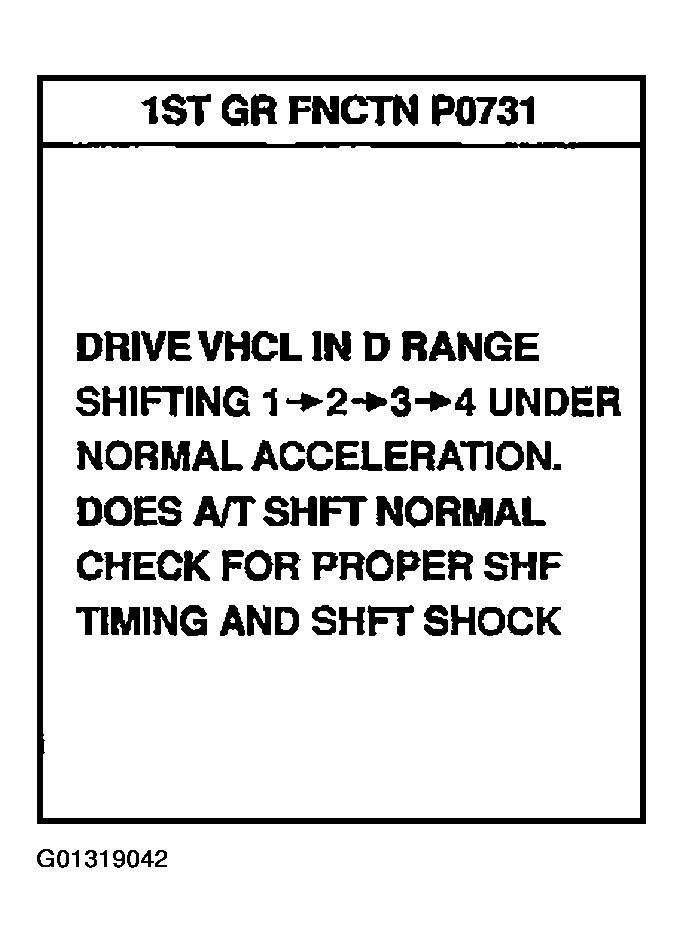

    Fig 11: CONSULT-II Display - Instructions (1 Of 2)
    G01319042Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".

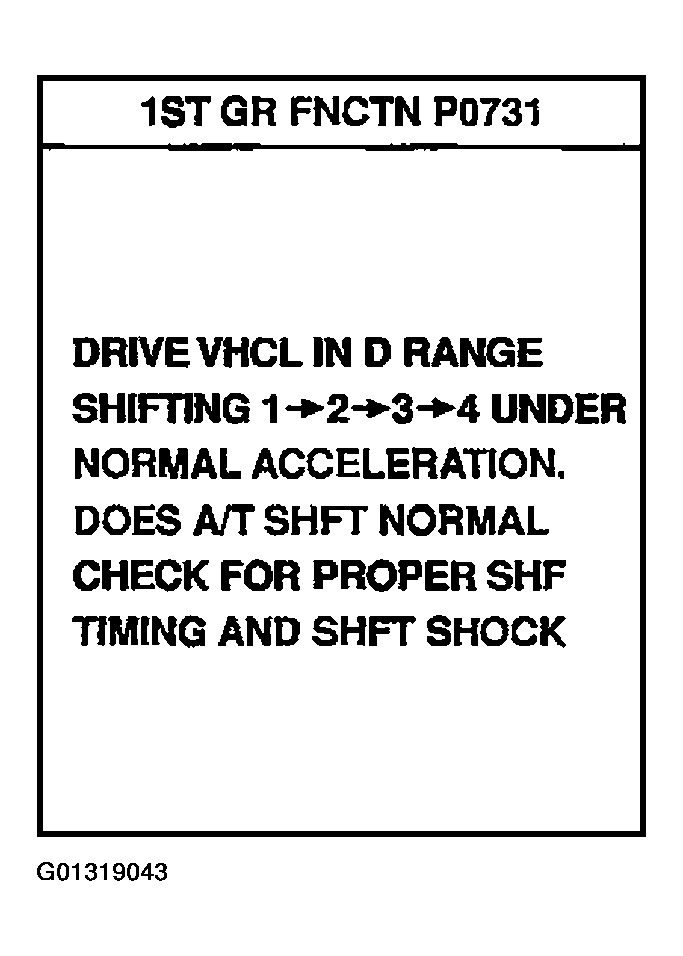

    Fig 12: CONSULT-II Display - Instructions (2 Of 2)
    G01319043Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.

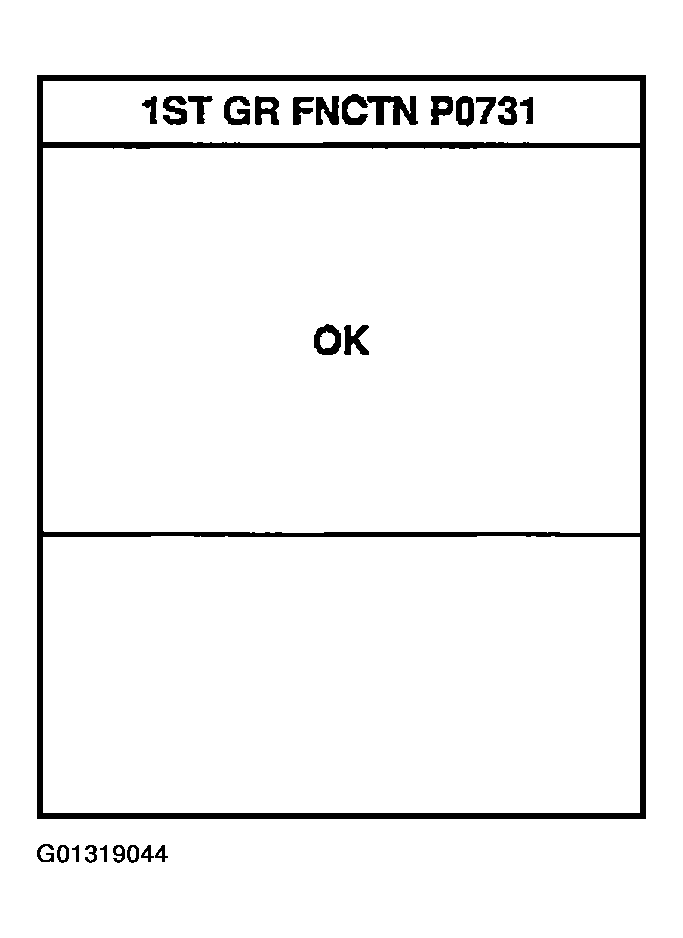

    Fig 13: CONSULT-II Display -OK
    G01319044Courtesy of NISSAN MOTOR CO., U.S.A.

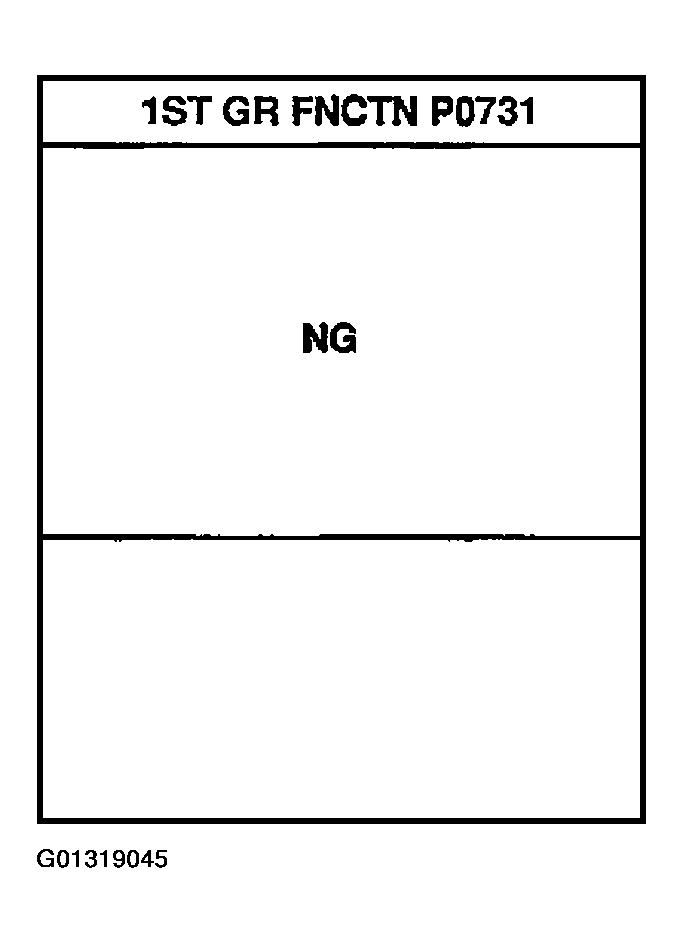

    Fig 14: CONSULT-II Display - NG
    G01319045Courtesy of NISSAN MOTOR CO., U.S.A.

    If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
