System diagram

WARNING: This page is about a different variant/trim than selected.

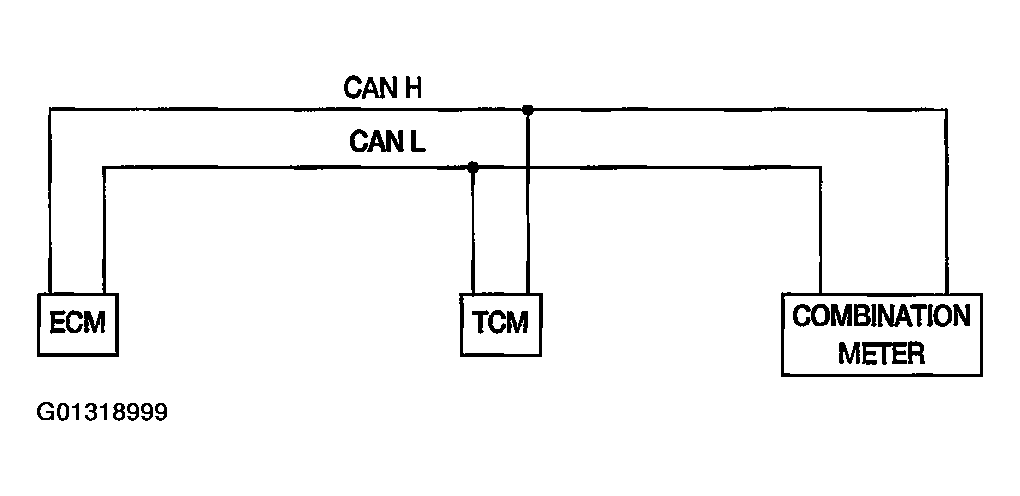

Fig 1: CAN Communication Unit - System Diagram
G01318999Courtesy of NISSAN MOTOR CO., U.S.A.

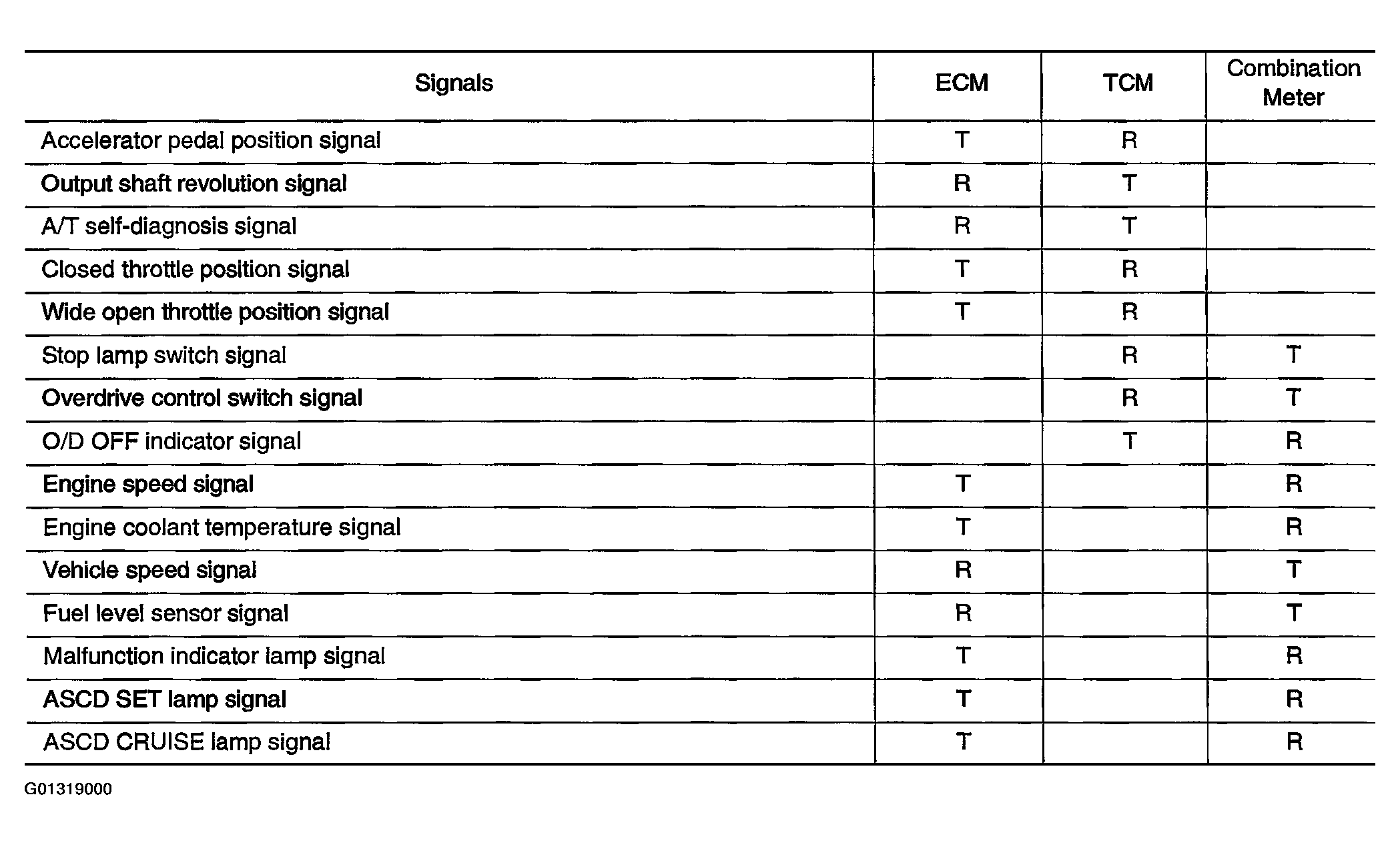

Fig 2: Input/Output Signal Chart
G01319000Courtesy of NISSAN MOTOR CO., U.S.A.
