Input/Output Signal Of TCM

WARNING: This page is about a different variant/trim than selected.

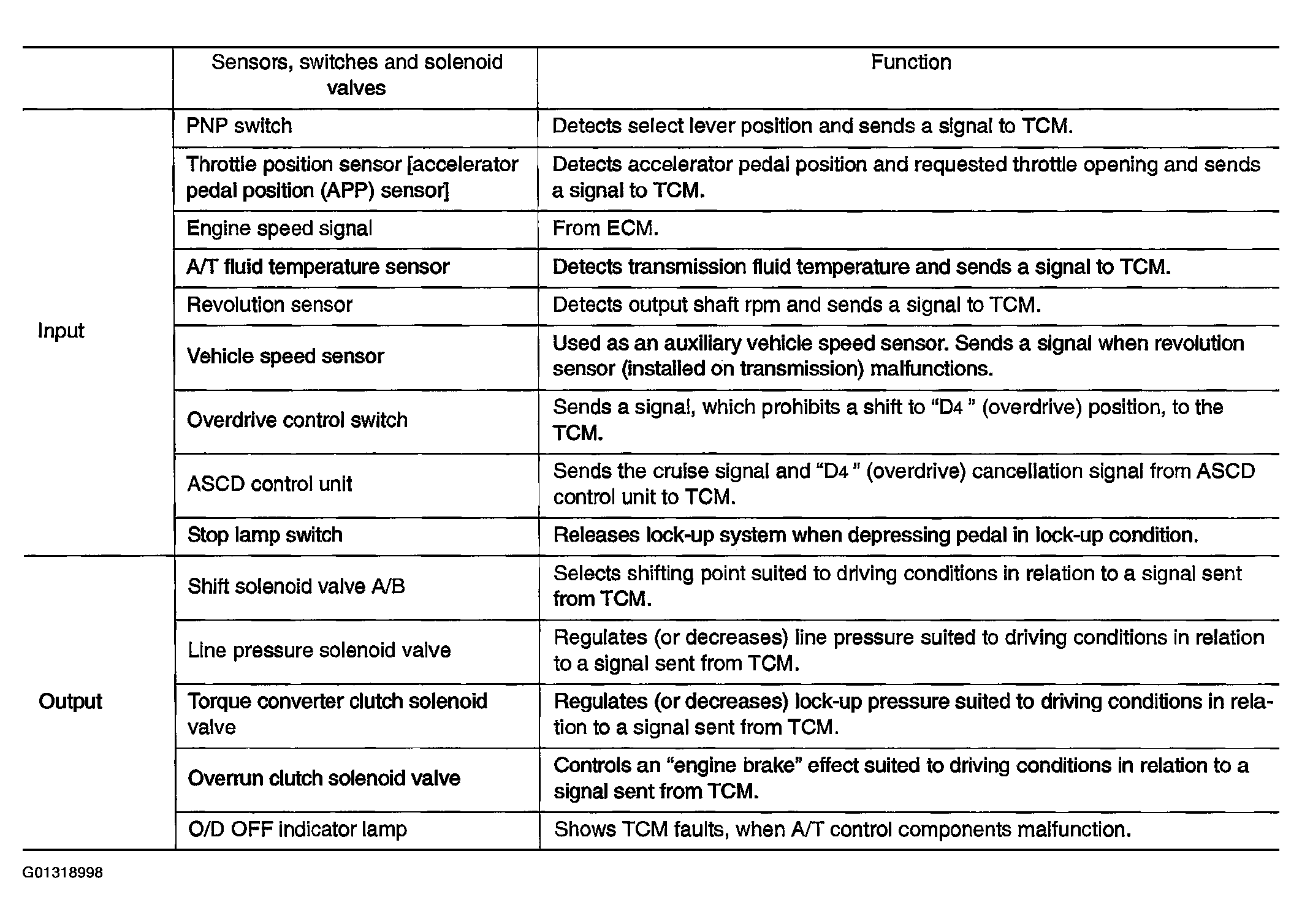

Fig 1: Input/Output Signal Of TCM
G01318998Courtesy of NISSAN MOTOR CO., U.S.A.
