Section 6 (Automatic Transaxle (Re4F03B))
>>
Trouble Diagnosis - General Description
>>
TCM Terminals and Reference Value
>>
TCM Inspection Table
>>
(Data are reference values.)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
(Data are reference values.)
WARNING:
This page is about a different variant/trim than selected.

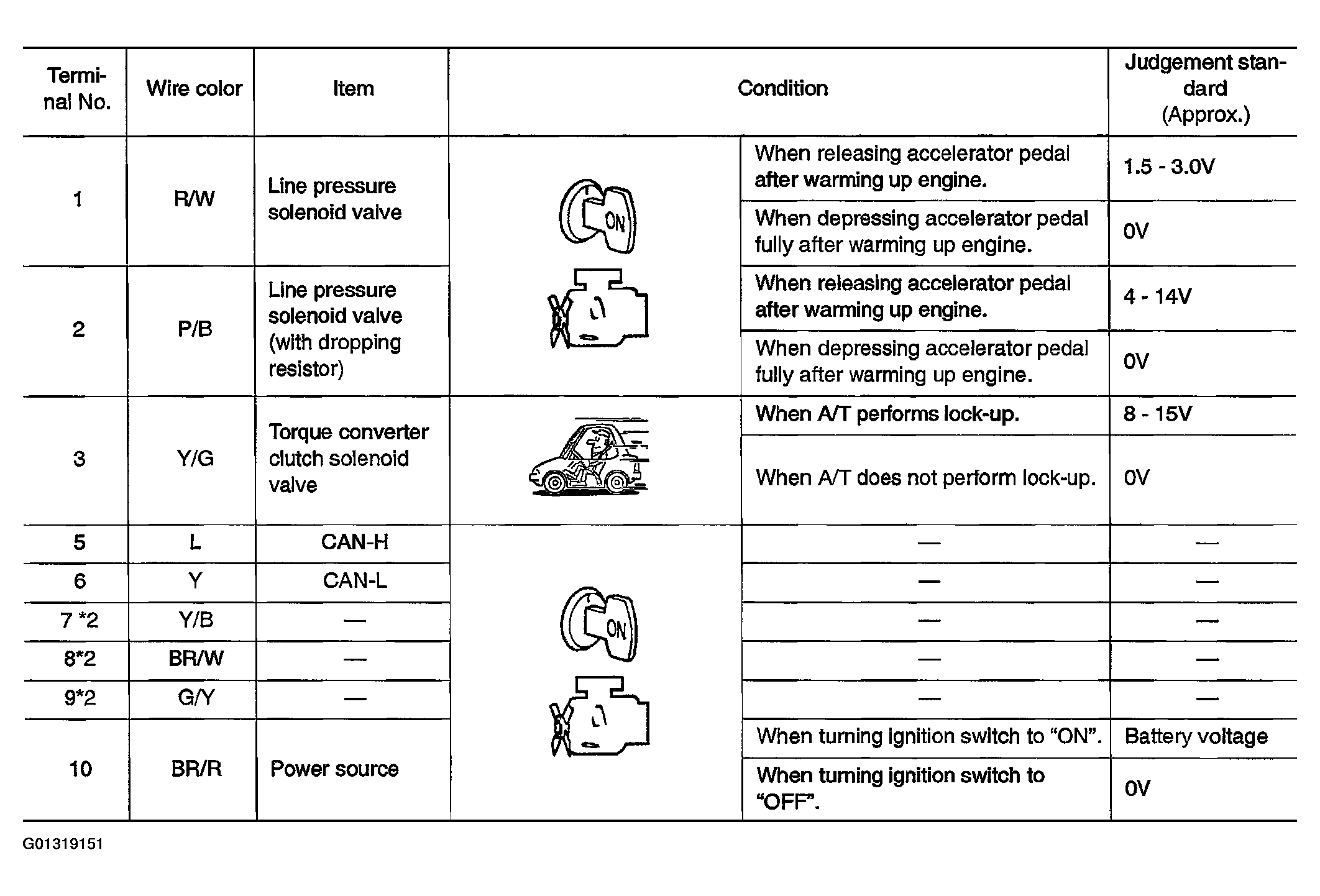

Fig 1: TCM Inspection Table (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

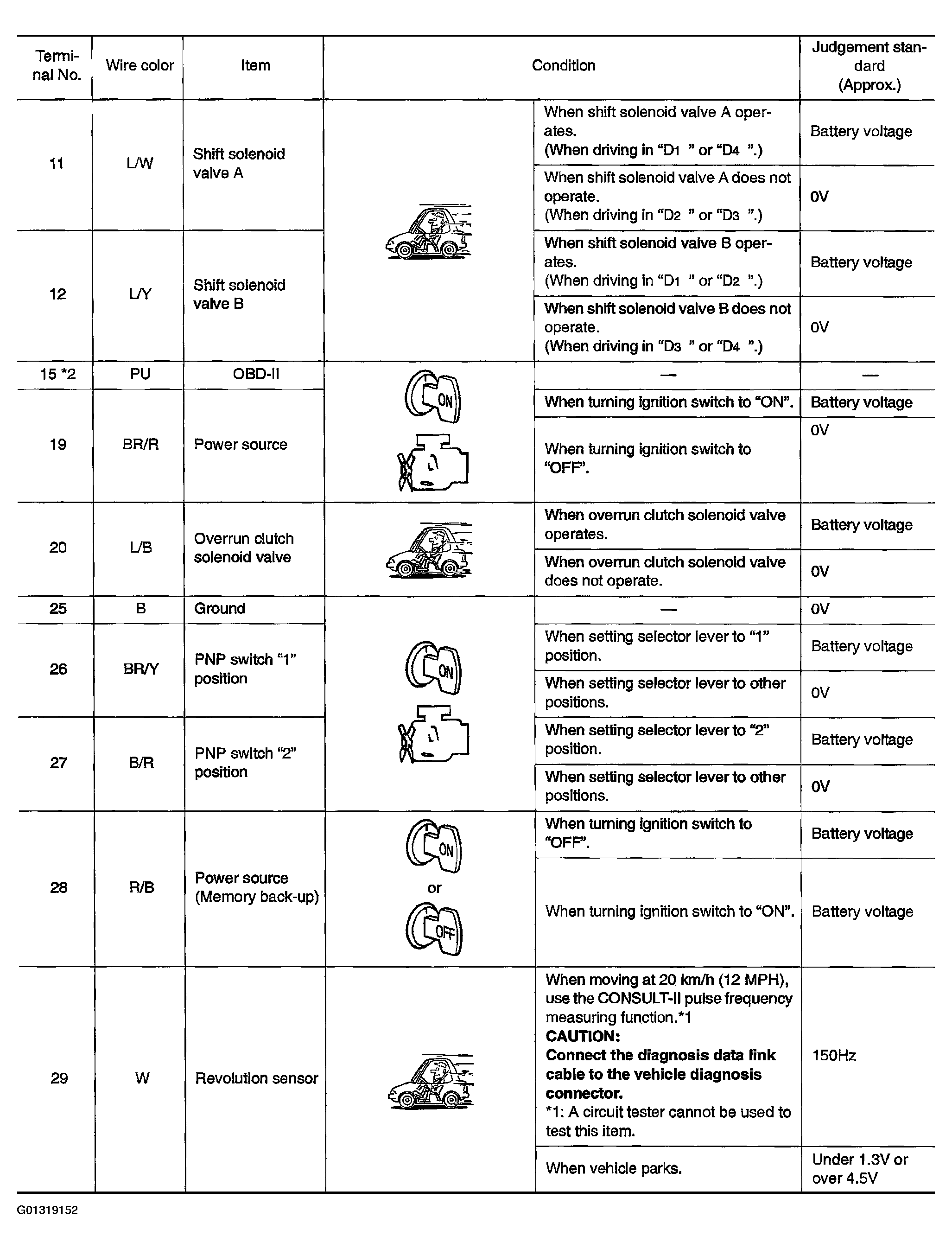

Fig 2: TCM Inspection Table (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

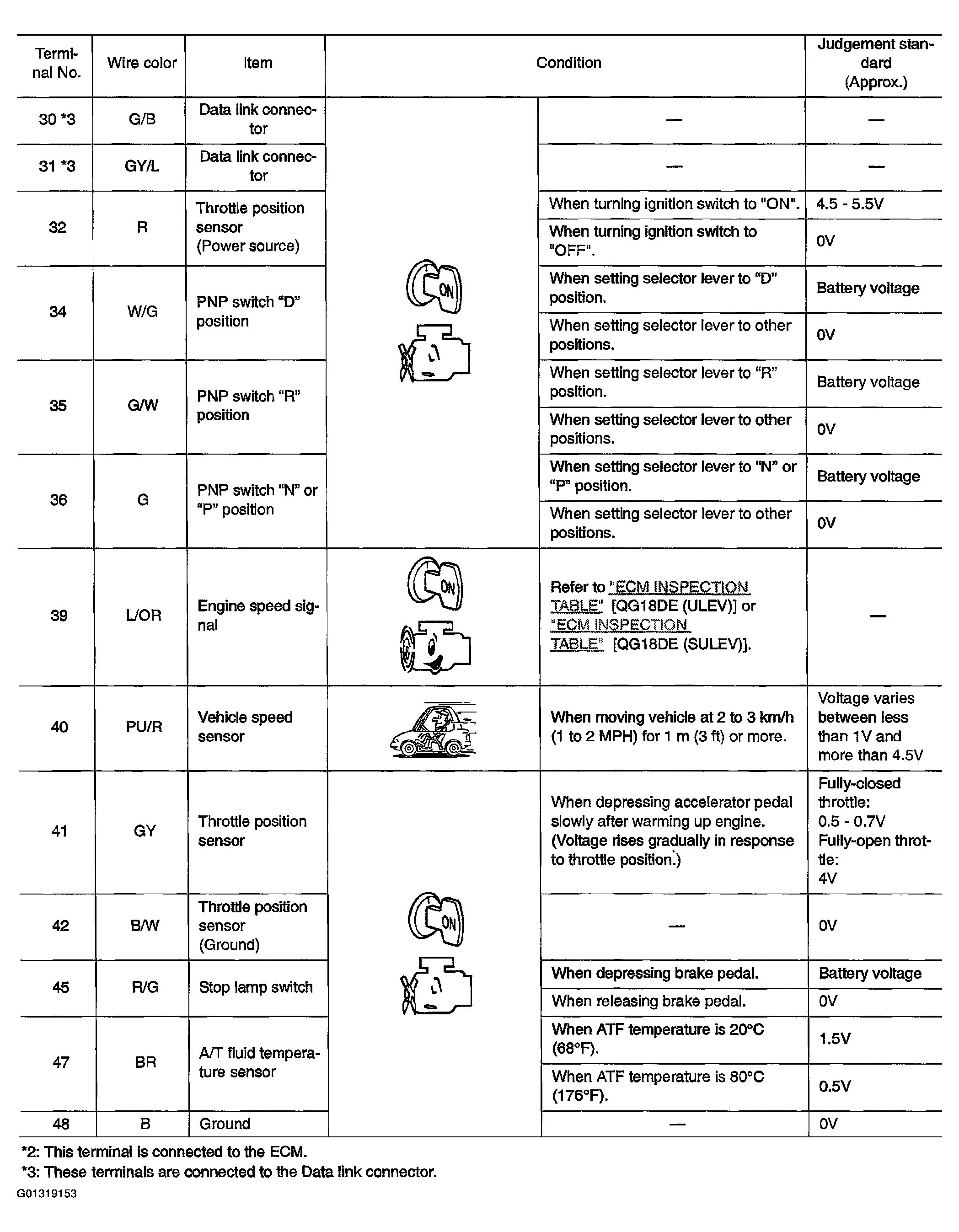

Fig 3: TCM Inspection Table (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
