Shift Fork

• Check if the width of the shift fork hook (sliding area with coupling sleeve) is within specification, as shown.
  Fig 1: Identifying Shift Fork Wear

  Courtesy of NISSAN MOTOR CO., U.S.A.

Shift Fork

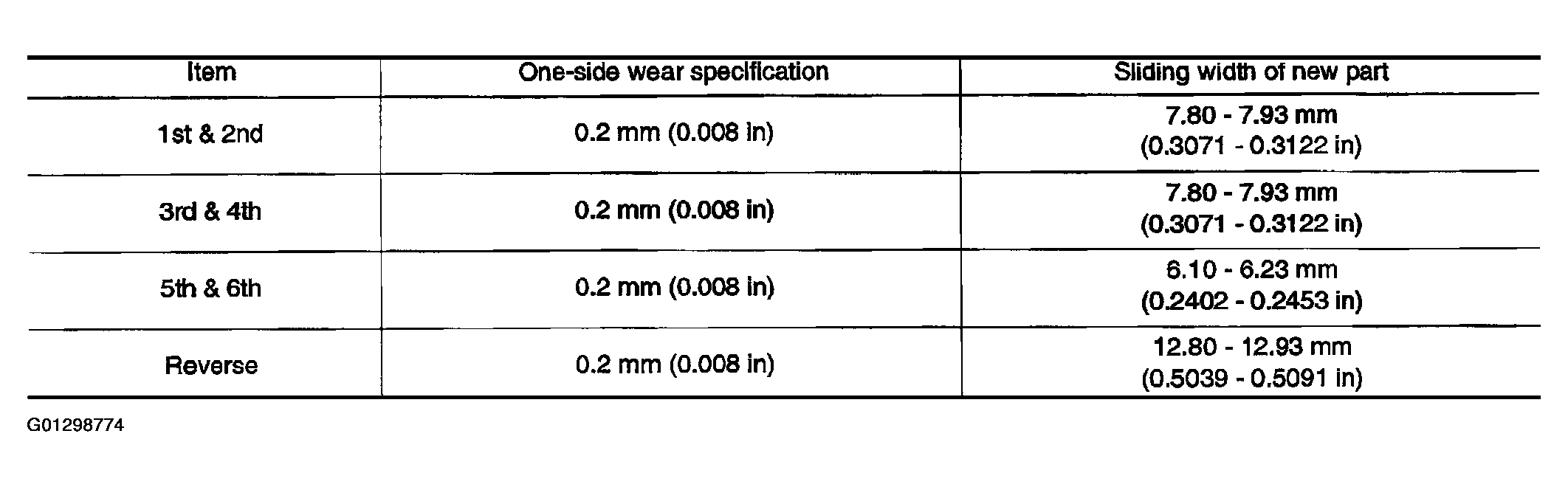

Fig 2: Shift Fork Wear Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
