Pinion Gear Height

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure all parts are clean and that the bearings are well lubricated.
  2. Assemble the pinion gear bearings into the differential shim selector tool.

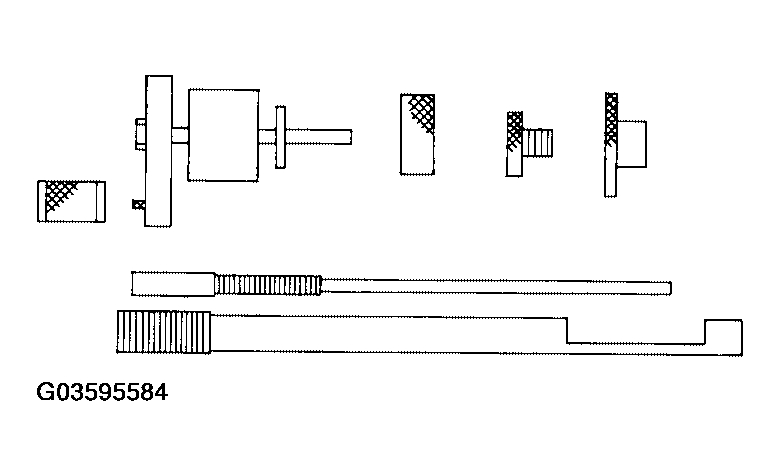

    Tool number: - (J-34309)

    Fig 1: Identifying Tool (J-34309)
    G03595584Courtesy of NISSAN MOTOR CO., U.S.A.
    • Pinion front bearing  ; make sure the J-34309-3 pinion front bearing seat is secured tightly against the J-34309-2 gauge anvil. Then turn the pinion front bearing pilot, J-34309-7, to secure the bearing in its proper position.
    • Pinion rear bearing  ; the pinion rear bearing pilot, J-34309-8, is used to center the pinion rear bearing only. The pinion rear bearing locking seat, J-34309-4, is used to lock the bearing to the assembly.
    • Installation of J-34309-9 and J-34309-16  ; place a suitable 2.5 mm (0.098 in) thick plain washer between J-34309-9 and J-34309-16. Both surfaces of J-34309-9 and J-34309-16 must be parallel with a clearance of 2.5 mm (0.098 in).

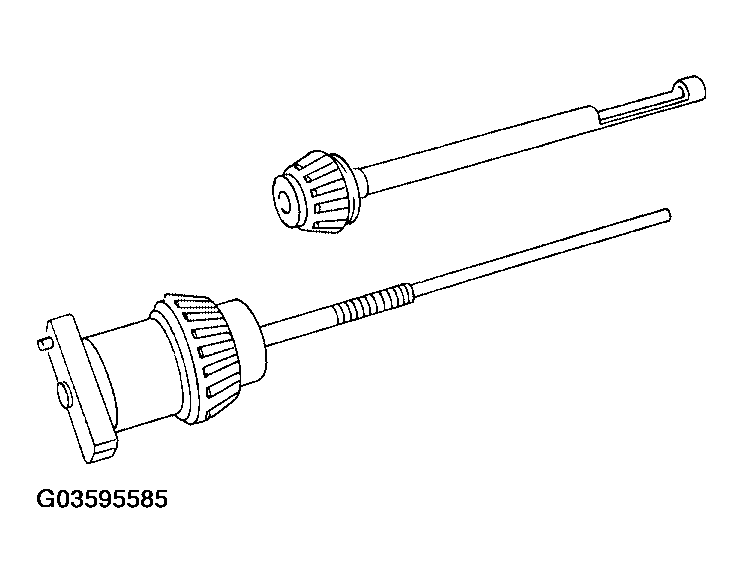

      Fig 2: Identifying Pinion Front & Rear Bearings
      G03595585Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the pinion rear bearing inner race into gear carrier. Then place the pinion preload shim selector tool, J-34309-1, gauge screw assembly.

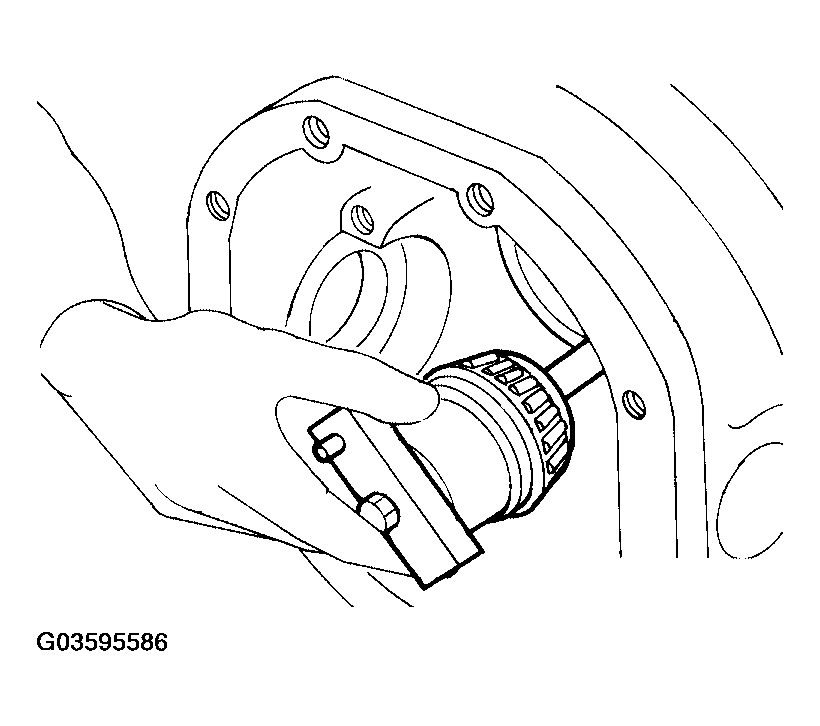

    Fig 3: Installing Pinion Rear Bearing Inner Race Into Gear Carrier
    G03595586Courtesy of NISSAN MOTOR CO., U.S.A.

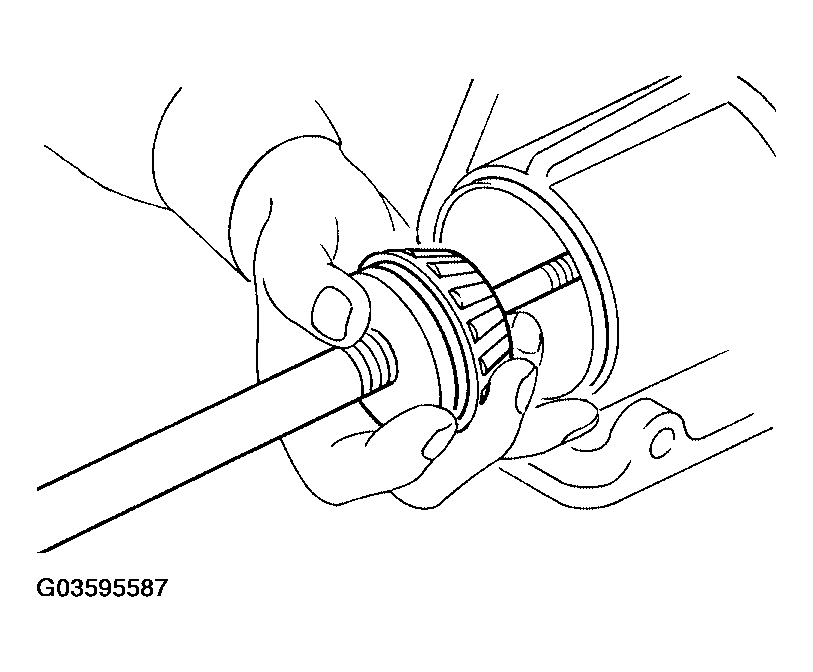

  4. Assemble the pinion front bearing inner race and the J-34309-2 gauge anvil. Assemble them together with the J-34309-1 gauge screw in gear carrier. Make sure that the pinion height gauge plate, J-34309-16, will turn a full 360 degrees. Tighten the two sections together by hand.
    Fig 4: Installing Pinion Front Bearing Inner Race
    G03595587Courtesy of NISSAN MOTOR CO., U.S.A.

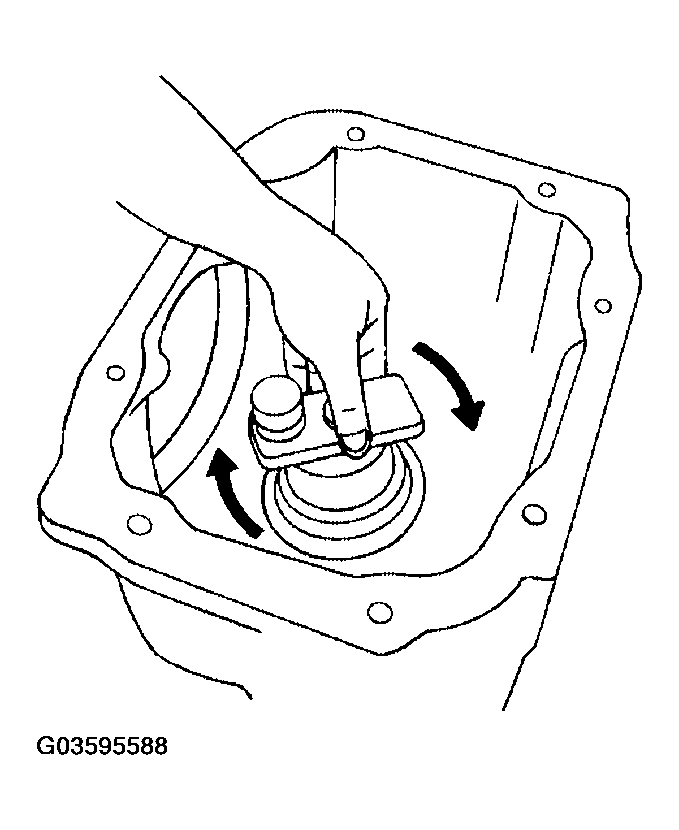

  5. Turn the assembly several times to seat the bearings.
    Fig 5: Turning The Assembly To Seat Bearings
    G03595588Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Measure the turning torque at the end of the J-34309-2 gauge anvil using preload gauge.

    Tool number: ST3127S000 (J-25765- A)

    Turning torque specification:

    1.0 - 1.6 N.m (0.11 - 0.16 kg-m, 9 - 14 in-lb)

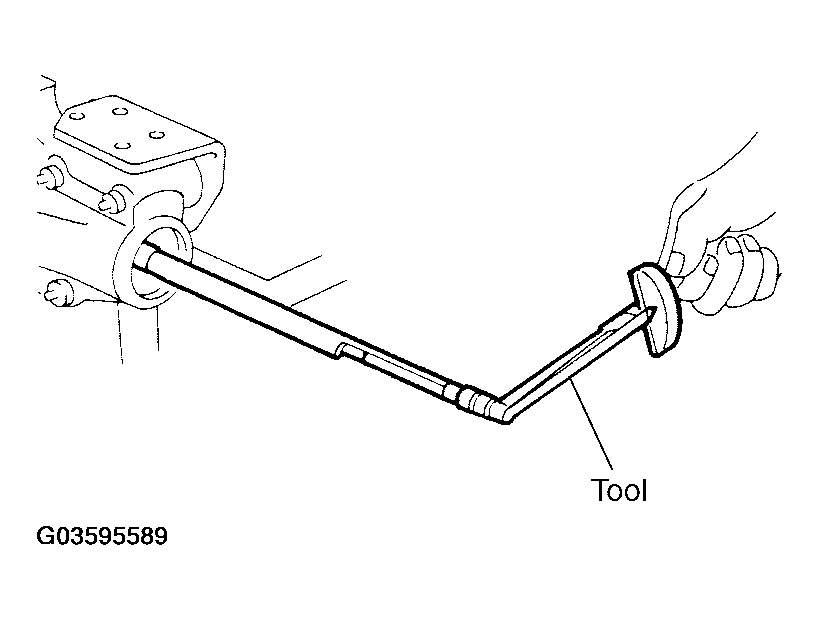

    Fig 6: Measuring Turning Torque
    G03595589Courtesy of NISSAN MOTOR CO., U.S.A.

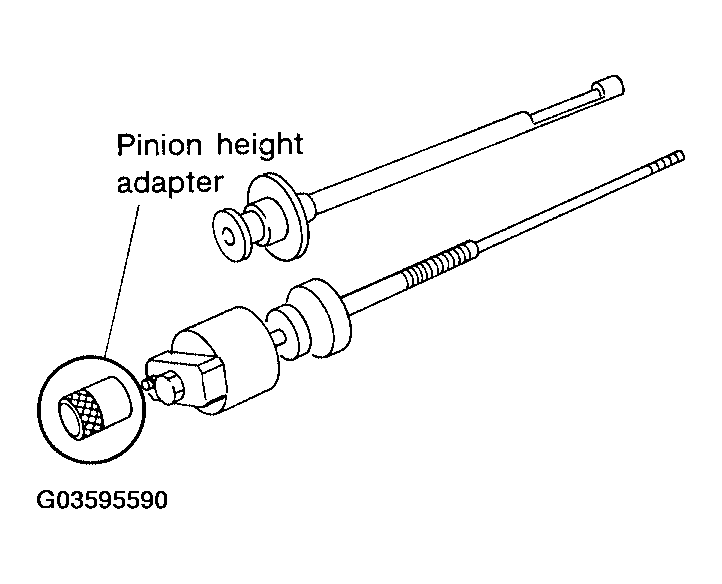

  7. Place the J-34309-10 "R180A" pinion height adapter onto the gauge plate and tighten it by hand.
    CAUTION: Make sure all machined surfaces are clean.
    Fig 7: Placing Pinion Height Adapter Onto Gauge Plate
    G03595590Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Position the side bearing discs, J-25269-18, and arbor firmly into the side bearing bores. Install the bearing caps and tighten bearing cap bolts to the specified torque. Refer to "COMPONENTS ".

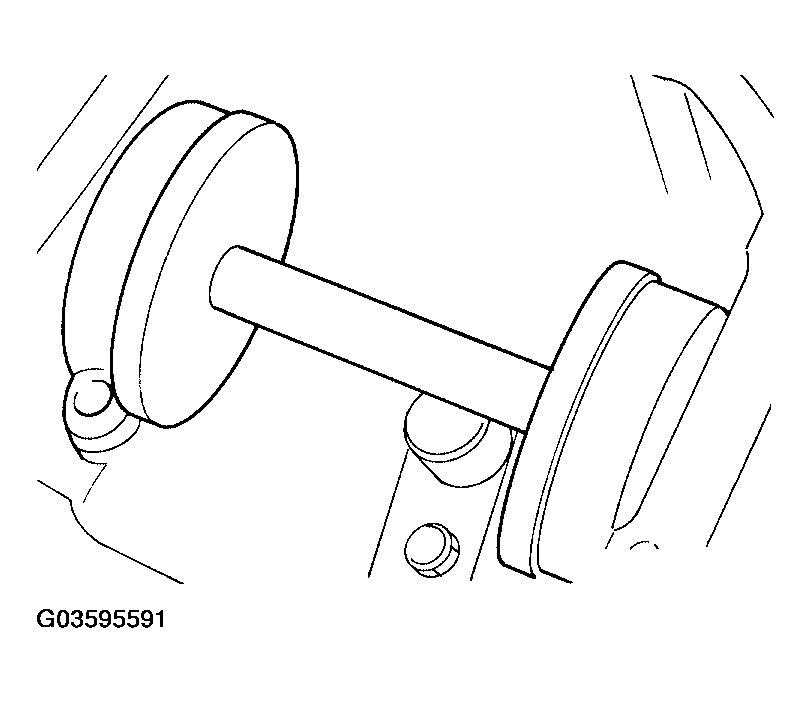

    Fig 8: Positioning Side Bearing Discs
    G03595591Courtesy of NISSAN MOTOR CO., U.S.A.

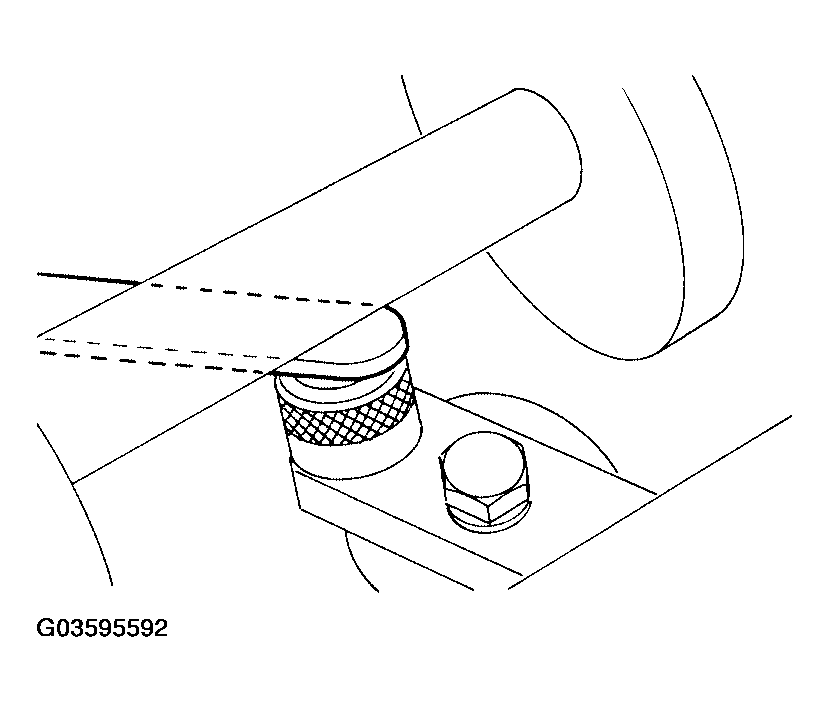

  9. Select the correct standard pinion height adjusting washer thickness. Select by using a standard gauge of 3 mm (0.12 in) and your J-34309-101 feeler gauge. Measure the distance between the J-34309-10 pinion height adapter including the standard gauge and the arbor.
    Fig 9: Measuring Distance Between Pinion Height Adapter And Arbor
    G03595592Courtesy of NISSAN MOTOR CO., U.S.A.

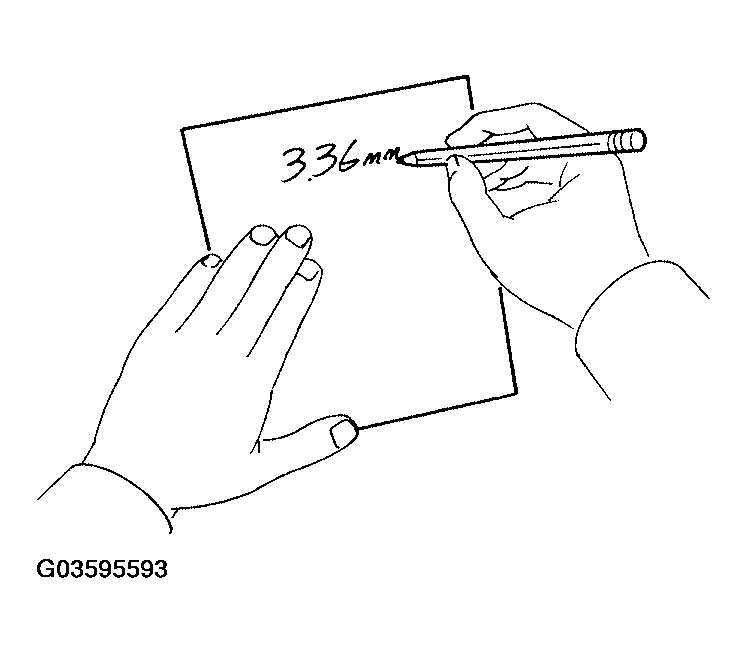

  10. Write down exact measurement (the value of feeler gauge).
    Fig 10: Writing Measurement
    G03595593Courtesy of NISSAN MOTOR CO., U.S.A.

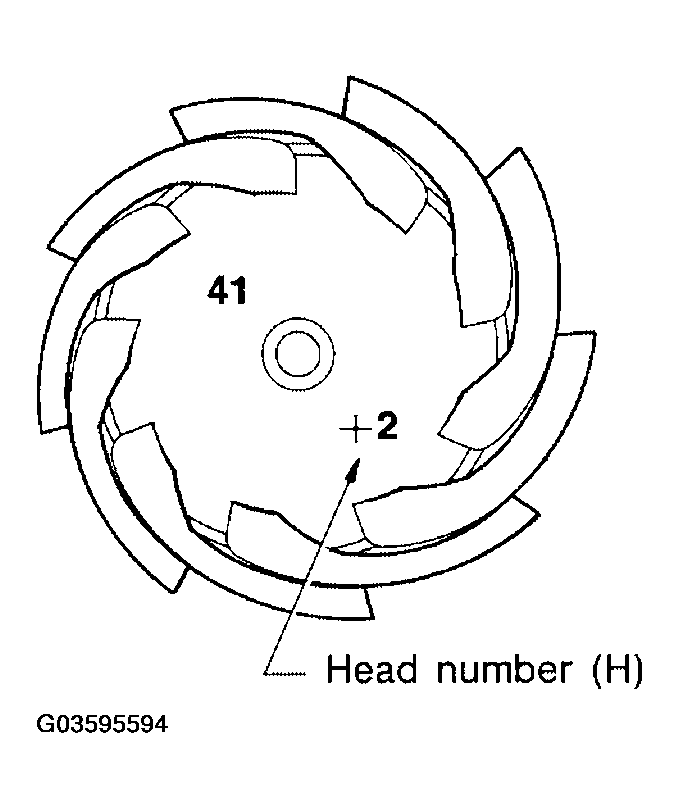

  11. Correct the pinion height washer size by referring to the "pinion head number".

    There are two numbers painted on the drive pinion. The first one refers to the drive pinion and drive gear as a matched set. This number should be the same as the number on the drive gear. The second number is the "pinion head height number". It refers to the ideal pinion height from standard for quietest operation. Use the following chart to determine the correct pinion height washer.

    Fig 11: Identifying Pinion Head Height Number
    G03595594Courtesy of NISSAN MOTOR CO., U.S.A.
    PINION HEAD HEIGHT NUMBER CHART

    Pinion head height number Add or remove from the standard pinion height adjusting washer thickness measurement
    - 6 Add 0.06 mm (0.0024 in)
    - 5 Add 0.05 mm (0.0020 in)
    - 4 Add 0.04 mm (0.0016 in)
    - 3 Add 0.03 mm (0.0012 in)
    - 2 Add 0.02 mm (0.0008 in)
    - 1 Add 0.01 mm (0.0004 in)
    0 Use the selected washer thickness
    +1 Subtract 0.01 mm (0.0004 in)
    +2 Subtract 0.02 mm (0.0008 in)
    +3 Subtract 0.03 mm (0.0012 in)
    +4 Subtract 0.04 mm (0.0016 in)
    +5 Subtract 0.05 mm (0.0020 in)
    +6 Subtract 0.06 mm (0.0024 in)
  12. Select the correct pinion height adjusting washer. Refer to "PINION HEIGHT ADJUSTING WASHER ".

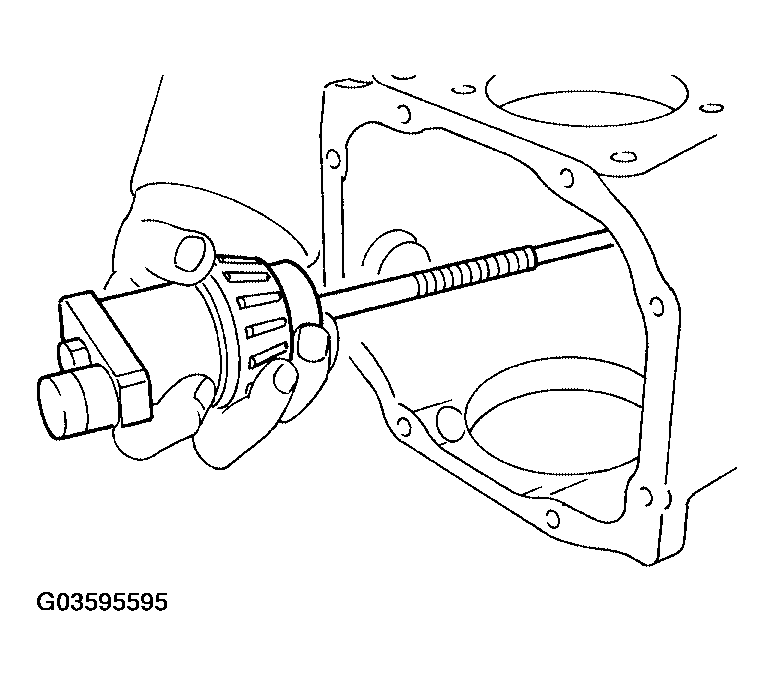

  13. Remove the J-34309 differential shim selector tool from the final drive housing. Then disassemble to retrieve the pinion bearings.
    Fig 12: Removing Differential Shim Selector Tool From Final Drive Housing
    G03595595Courtesy of NISSAN MOTOR CO., U.S.A.
