Eng Speed, Mas A/F Se-B1, THRTL Sen 1, Ho2S2 (B1), INJ Pulse-B1

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Below is the data for "ENG SPEED""MAS A/F SE-B1""THRTL SEN 1""HO2S2 (B1)" and "INJ PULSE-B1" when revving engine quickly up to 4, 800 RPM under no load after warming up engine sufficiently. Each value is for reference, the exact value may vary.

168 PBIB2445E

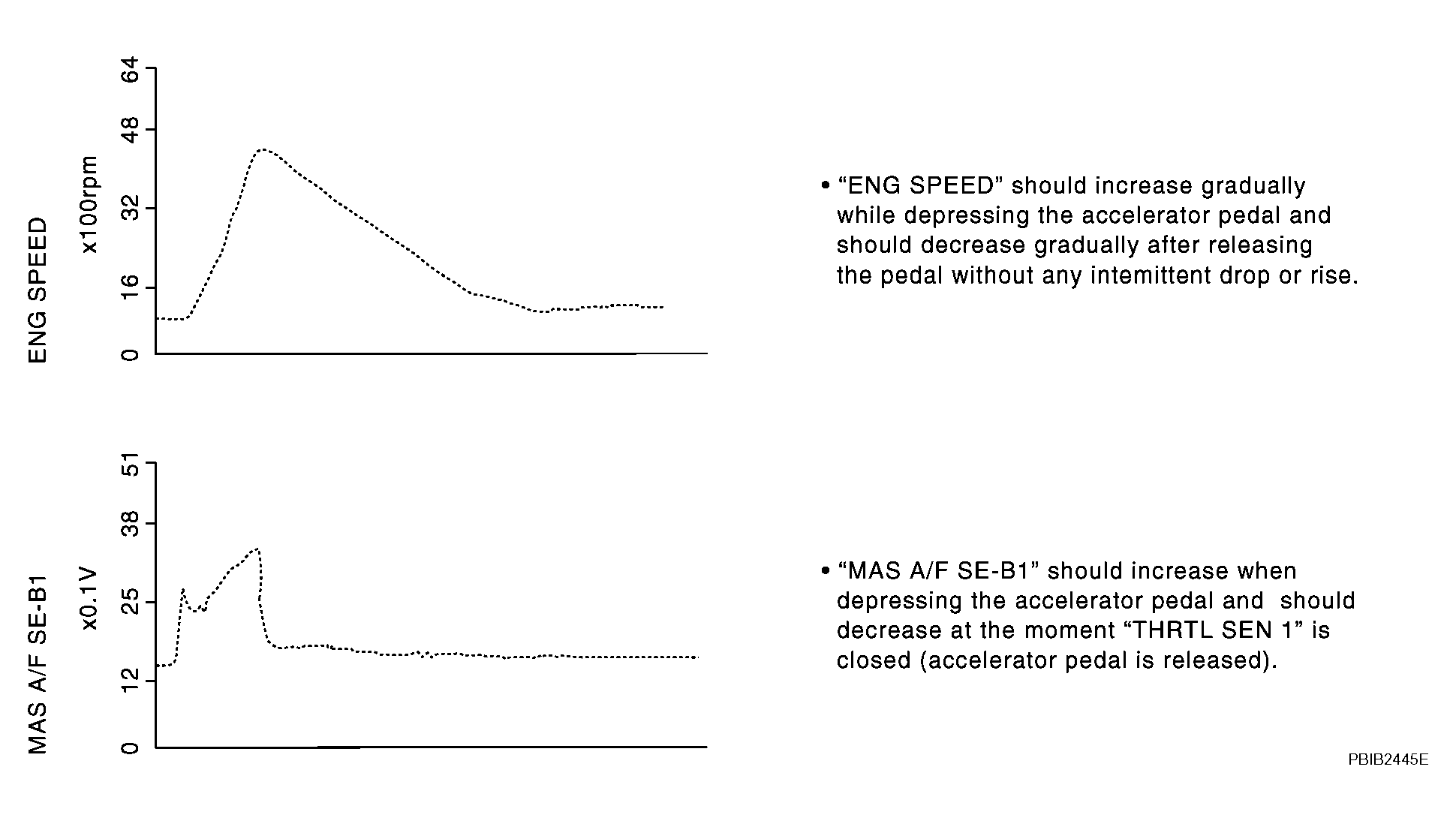

Fig 1: ENG SPEED And MAS A/F SE-B1 - Major Sensor Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

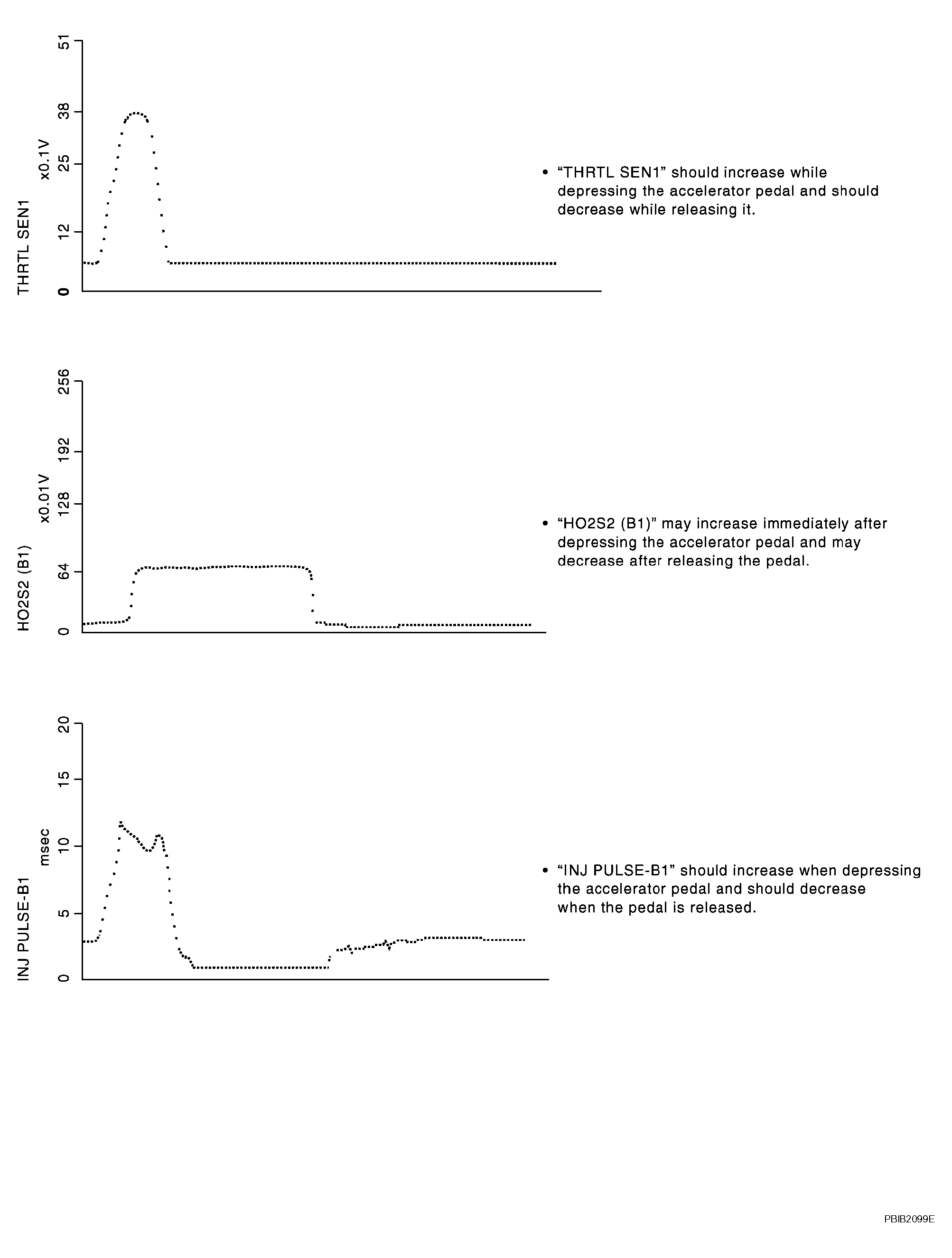

Fig 2: THRTL SEN 1, HO2S2 (B1) And INJ PULSE-B1 - Major Sensor Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
