Mil And Data Link Connector: Wiring Diagram

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

For complete wiring diagrams, see SYSTEM WIRING DIAGRAMS - TITAN article.

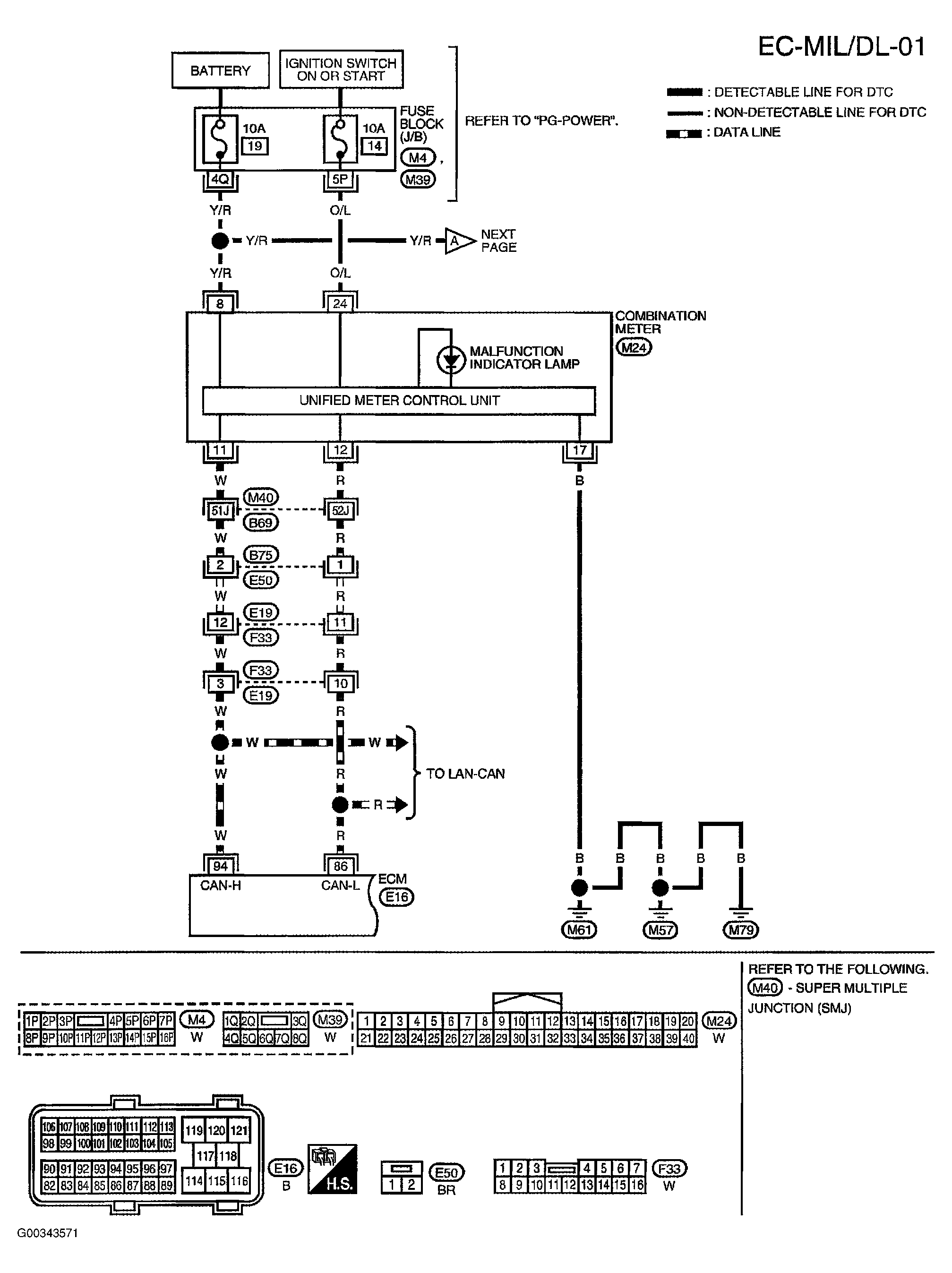

Fig 1: MIL And Data Link Connector Circuit Diagram - EC-MIL/DL-01 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

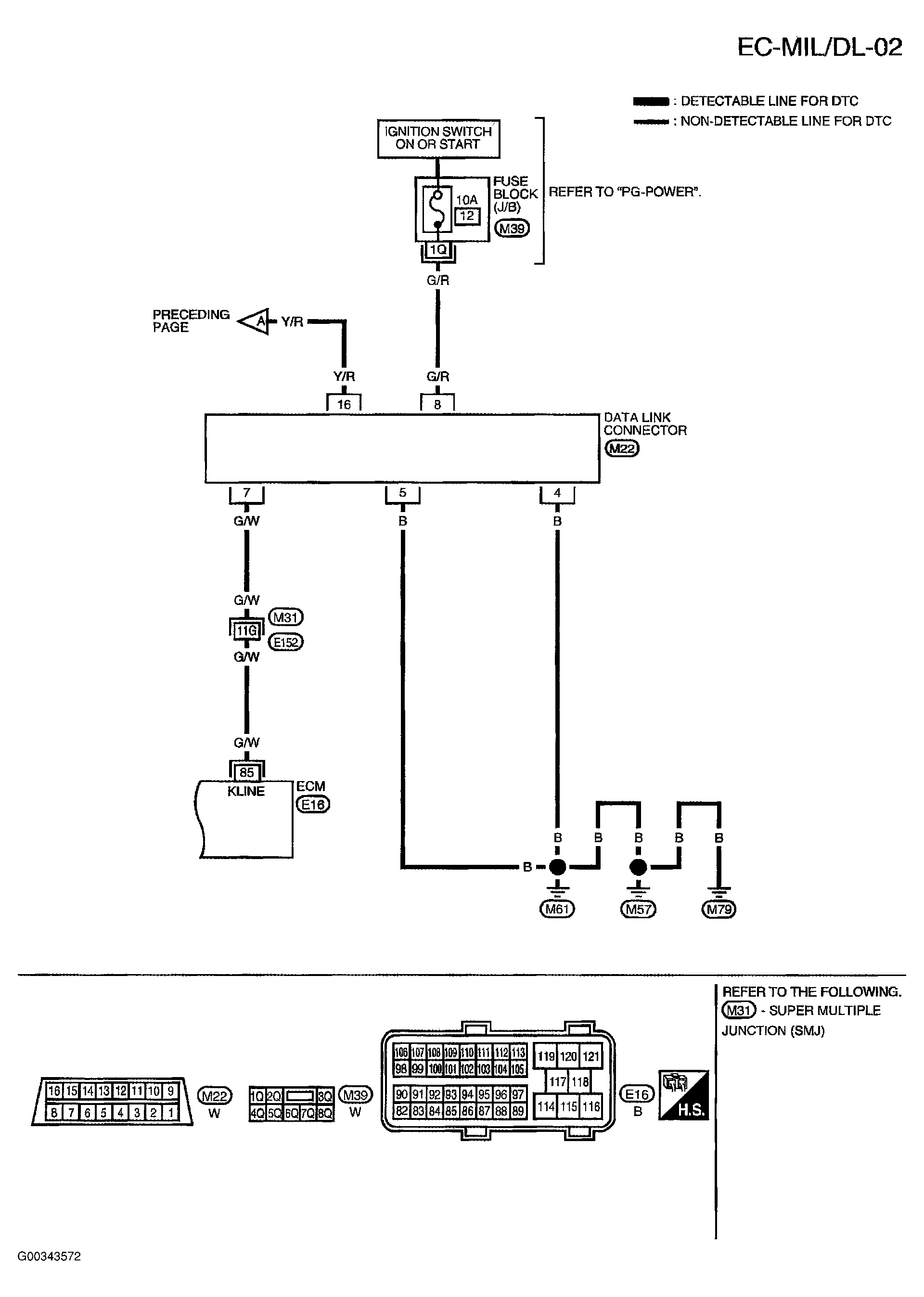

Fig 2: MIL And Data Link Connector Circuit Diagram - EC-MIL/DL-02 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
