14. Check If EVAP Canister Saturated With Water

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
Check if water will drain from the EVAP canister.

Yes or No

Yes: GO TO 15.
No: GO TO 17 .

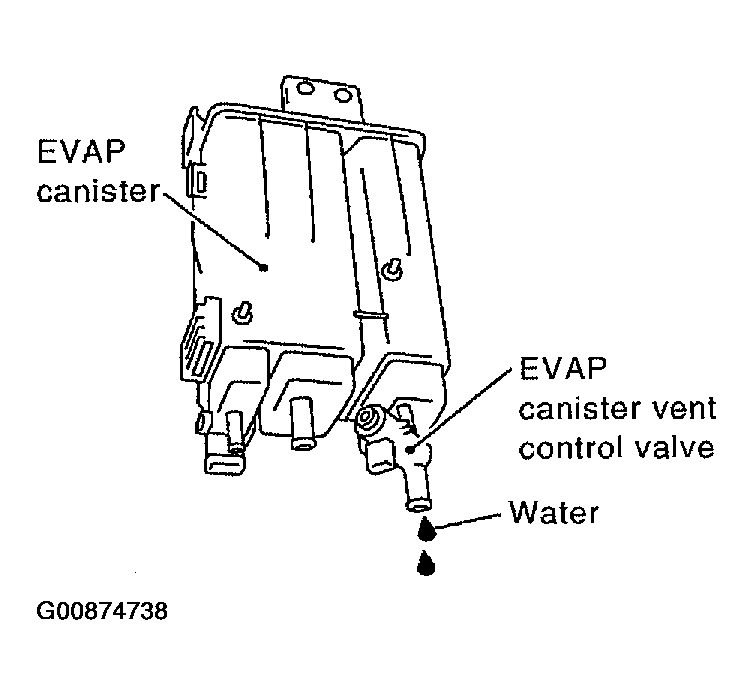

Fig 1: Check If Water Will Drain From The EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.
