Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ambient sensor connector.
    NOTE: The ambient sensor is located behind the front bumper opening, in front of the condenser.
  2. Release the ambient sensor clip and then remove the ambient sensor.
  3. Installation is in the reverse order of removal.

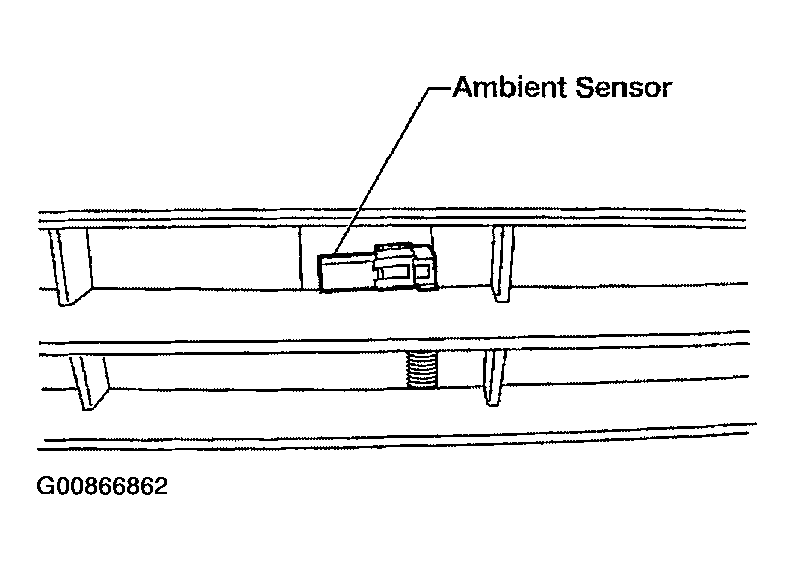

    Fig 1: Identifying Ambient Sensor
    G00866862Courtesy of NISSAN MOTOR CO., U.S.A.
