SRT Set Timing

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

SRT is set as "CMPLT" after self-diagnosis has been performed 1 or more times. Completion of SRT is done regardless of whether the result is "OK" or "NG". The set timing is different between "OK" and "NG" result. See Fig 1.

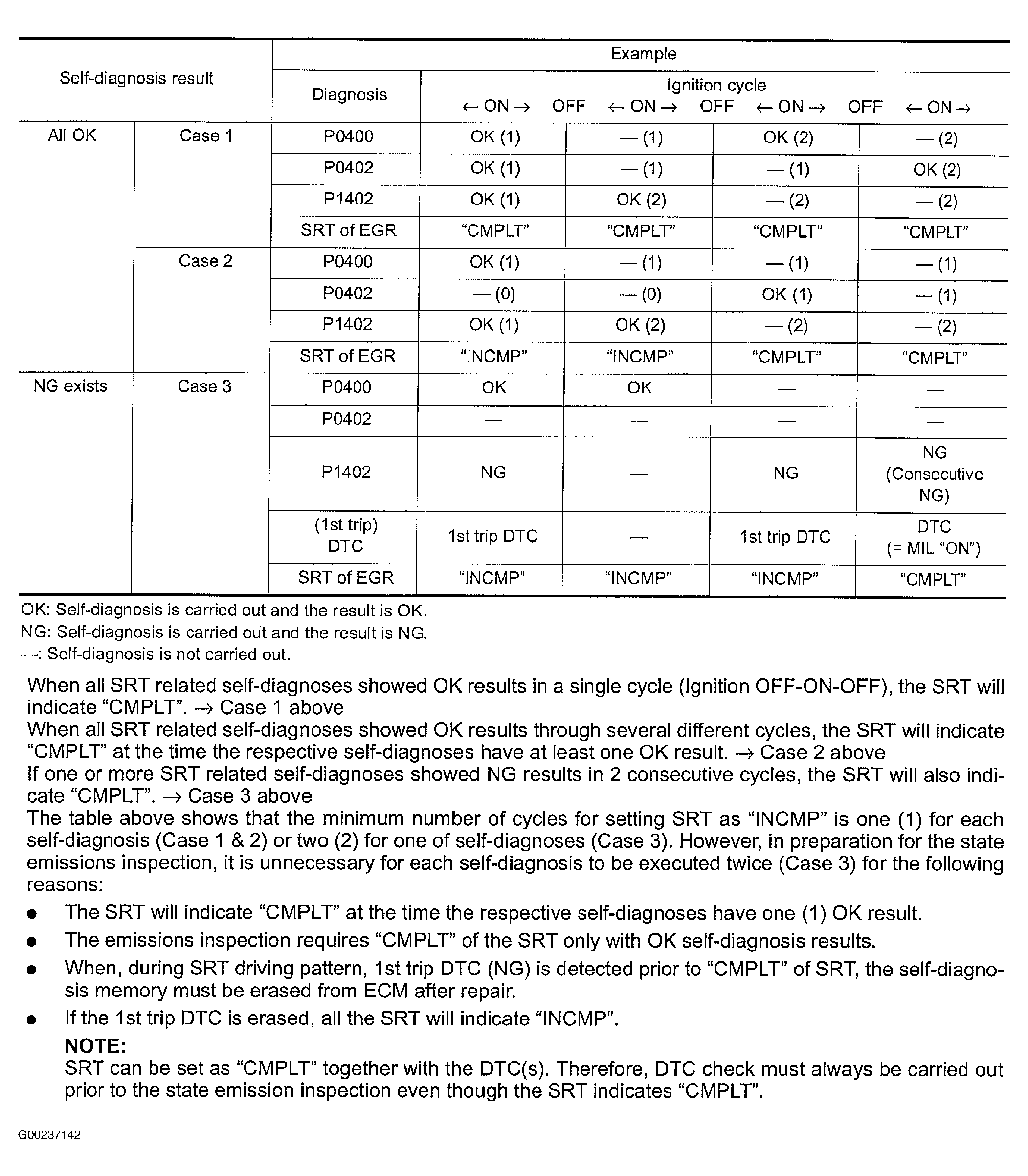

Fig 1: Identifying Self-Diagnosis Results For SRT Set Timing

Courtesy of NISSAN MOTOR CO., U.S.A.
