Check Power Supply And Ground Circuit

• Check for blown fuses.
  FUSES CHECK CHART



  Unit	Power source	Fuse No.
  BCM	Battery	F
  		18
  	Ignition switch ON or START position	1
  	Ignition switch ACC or ON position	6
  IPDM E/R	Battery	72
  		74
  		76
  		86

  Refer to "WIRING DIAGRAM - AUTO/L -  ".

OK or NG

1. OK: GO TO 2.
2. NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to "POWER DISTRIBUTION " .

1. Disconnect BCM connector.
2. Check voltage between BCM harness connector and ground.
   VOLTAGE CHECK CHART



   Terminals			Ignition switch position
   (+)		(-)	OFF	ACC	ON
   Connector	Terminal (Wire color)
   M34	11 (P/B)	Ground	0 V	Battery voltage	Battery voltage
   	38 (R)		0V	0V	Battery voltage
   M35	42 (GR)		Battery voltage	Battery voltage	Battery voltage
   	55 (W/B)		Battery voltage	Battery voltage	Battery voltage

OK or NG

1. OK: GO TO 3.
2. NG: Check harness for open or short between BCM and fuse.

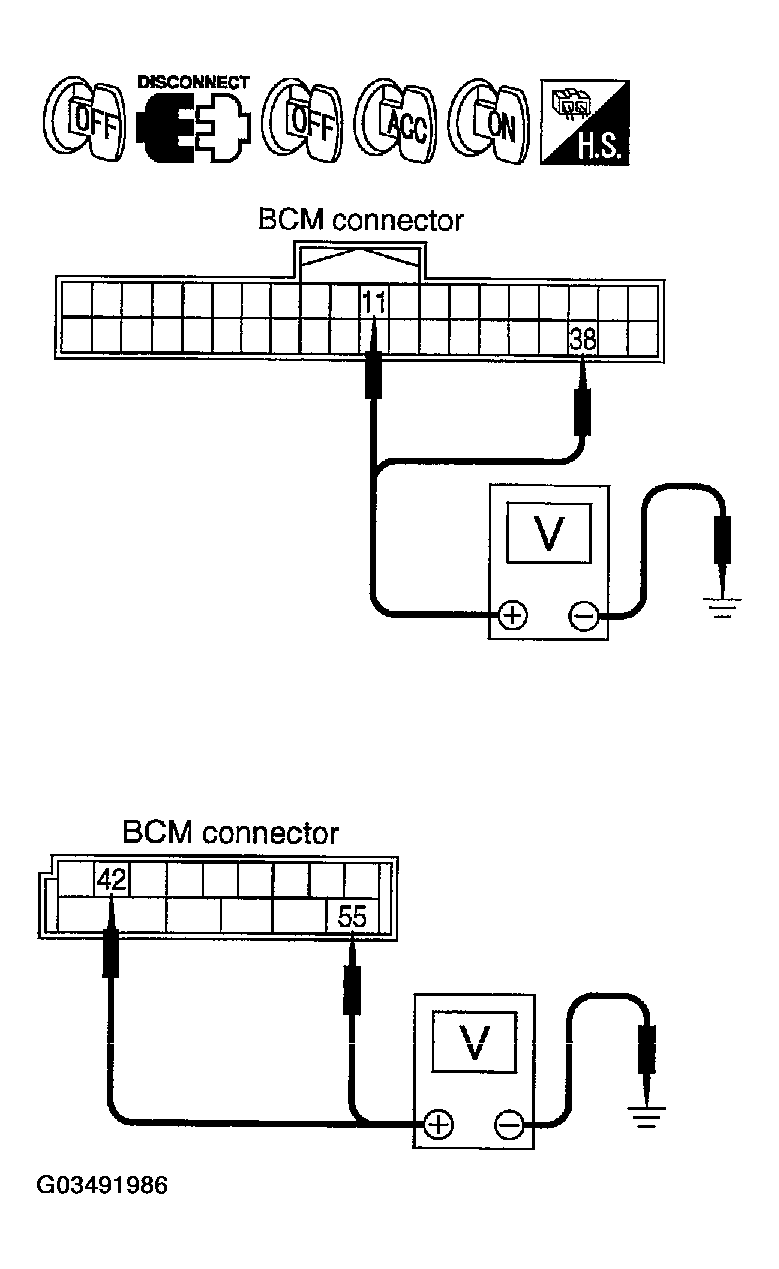

   Fig 1: Checking Voltage Between BCM Harness Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between BCM harness connector and ground.

OK or NG

1. OK: INSPECTION END
2. NG: Check ground circuit harness.
   Fig 2: Checking Continuity Between BCM Harness Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
