Removal and Installation of Optical Sensor

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument mask (LH) assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. While pressing pawl in direction as shown in Fig 1 , remove the sensor unit from instrument mask.

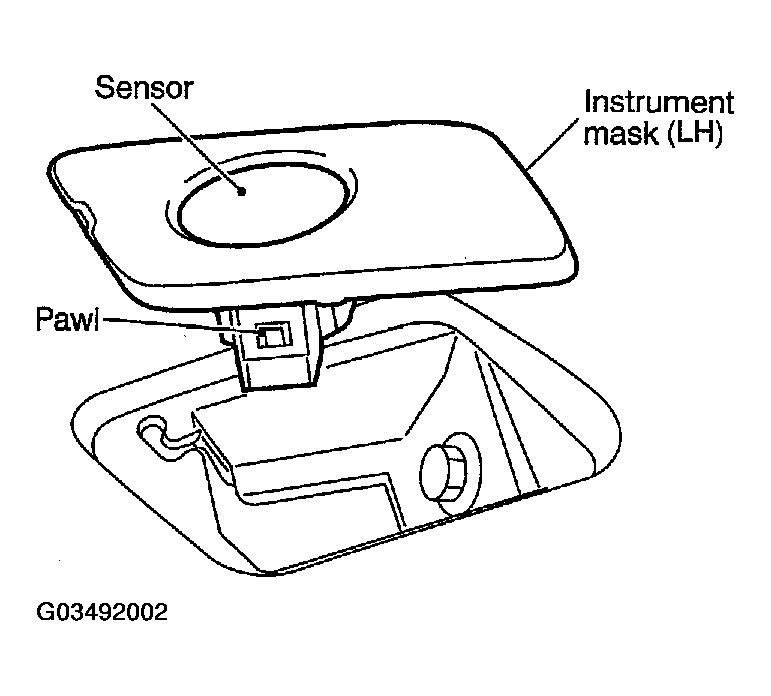

    Fig 1: Removing Sensor Unit From Instrument Mask
    G03492002Courtesy of NISSAN MOTOR CO., U.S.A.
