Terminal and Reference Value for Power Window Sub-switch/With Front and Rear Window Anti-pinch System

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

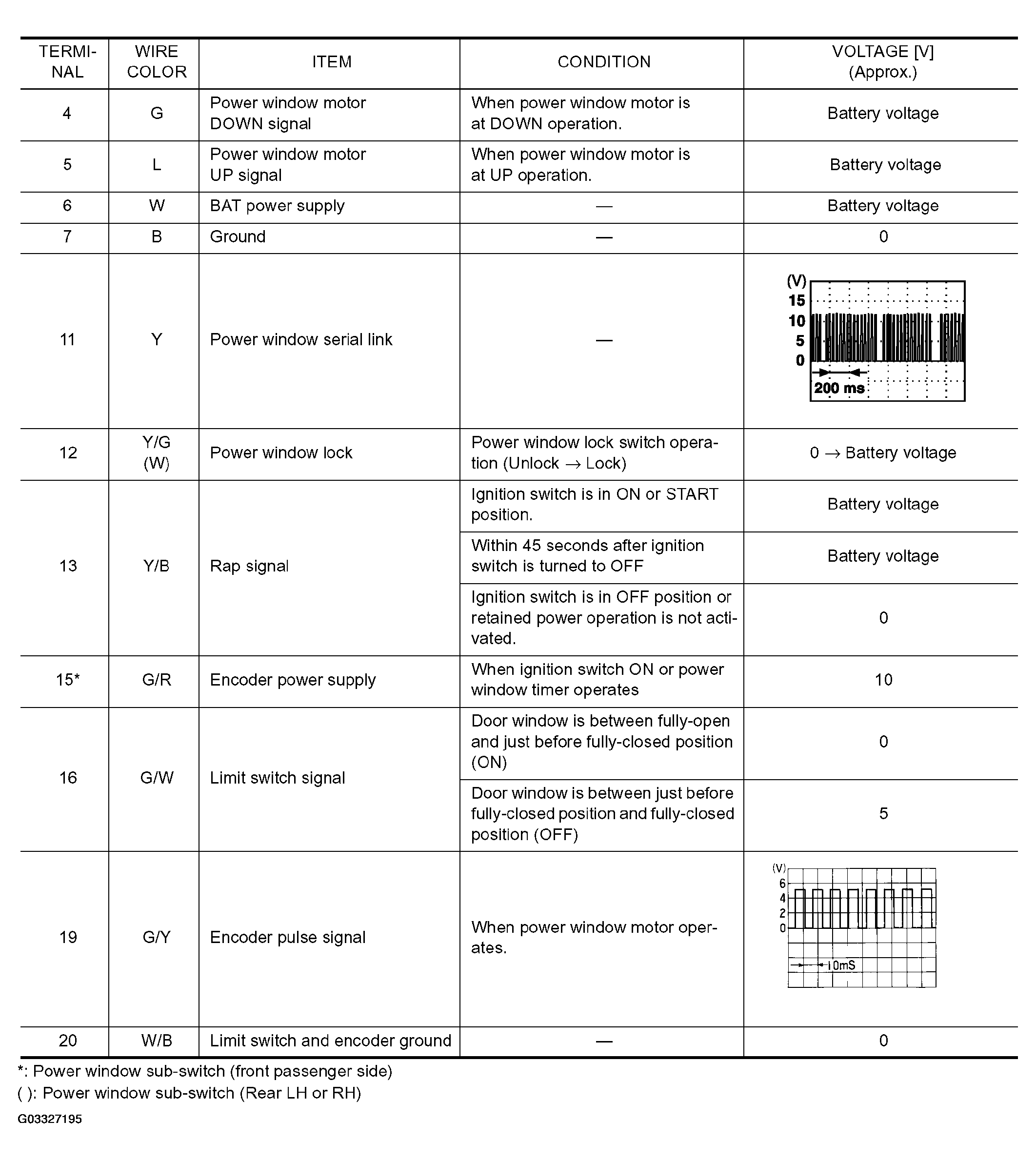

Fig 1: Power Window Sub-switch/With Front and Rear Window Anti-pinch System Terminals Voltage Conditions Chart
G03327195Courtesy of NISSAN MOTOR CO., U.S.A.
