Wiring Diagram - COMBSW -
WARNING:
This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

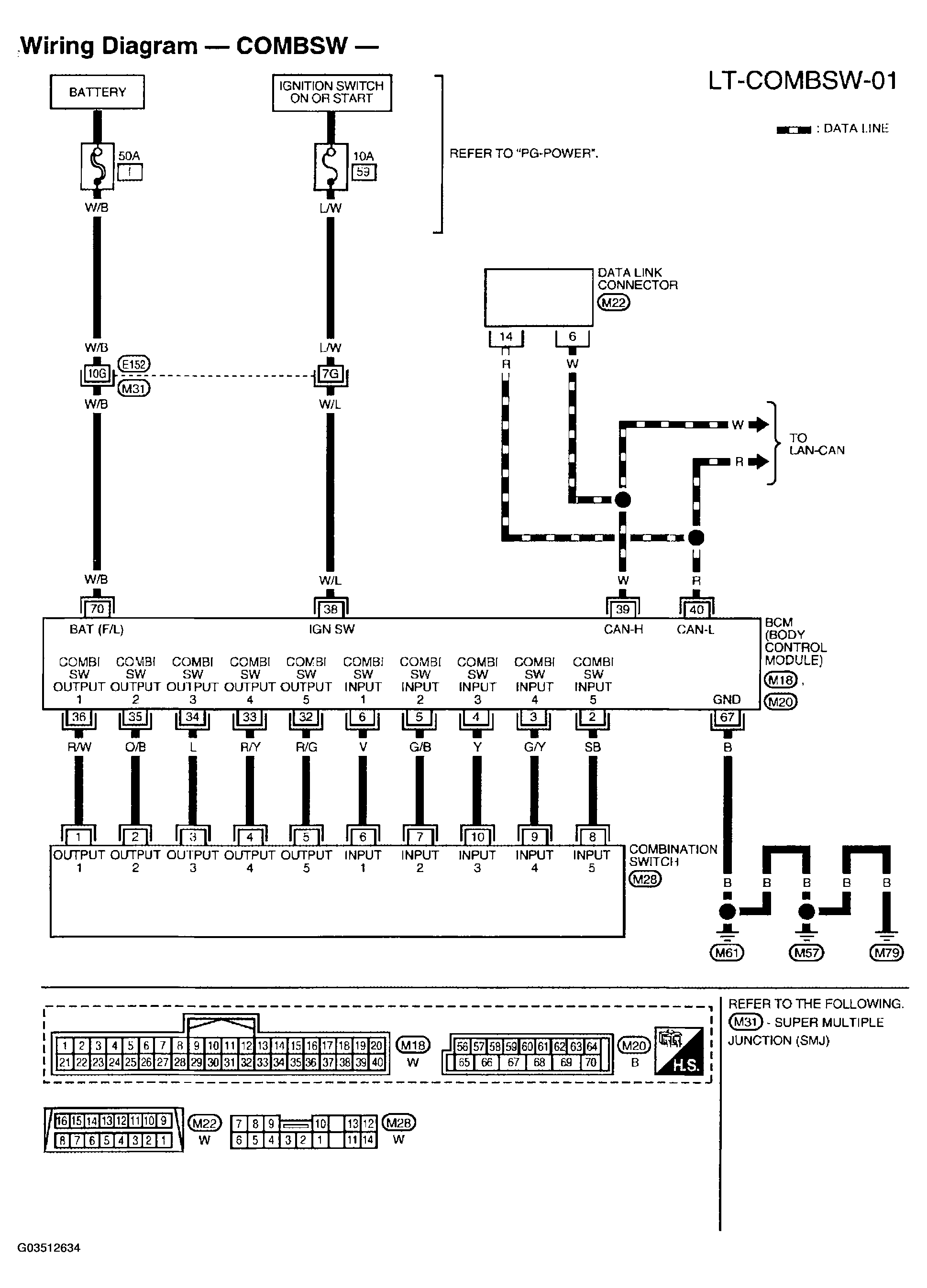

Fig 1: Combination Switch Wiring Diagram LT-COMBSW-01
Courtesy of NISSAN MOTOR CO., U.S.A.
