Open Operation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

When passenger side door unlock and back door shuts, back door opener switch is pushed.
Back door closure control unit receives the signal, closure motor is operated in an open direction, and back door opens.
Closure motor is operated in the close direction and stops at a neutral position when the following conditions detected after turning on open switch.

When back door is in half-open state, and
5 seconds past without opening back door.

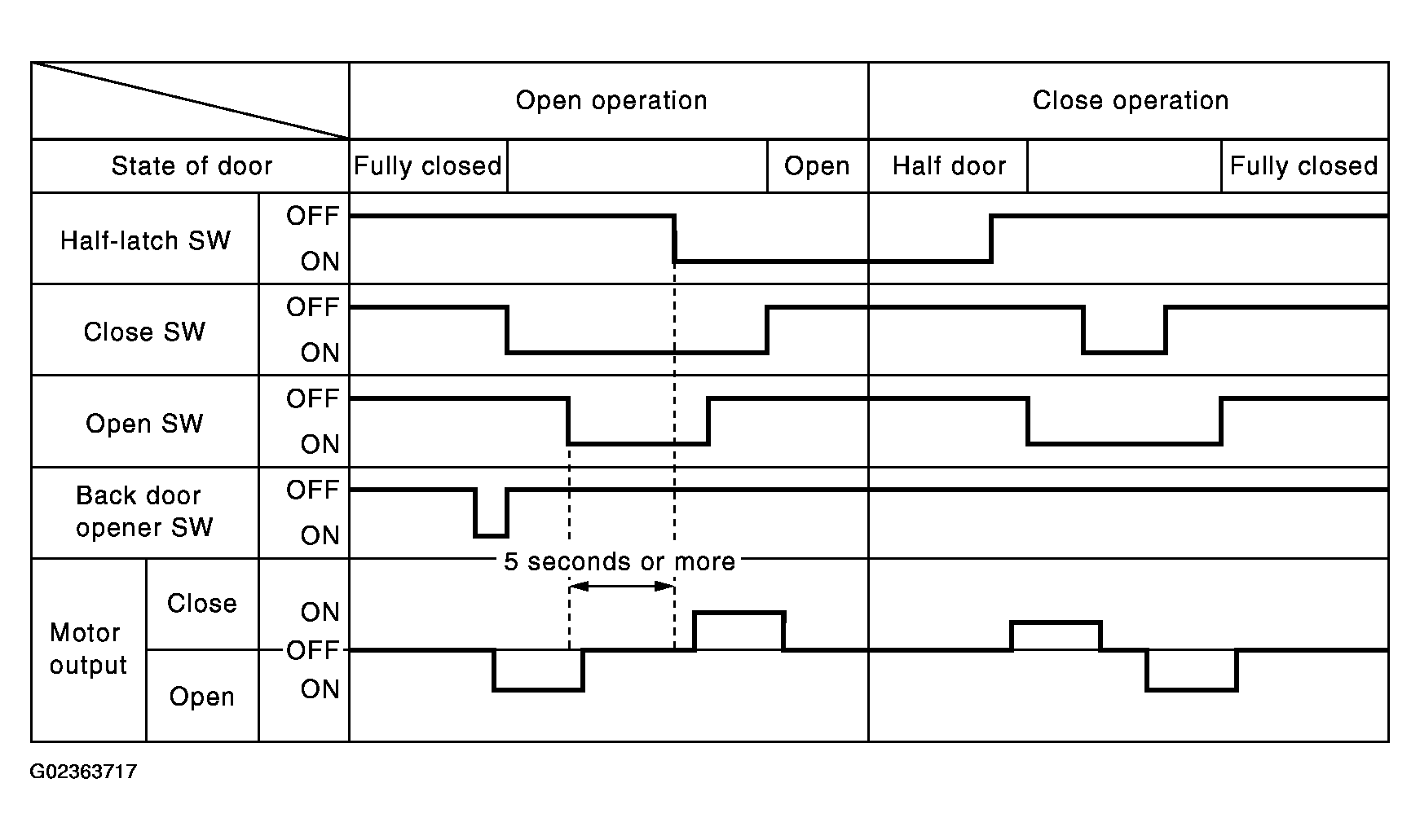

Fig 1: Open And Close Door Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
