Check Ignition Knob Switch

With CONSULT-II

Display "PUSH SW" on "DATA MONITOR" screen, and check if ON/OFF display is linked to ignition knob operation.

1. Press ignition knob. : ON
2. Return ignition knob (release hands : OFF
3. From ignition knob)

OK or NG

1. OK : Ignition knob switch is OK.
2. NG : GO TO 2.

1. Turn ignition knob LOCK position.
2. Disconnect key switch and ignition knob switch connector.
3. Check voltage between key switch and ignition knob switch connector M22 terminal 1 (L/R) and ground.
   1. 1 (L/R) - Ground : Battery voltage

OK or NG

1. OK : GO TO 3.
2. NG : Repair or replace key switch and ignition knob switch power supply circuit.

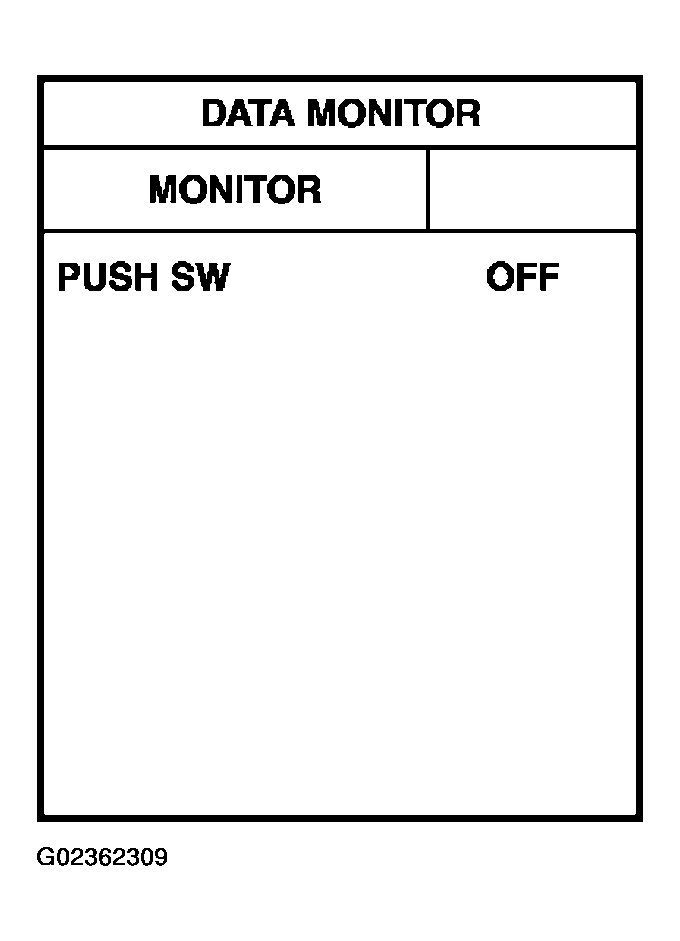

Fig 1: Displaying "PUSH SW" On "DATA MONITOR" Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between key switch and ignition knob switch terminals 1 and 2.

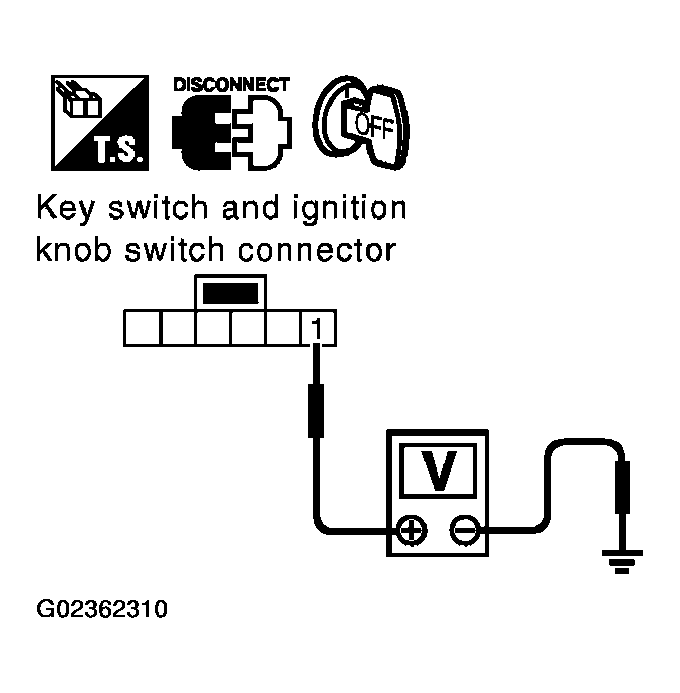

Fig 2: Checking Voltage Between Key Switch And Ignition Knob Switch Connector M22 Terminal 1 (L/R) And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

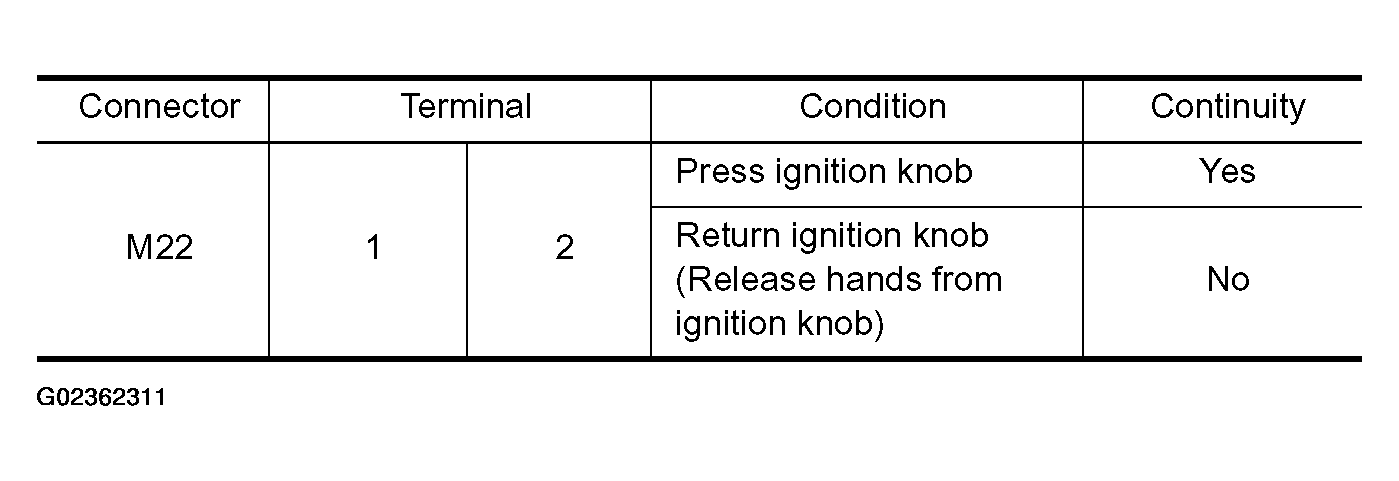

Fig 3: Connector Terminal Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 4.
2. NG : Replace key switch and ignition knob switch.

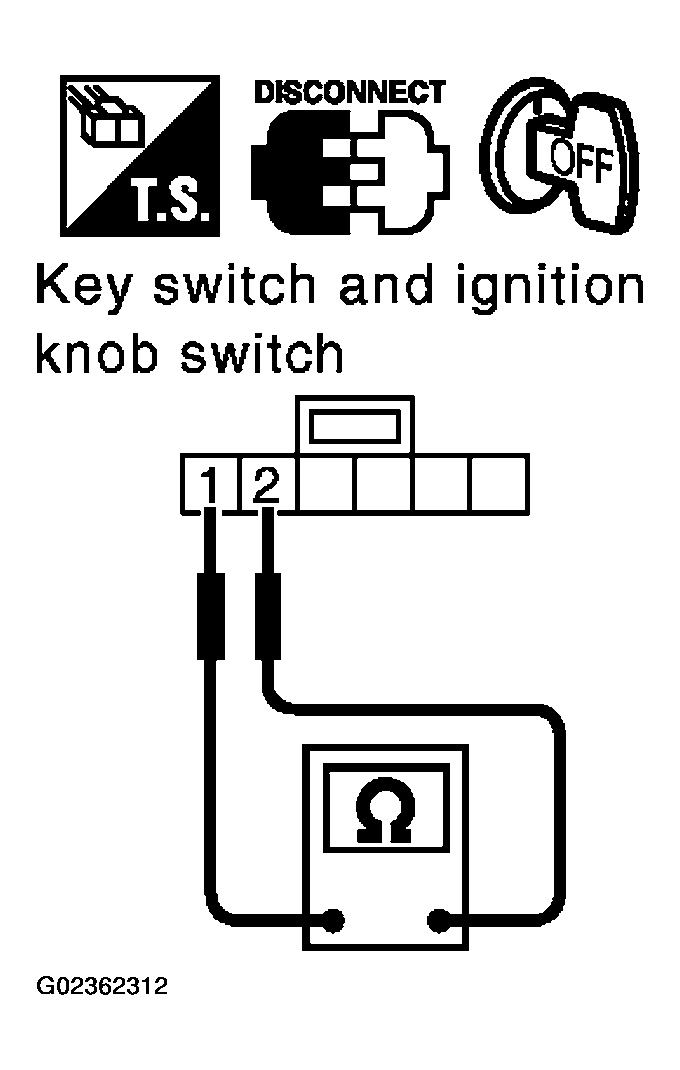

Fig 4: Checking Continuity Between Key Switch And Ignition Knob Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit connector M34 terminal 27 (L/W) and key switch and ignition knob switch connector M22 terminal 2 (L/W).
   1. 27 (L/W) - 2 (L/W) : Continuity should exist.
3. Check continuity between key switch and ignition knob switch connector terminal 2 (L/W) and ground.
   1. 2 (L/W) - Ground : Continuity should not exist.

OK or NG

1. OK : Replace Intelligent Key unit.
2. NG : Repair or replace harness between Intelligent Key unit and key switch and ignition knob switch.

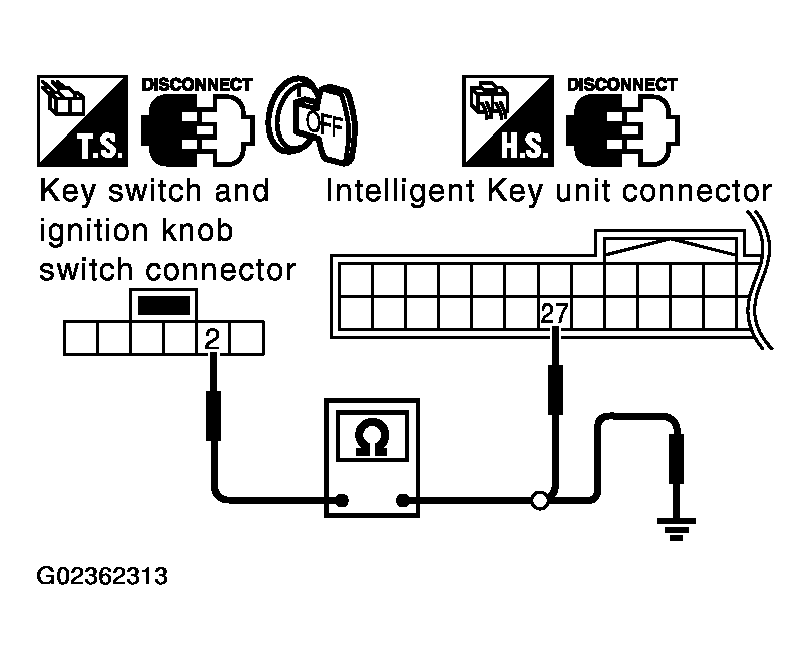

Fig 5: Checking Ignition Knob Switch Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
