Intelligent Key Battery Inspection

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Check by connecting a resistance (approximately 300°) so that the current value becomes about 10 ma.

  1. Standard : Approx. 2.5V - 3.0V

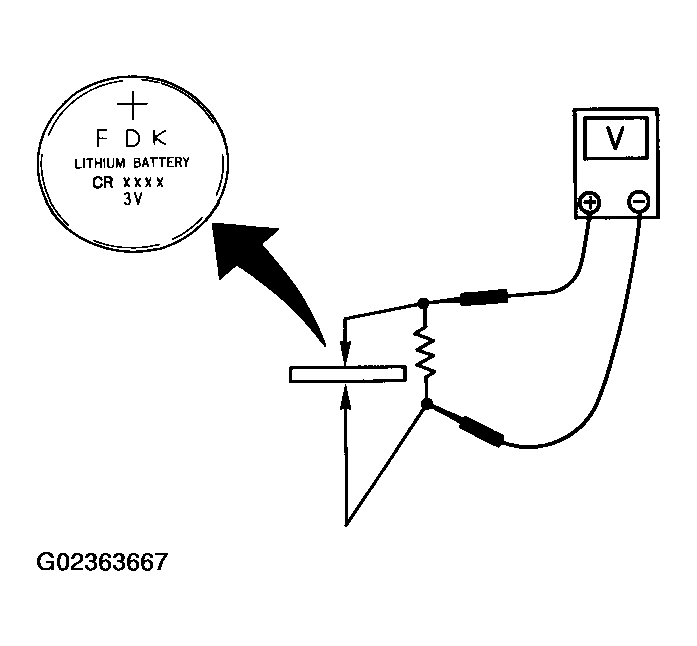

Fig 1: Inspecting Intelligent Key Battery
G02363667Courtesy of NISSAN MOTOR CO., U.S.A.
