Removal and Installation of Intelligent Key Unit: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower driver panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the Intelligent Key unit connector, remove the screw and Intelligent Key unit.

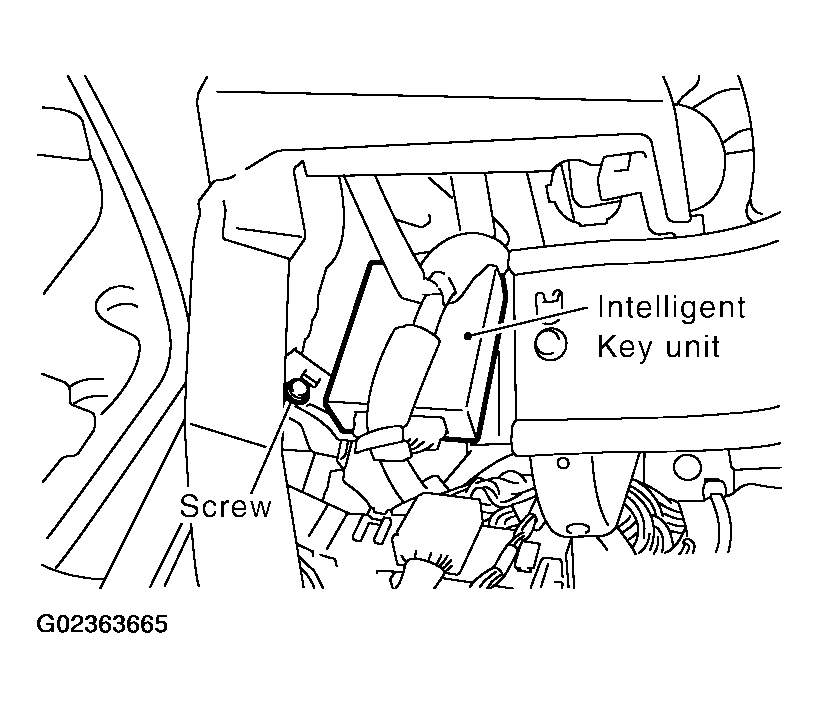

    Fig 1: Removing Screw And Intelligent Key Unit
    G02363665Courtesy of NISSAN MOTOR CO., U.S.A.
