Remote Controller Does Not Work

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DVD PLAYER OPERATION SWITCH
    1. Turn ignition switch ACC.
    2. Push "POWER" switch of DVD player and operate DVD player switch.

    Dose the DVD player switches work?

    1. YES : Replace remote controller.
    2. NO : GO TO 2.
  2. CHECK REMOTE CONTROLLER AND SENSOR

    Check the inspection items below to diagnose the malfunction.

    • Check that remote controller is facing to the sensor.
    • Check that sensor does not have any seals or dirt that is interrupting signal.
    • Check that the remote controller battery has run down.

    OK or NG

    1. OK : GO TO 3.
    2. NG :
      • When operating, face remote controller to the sensor.
      • Remove seal or dirt that is interrupting signal.
      • If the battery has run down, replace it with new one.

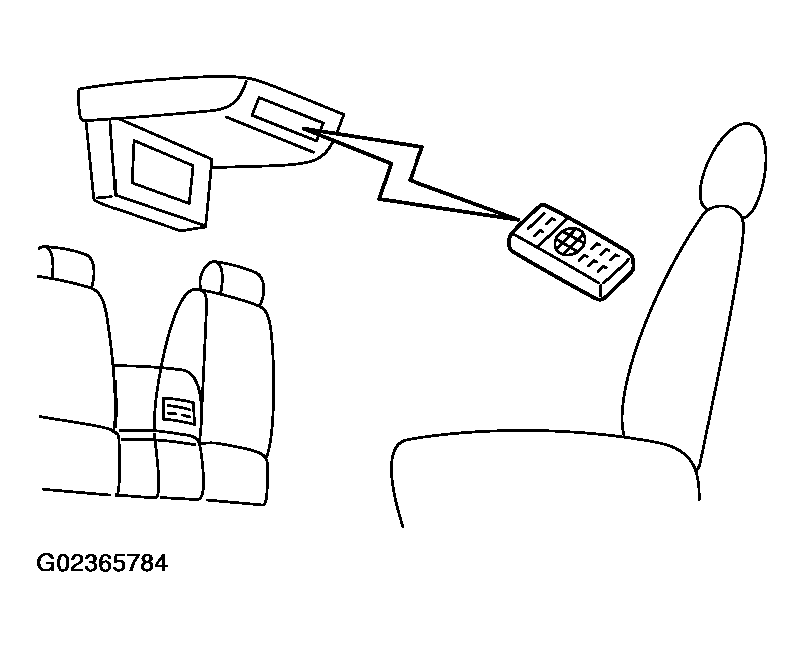

    Fig 1: Checking Remote Controller And Sensor
    G02365784Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS
    1. Turn ignition switch OFF.
    2. Disconnect DVD player connector and DVD display connector.
    3. Check continuity between DVD player harness connector B19 terminal 30 (BR) and DVD display harness connector B192 terminal 14 (BR).
      1. 30 (BR) - 14 (BR) : Continuity should exist.
    4. Check continuity between DVD player harness connector B19 terminal 30 (BR) and ground.
      1. 30 (BR) - Ground : Continuity should not exist.

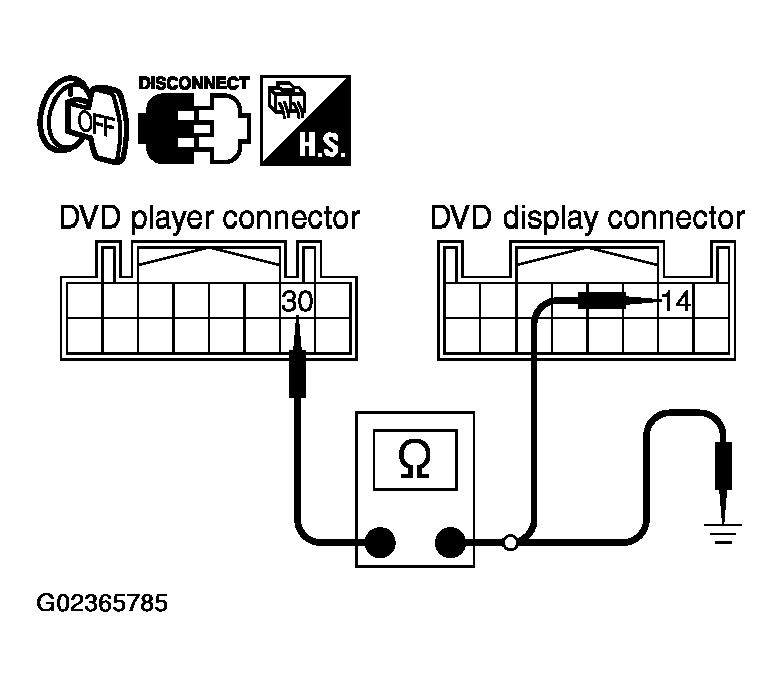

      Fig 2: Checking Continuity Between DVD Player Harness Connector B19 Terminal 30
      G02365785Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 4.
    2. NG : Repair harness or connector.
  4. CHECK DATA (LCD - DVD) SIGNAL
    1. Connect DVD display connector.
    2. Turn ignition switch ACC.
    3. Check the signal between DVD player harness connector B19 terminal 30 (BR) and ground.
      1. 30 (BR) - Ground : Refer to " TERMINALS AND REFERENCE VALUE FOR DVD PLAYER   ".

    OK or NG

    1. OK : Replace DVD player.
    2. NG : Replace DVD display.

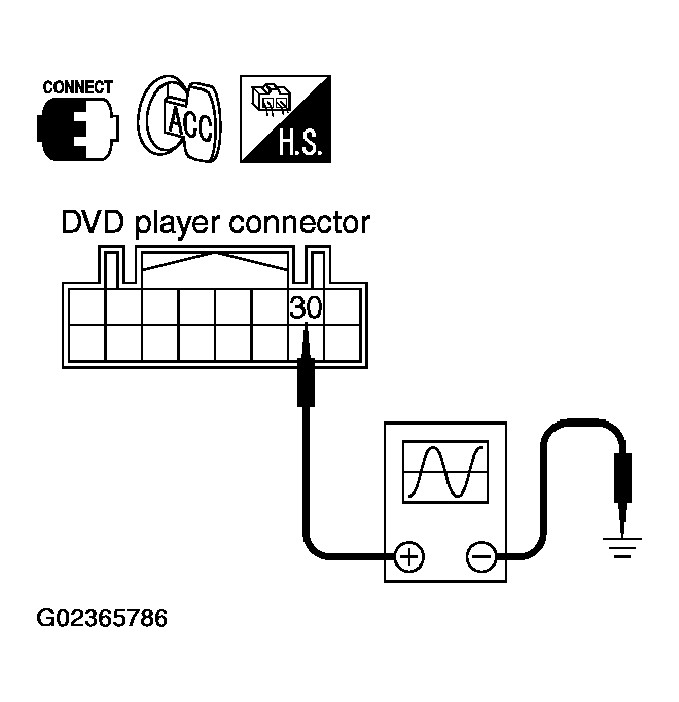

    Fig 3: Checking Signal Between DVD Player Harness Connector B19 Terminal 30
    G02365786Courtesy of NISSAN MOTOR CO., U.S.A.
