Ignition Signal Inspection

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IGNITION SIGNAL
1. Turn ignition switch ON.
2. Check voltage between display unit harness connector M62 terminal 3 (G/R) and ground.
  1. Battery voltage should exist.
OK or NG
1. OK : Replace display unit.
2. NG : Check harness for open or short between display unit and fuse.

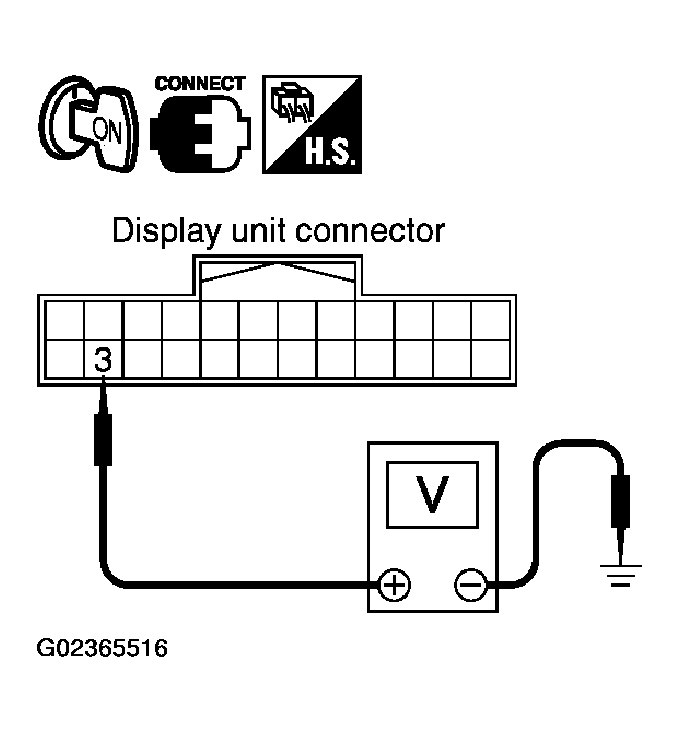

Fig 1: Checking Voltage Between Display Unit Harness Connector M62 Terminal 3 (G/R) And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
