Removal and Installation of Display Control Unit: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument passenger lower panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove screws (2) with power tool and remove display control unit.

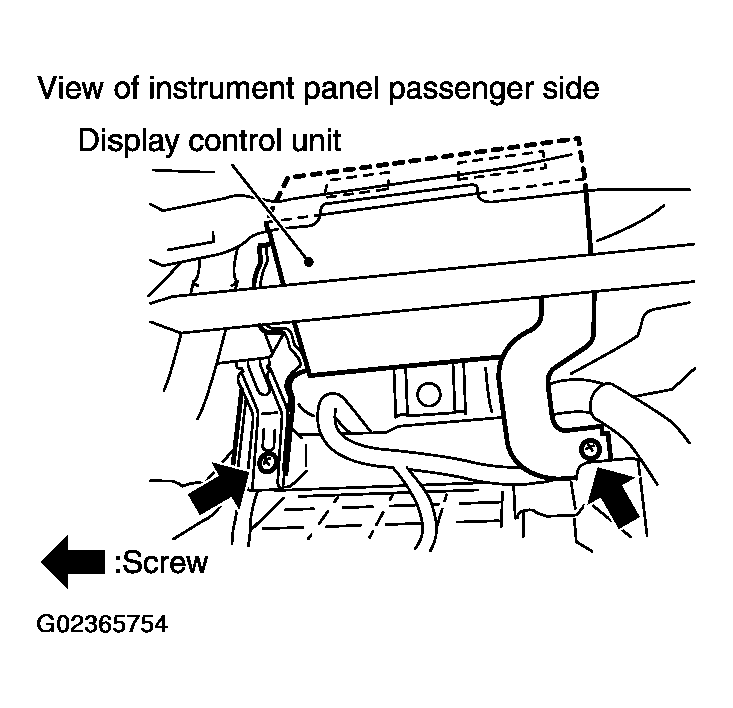

    Fig 1: Removing Screws With Power Tool
    G02365754Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4) with power tool and remove bracket.
    Fig 2: Removing Screws With Power Tool
    G02365755Courtesy of NISSAN MOTOR CO., U.S.A.
