Replacement Operations: HOODLEDGE
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Work after radiator core support has been removed.
Service Joint

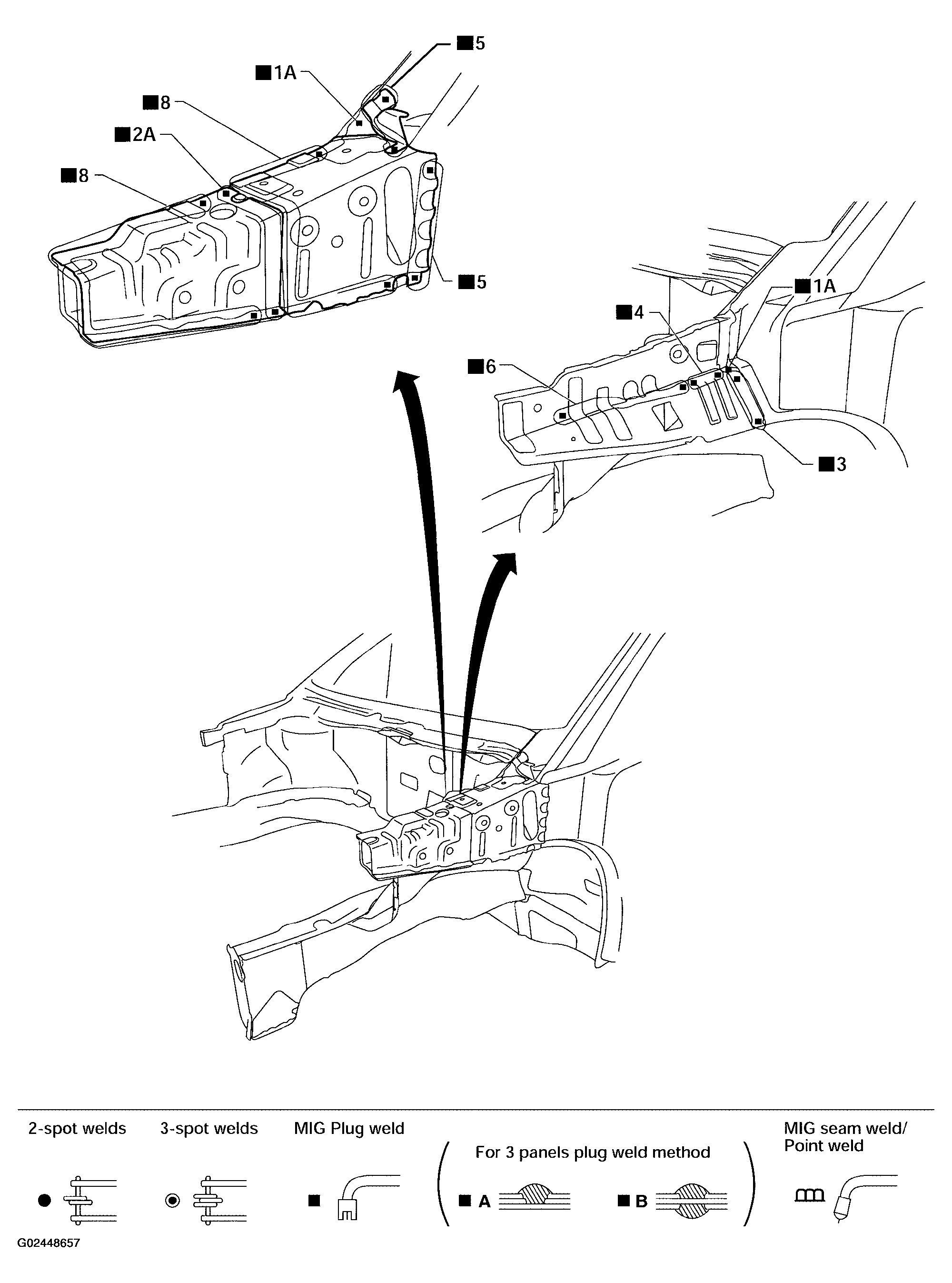

Fig 1: Identifying Hoodledge Service Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
