Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Unlock slider by squeezing lock tabs on slider from adjuster holder.
Remove casing cap from bracket of control device assembly and remove interlock rod from adjuster holder.

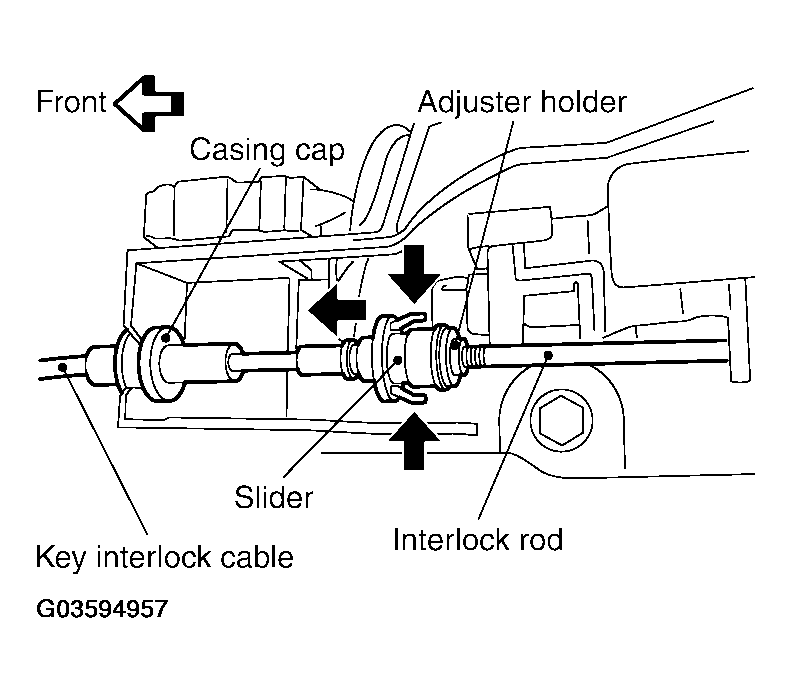

Fig 1: Removing Interlock Rod From Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove holder from key cylinder and remove key interlock cable.

Fig 2: Removing Lock Plate From Key Cylinder
Courtesy of NISSAN MOTOR CO., U.S.A.
