Oil Pressure Switch Test
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

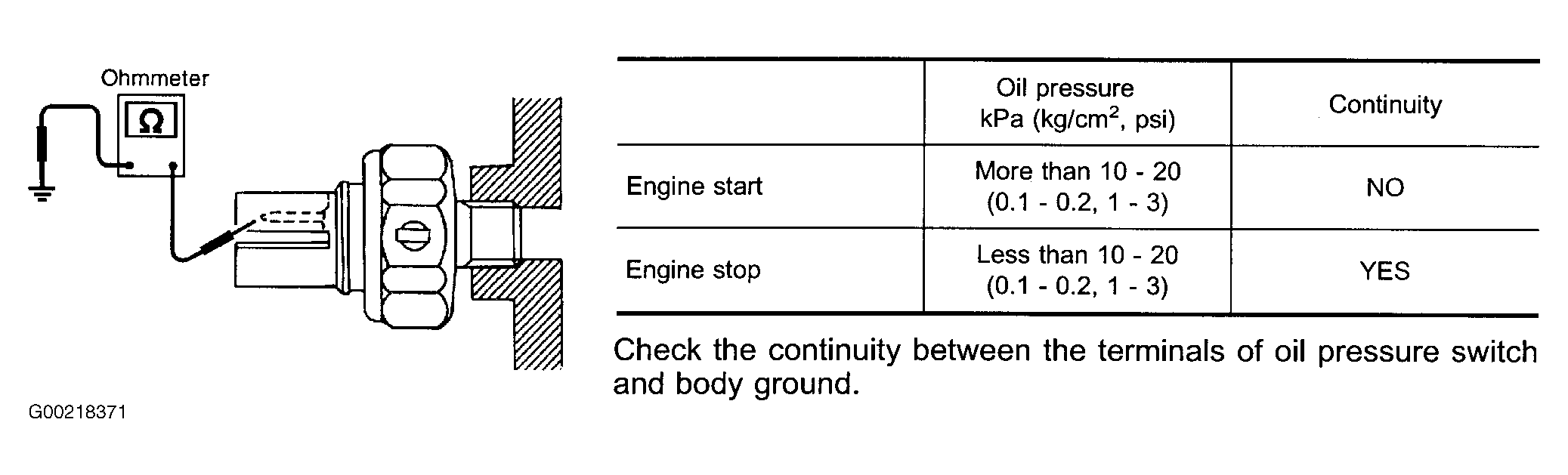

For oil pressure switch test, see Fig 1.
For oil pressure switch test, see Fig 1.
