Thermal Transmitter Tests

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For thermal transmitter check, see THERMAL TRANSMITTER CHECK .

For thermal transmitter tests, see .Fig 1 and Fig 2

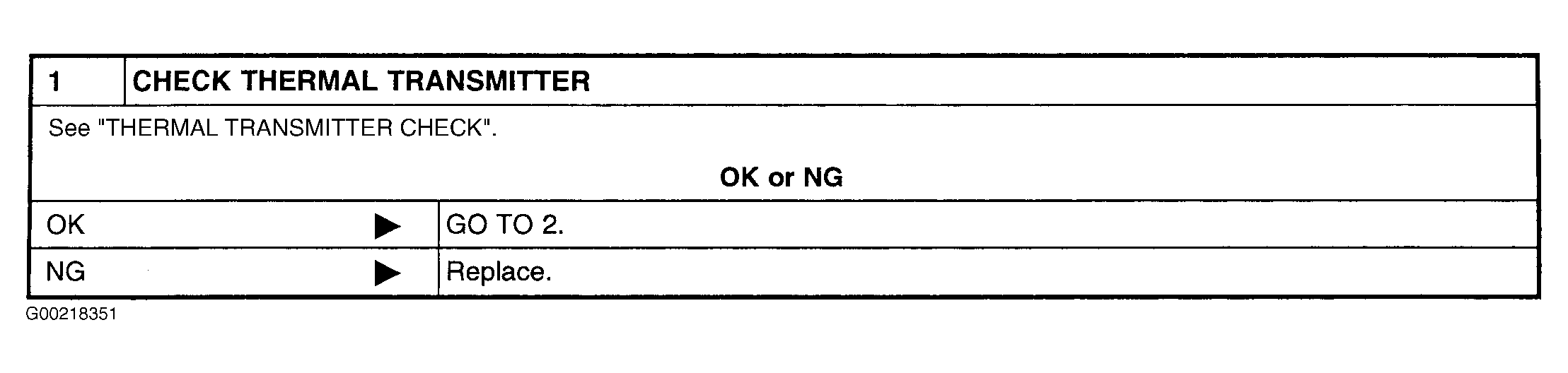

Fig 1: Identifying Thermal Transmitter Tests, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

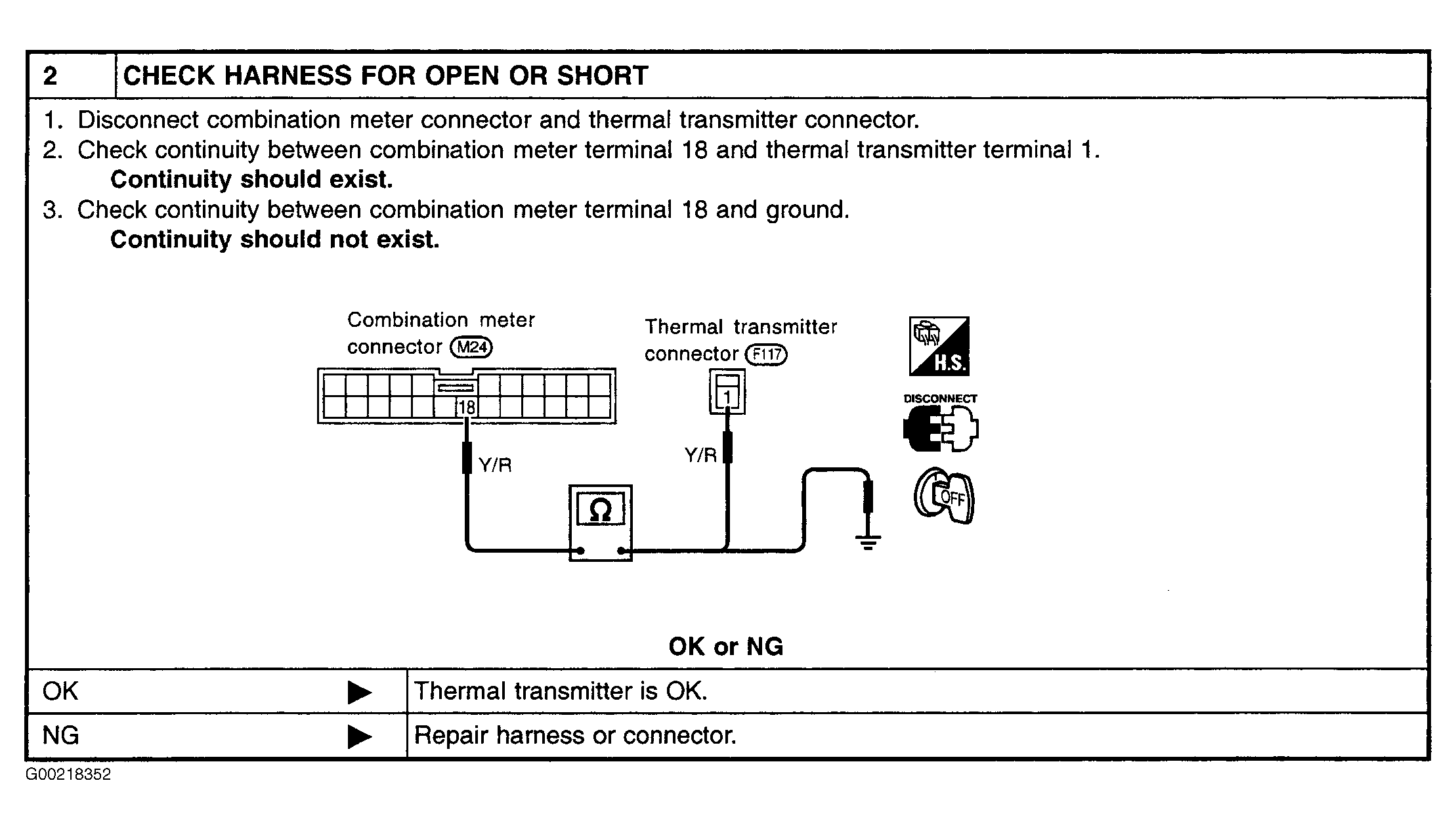

Fig 2: Identifying Thermal Transmitter Tests, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
