Direct Clutch: Assembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install drive plates, driven plates and retaining plate in direct clutch drum.
CAUTION: Take care with the order of plates.

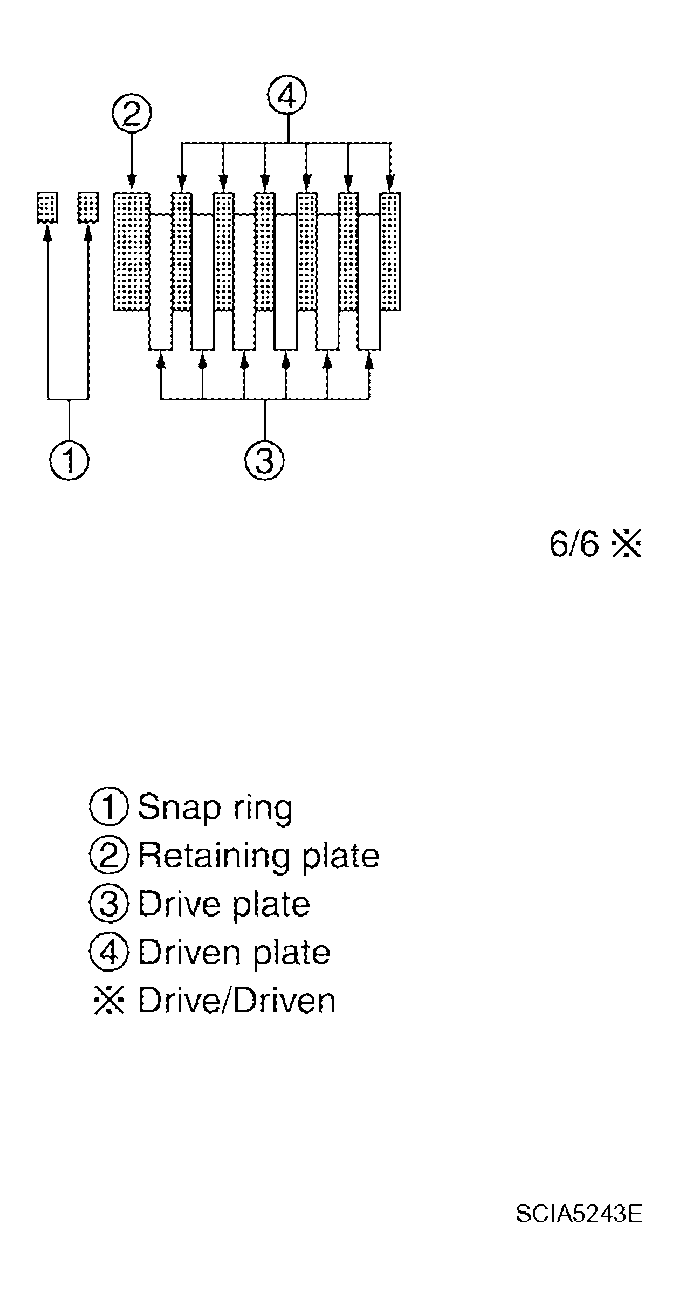

Fig 1: Installing Drive Plates, Driven Plates And Retaining Plate In Direct Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap rings in direct clutch drum using suitable tool.

Fig 2: Removing/Installing Direct Clutch Drum Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
