Diagnostic Procedure

SYMPTOM 1:

• Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
• Selector lever can be moved from "P" position with key in ON position and brake pedal released.
• Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2:

• Ignition key cannot be removed when selector lever is set to "P" position.
• Ignition key can be removed when selector lever is set to any position except "P"

1. CHECK KEY INTERLOCK CABLE

   Check key interlock cable for damage.

   OK or NG

   OK : GO TO 2.

   NG : Repair key interlock cable. Refer to , "KEY INTERLOCK CABLE "

2. CHECK SELECTOR LEVER POSITION

   Check selector lever position for damage. Refer to , "CHECKING OF A/T POSITION "

   OK or NG

   OK : GO TO 3.

   NG : Check selector lever. Refer to , "ADJUSTMENT OF A/T POSITION "

3. CHECK INPUT SIGNAL A/T DEVICE
   1. Turn ignition switch "OFF".
   2. Disconnect A/T device harness connector.
   3. Check voltage between A/T device harness connector M156 terminal 1 and ground.

   Voltage

   Depressed brake pedal :Battery voltage

   Released brake pedal :Approx. 0V

   OK or NG

   OK : GO TO  5.

   NG : GO TO 4.

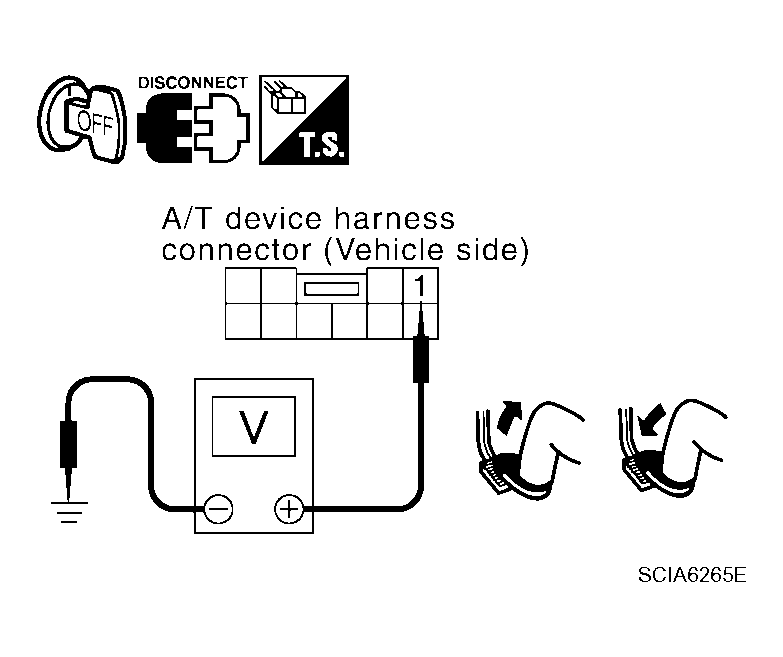

   Fig 1: Checking Voltage Between A/T Device Connector M156 Terminal 1 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. DETECT MALFUNCTIONING ITEM

   Check the following.

   1. Harness for short or open between ignition switch and stop lamp switch harness connector E38 terminal 3.
   2. Harness for short or open between stop lamp switch harness connector E38 terminal 4 and A/T device harness connector M156 terminal 1.
   3. 10A fuse. [No.12, located in the fuse block (J/B)]
   4. Stop lamp switch.
   • Check continuity between stop lamp switch terminals 3 and 4.

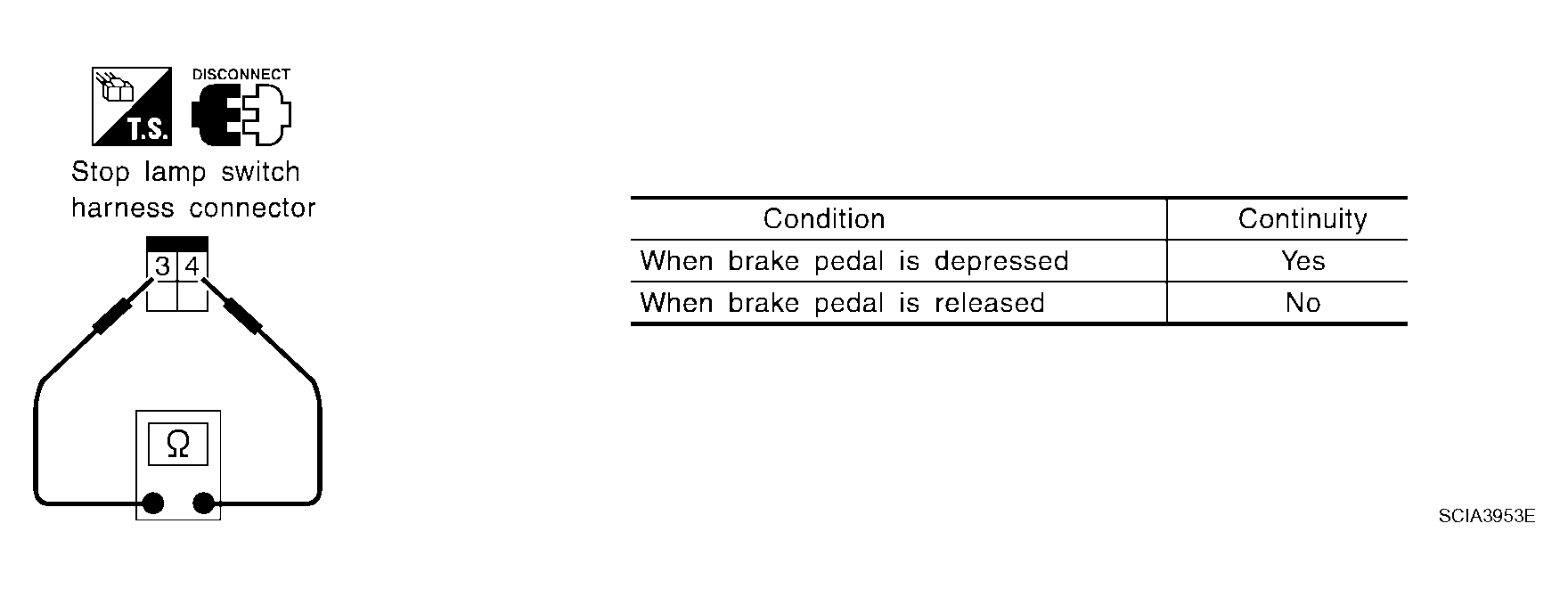

     Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 3 And 4

     Courtesy of NISSAN MOTOR CO., U.S.A.

   Check stop lamp switch after adjusting brake pedal -  Refer to "BRAKE PEDAL "

   OK or NG

   OK : GO TO 5.

   NG : Repair or replace damaged parts.

5. CHECK GROUND CIRCUIT
   1. Turn ignition switch "OFF".
   2. Disconnect A/T device harness connector.
   3. Check continuity between A/T device harness connector M156 terminal 2 and ground.

   Continuity should exist.

   If OK, check harness for short to ground and short to power.

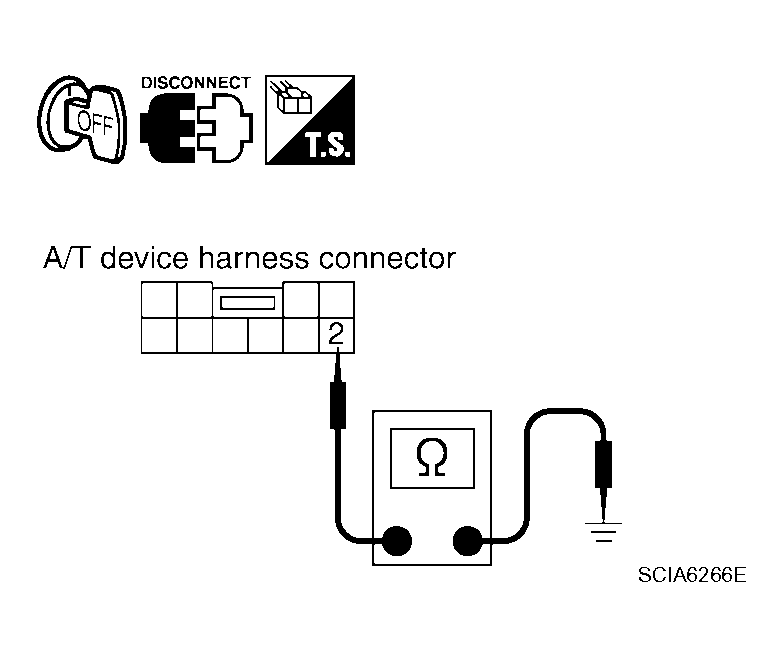

   Fig 3: Checking Continuity Between A/T Device Connector M156 Terminal 2 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK : GO TO 6.

   NG : Repair open circuit or short to ground or short to power in harness or connectors.

6. CHECK PARK POSITION SWITCH AND SHIFT LOCK SOLENOID CIRCUIT

   Check continuity between A/T device terminals 1 and 2.

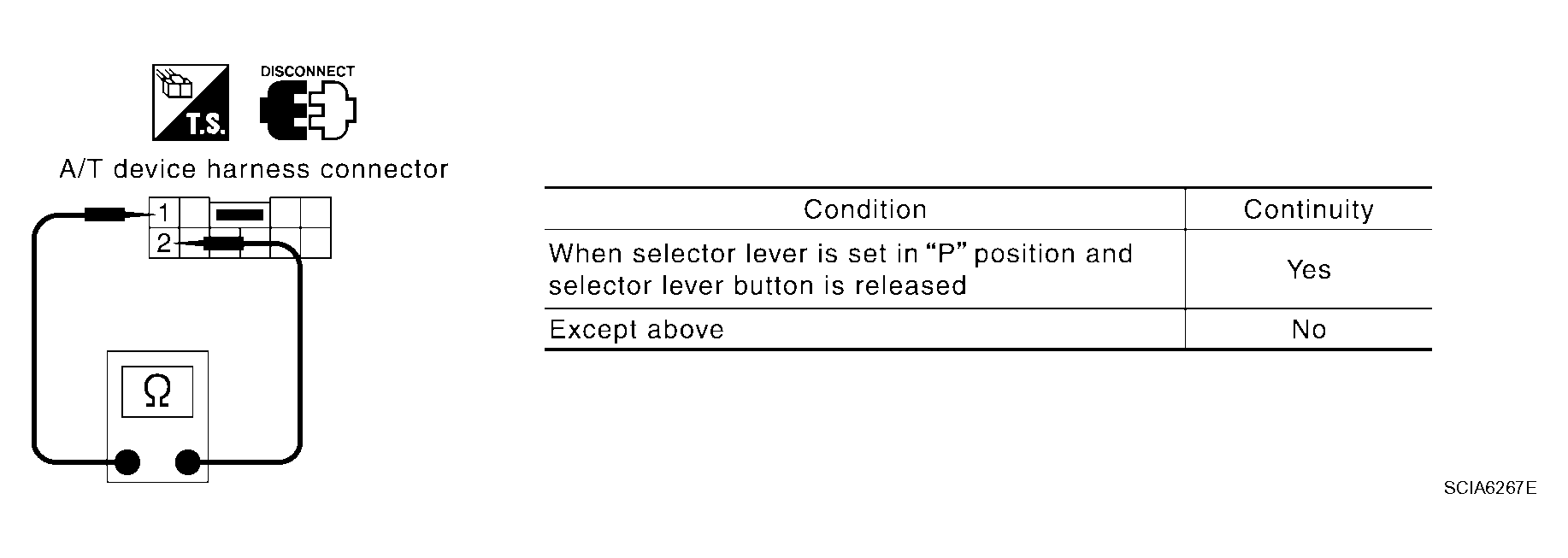

   Fig 4: Checking Continuity Between A/T Device Terminals 1 And 2

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK : INSPECTION END

   NG :

   • Replace park position switch or shift lock solenoid.
   • Repair open circuit or short to ground or short to power in harness or connectors.
