Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Unlock slider by squeezing lock tabs on slider from adjuster holder.
Remove casing cap from bracket of control device assembly and remove interlock rod from adjuster holder.

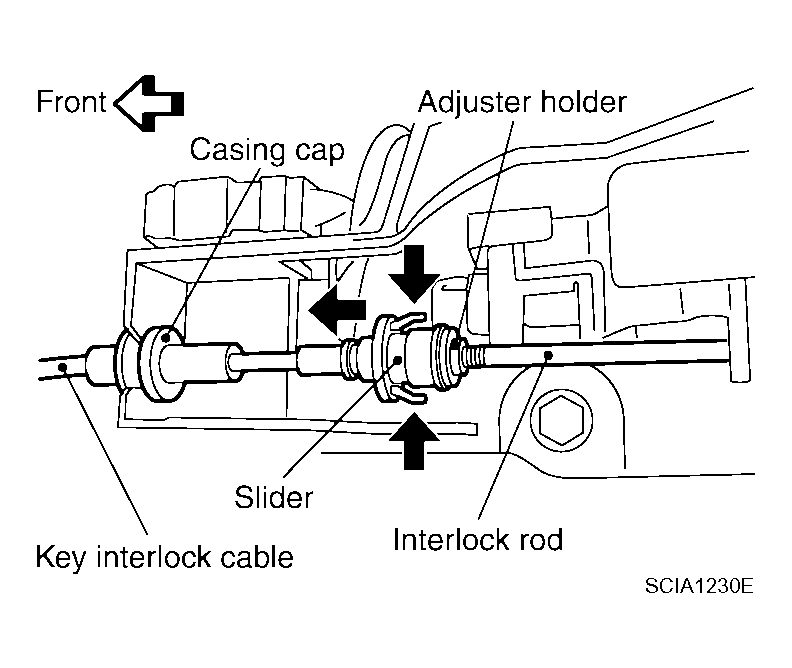

Fig 1: Removing Interlock Rod From Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove holder from key cylinder and remove key interlock cable.

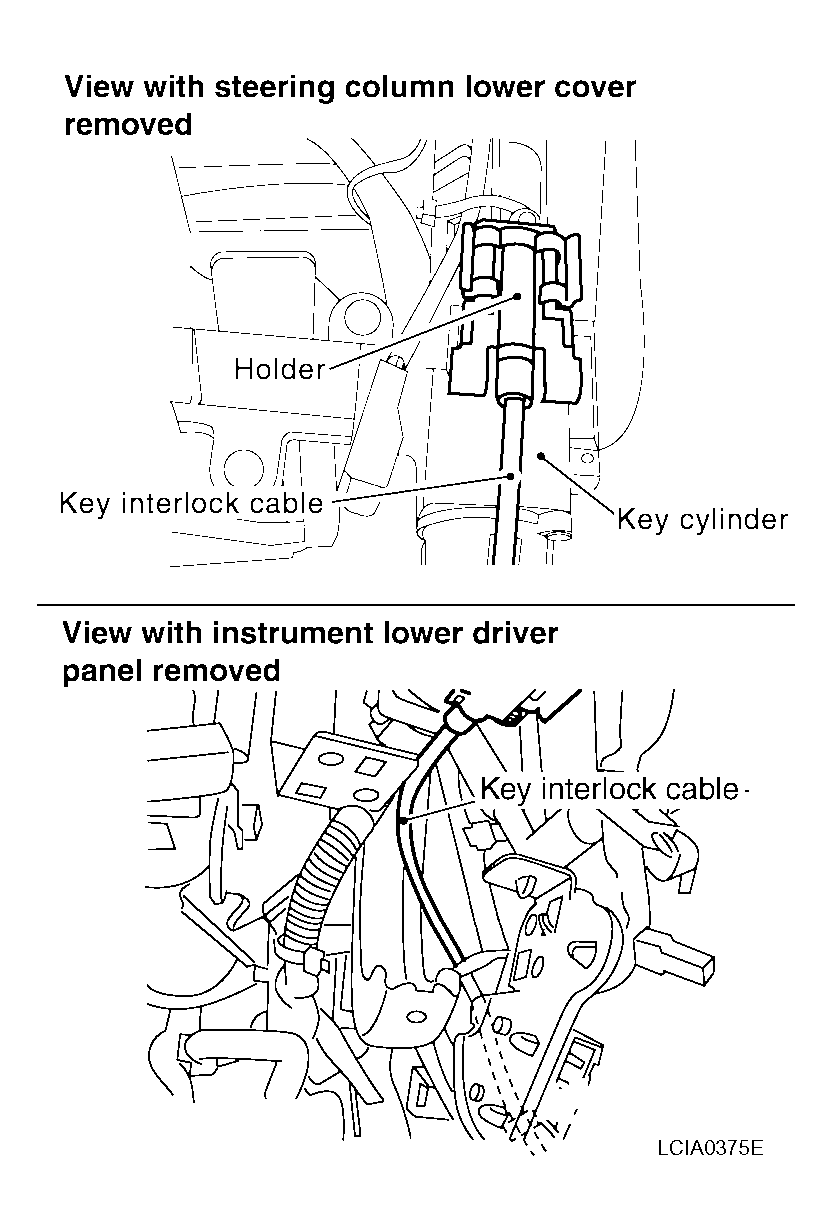

Fig 2: Identifying Holder From Key Cylinder And Key Interlock Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
