Display Control Unit: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "CLUSTER LID C - WITHOUT NAVIGATION SYSTEM "
  2. Remove the display control unit assembly screws.
  3. Disconnect the connectors and remove assembly from instrument panel.
  4. Remove the screws, then remove the display control unit from the assembly brackets.

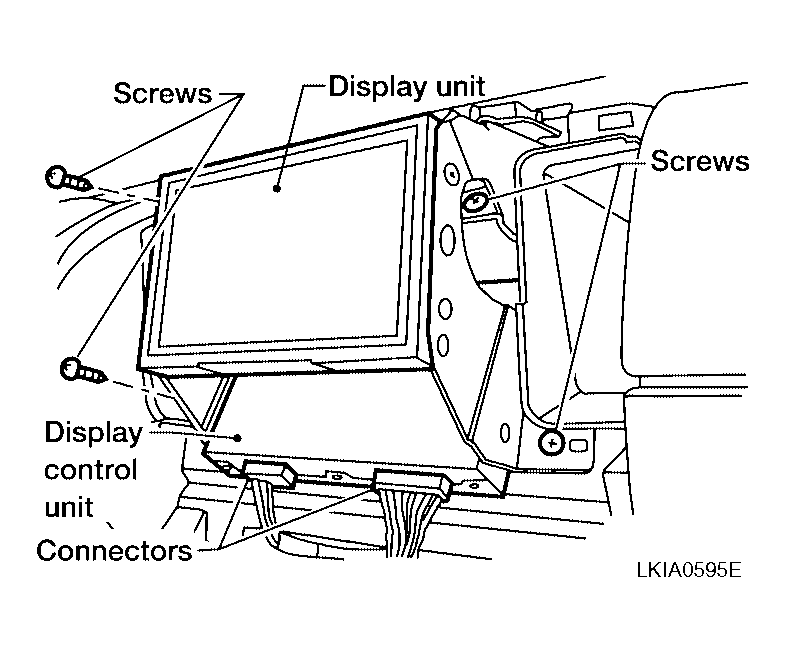

    Fig 1: Removing Display Control Unit Assembly Screws
    G04177877Courtesy of NISSAN MOTOR CO., U.S.A.
