Terminals and Reference Value for AV Switch
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
TERMINALS AND REFERENCE VALUE CHART
| Terminal No. (Wire color) | Item | Signal input/output | Condition | Voltage (Approx.) | Example of symptom | ||
|---|---|---|---|---|---|---|---|
| + | - | Ignition switch | Operation | ||||
| 1 (Y) | Ground | Battery power | Input | OFF | - | Battery voltage | System does not work properly. |
| 2 (G/B) | Ground | ACC power | Input | ACC | - | Battery voltage | System does not work properly. |
| 3 (R) | Ground | Illumination signal | Input | OFF | Lighting switch is ON (position 1). | Battery voltage | AV switch illumination does not come on when lighting switch is ON (position 1). |
| Turn lighting switch OFF. | 3.0V or less | ||||||
| 4 (BR) | Ground | Illumination control signal | Input | ON | Illumination control switch is operated by lighting switch in 1st position. | Changes between 0 and 12V | AV switch illumination cannot be controlled. |
| 5 (B) | Ground | Ground | - | ON | - | 0V | - |

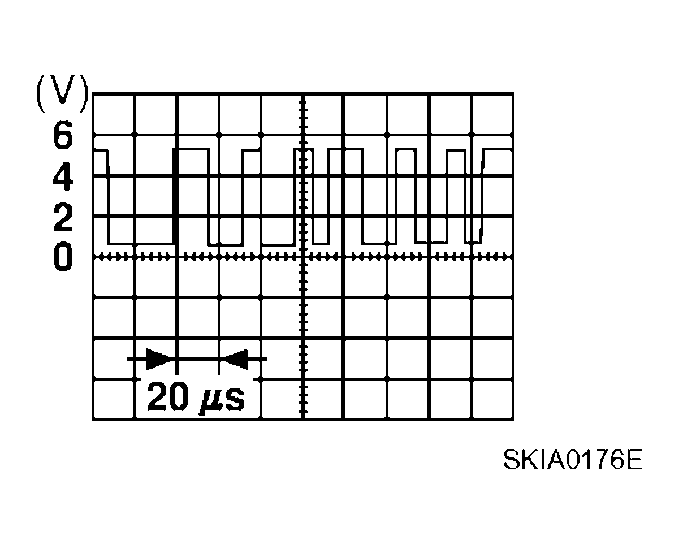

| 6 (V) | Ground | Communication signal (+) | Input/output | ON | - | System does not work properly. | |
| 7 | - | Shield ground | - | - | - | - | - |
| 8 (LG) | Ground | Communication signal (-) | Input/output | ON | - | System does not work properly. | |
| 12 (R) | Ground | Remote control A | Input | ON | Press MODE switch | 0V | Steering wheel audio controls do not function. |
| Press SEEK UP switch | 0.75V | ||||||
| Press VOL UP switch | 2V | ||||||
| Except for above | 5V | ||||||
| 13 (GR) | Ground | Remote control B | Input | ON | Press POWER switch | 0V | Steering wheel audio controls do not function. |
| Press SEEK DOWN switch | 0.75V | ||||||
| Press VOL DOWN switch | 2V | ||||||
| Except for above | 5V | ||||||
| 14 (L) | - | Remote control ground | - | - | - | - | Steering wheel audio controls do not function. |
