Vehicle Speed Signal Check for Display Control Unit

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit connector M94, combination meter connector M24, NAVI control unit connector B152.
3. Check continuity between display control unit harness connector M94 terminal 16 and combination meter harness connector M24 terminal 6.
  Continuity should exist.
4. Check continuity between display control unit harness connector M94 terminal 16 and ground.
Continuity should not exist.

OK or NG

OK: GO TO 2.

NG: Repair harness.

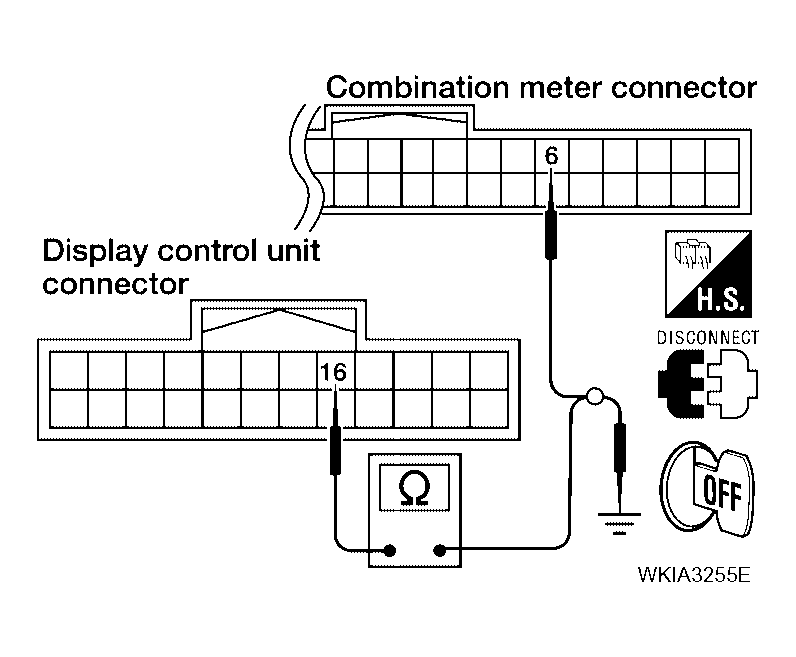

Fig 1: Checking Continuity Between Display Control Unit Harness Connector M94 Terminal 16 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK 1: VEHICLE SPEED SIGNAL
1. Connect display control unit connector.
2. Turn ignition switch ON.
3. Check voltage between display control unit harness connector M94 terminal 16 and ground.
Approx. 3.5V or more

OK or NG

OK: GO TO 3.

NG: Replace display control unit. Refer to , "DISPLAY CONTROL UNIT "

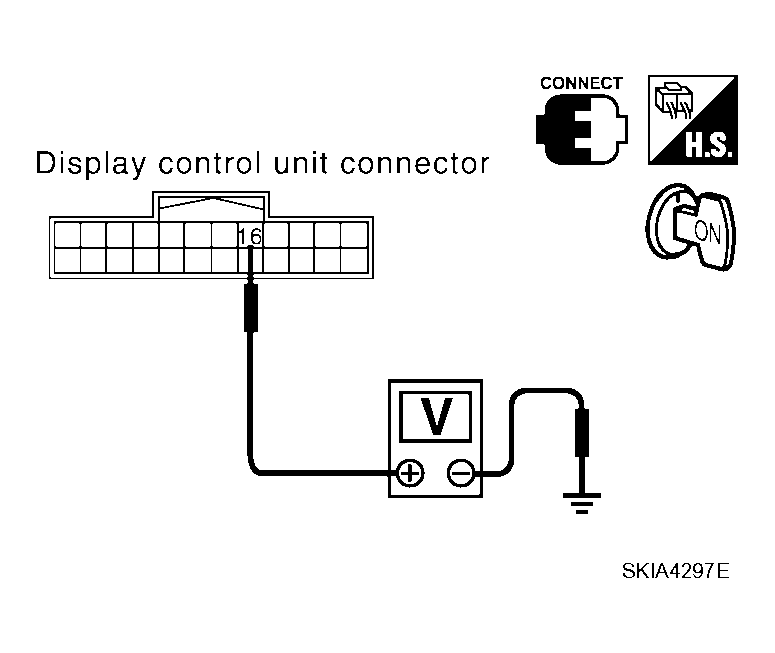

Fig 2: Checking Voltage Between Display Control Unit Harness Connector M94 Terminal 16 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK 2: VEHICLE SPEED SIGNAL
1. Connect combination meter connector and NAVI control unit connector.
2. Drive vehicle at a constant speed.
3. Check signal between display control unit harness connector M94 terminal 16 and ground with CONSULT-II or oscilloscope.
16 - Ground: Refer to , " TERMINALS AND REFERENCE VALUE FOR DISPLAY CONTROL UNIT "

OK or NG

OK: Replace display control unit. Refer to , "DISPLAY CONTROL UNIT "

NG: Check combination meter system. Refer to "VEHICLE SPEED SIGNAL INSPECTION "

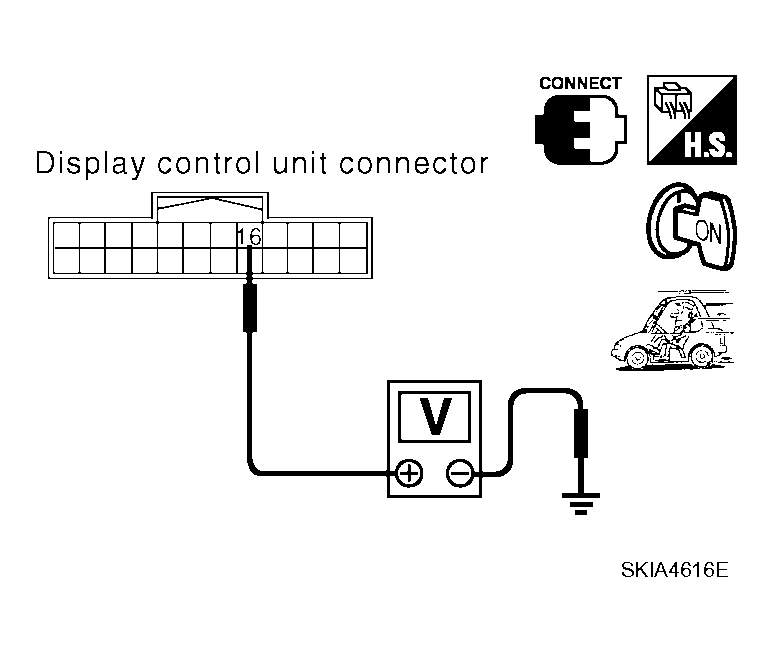

Fig 3: Checking Signal Between Display Control Unit Harness Connector M94 Terminal 16 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
