Special Service Tools
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
TOOL DESCRIPTION
| Tool number (Kent-Moore No.) Tool name |
Description |
|---|---|

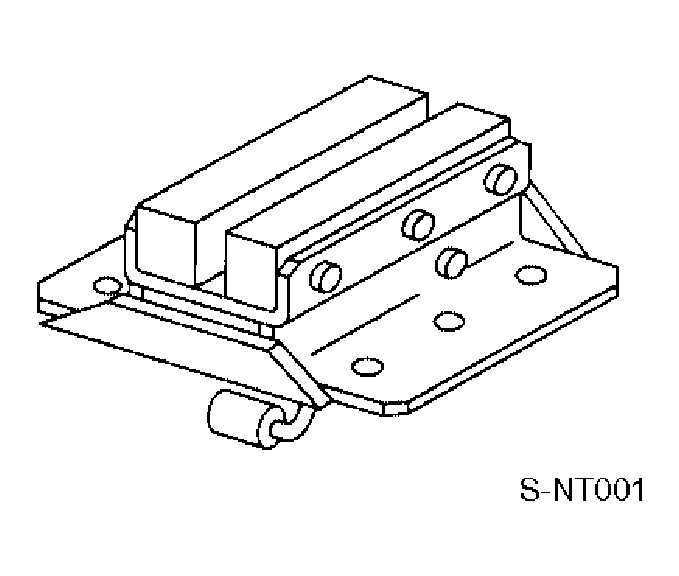

| LM4086-0200 ( - ) Board-on attachment |
|

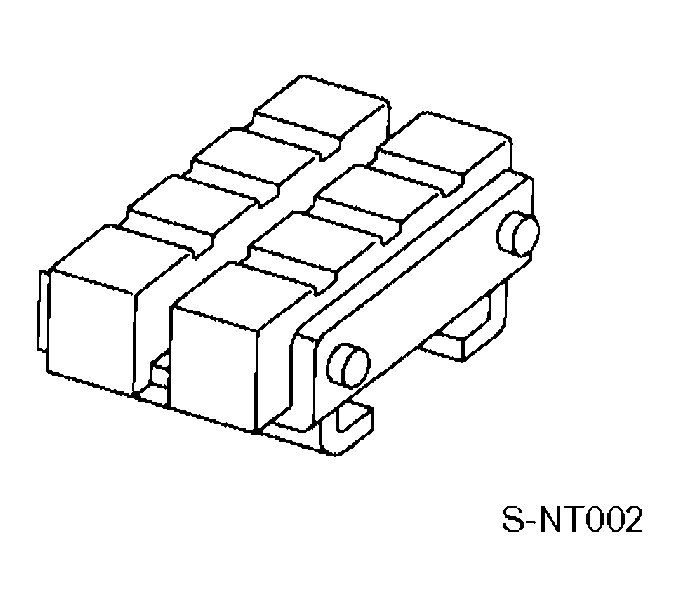

| LM4519-0000 ( - ) Safety stand attachment |
CAUTION:
- Every time the vehicle is lifted up, maintain the complete vehicle curb condition.
- Since the vehicle's center of gravity changes when removing main parts on the front side (engine, transmission, suspension etc.), support a jack up point on the rear side garage jack with a transmission jack or equivalent.
- Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle, suspension, etc.), support a jack up point on the front side garage jack with a transmission jack or equivalent.
- Be careful not to smash or do anything that would affect piping parts.
