Hood Ledge
WARNING:
This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Work after radiator core support has been removed.

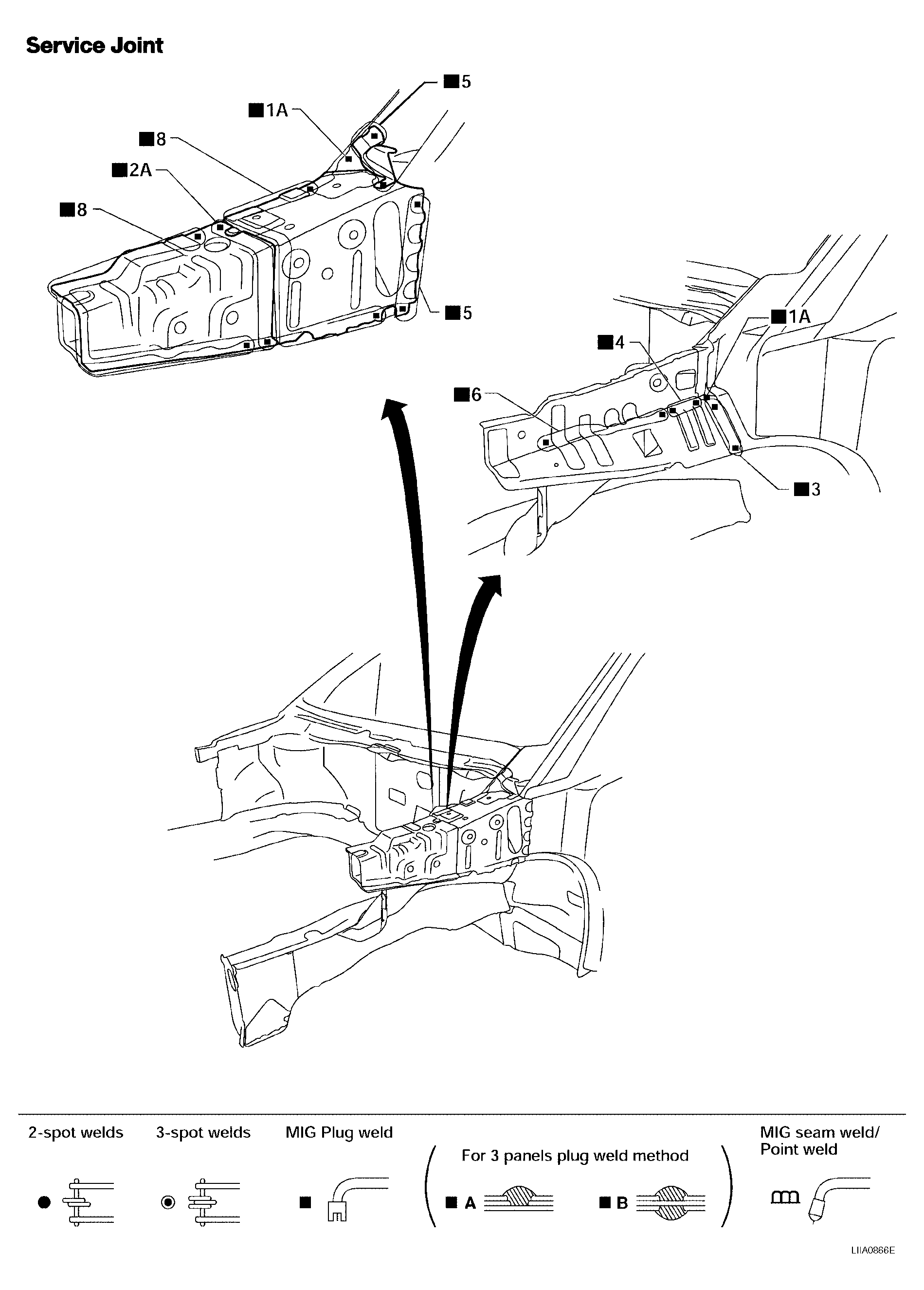

Fig 1: Identifying Hood Ledge Service Joints
Courtesy of NISSAN MOTOR CO., U.S.A.
