Rear Console

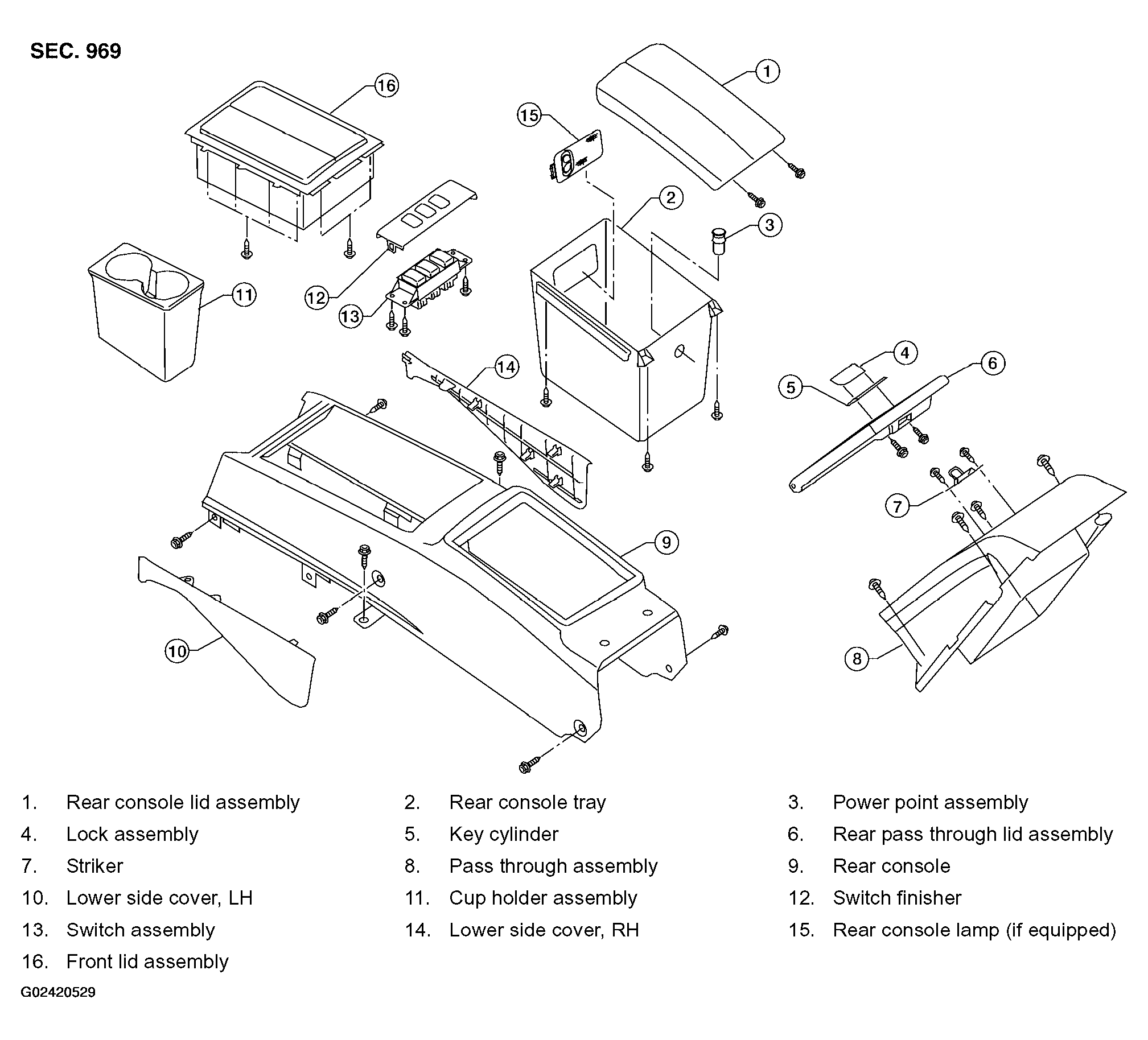

Fig 1: Disassembling Rear Console

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove rear seat cushions and disconnect harnesses. Refer to "REAR SEAT ".
2. Remove rear seat backs and disconnect harnesses. Refer to "REAR SEAT ".
3. Remove screws and remove pass through assembly.
4. Release clips and remove RH and LH lower side covers.
5. Remove screws, disconnect harness and remove rear console assembly.
6. Remove cup holder assembly.
7. Remove screws and remove rear console lid assembly.
8. Disconnect harnesses and remove switch finisher and switch assembly.
   • Remove screws to separate switch finisher and switch assembly.
9. Remove screws and remove rear console tray.
   • Disconnect harnesses.
   • Remove power point assembly.
   • Remove rear console lamp (if equipped).
10. Remove screws and remove front lid assembly.
11. Remove screws and remove striker from rear pass through assembly panel.
12. Remove rear pass through lid assembly.
13. Remove screws and remove lock assembly and key cylinder.

Assembly is in the reverse order of disassembly.
