Mass Air Flow Meter: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL MASS AIR FLOW METER
1. Install the mass air flow meter with the 2 screws.
  NOTE: Make sure that the O-ring is not cracked or jammed when installing.
2. Connect the mass air flow meter connector.
CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

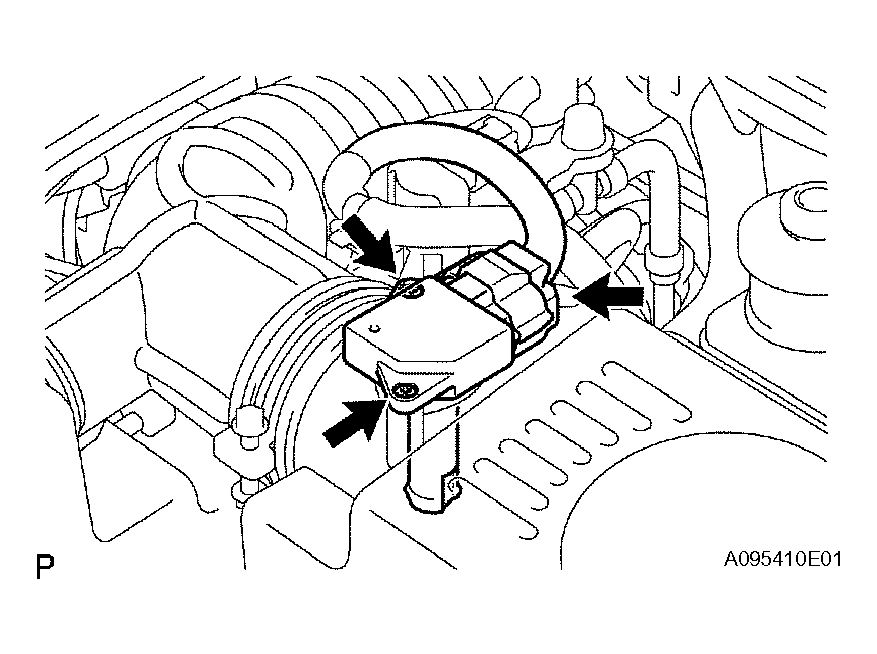

Fig 1: Installing Mass Air Flow Meter With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
