High Mounted Stop Light Assembly: Installation
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

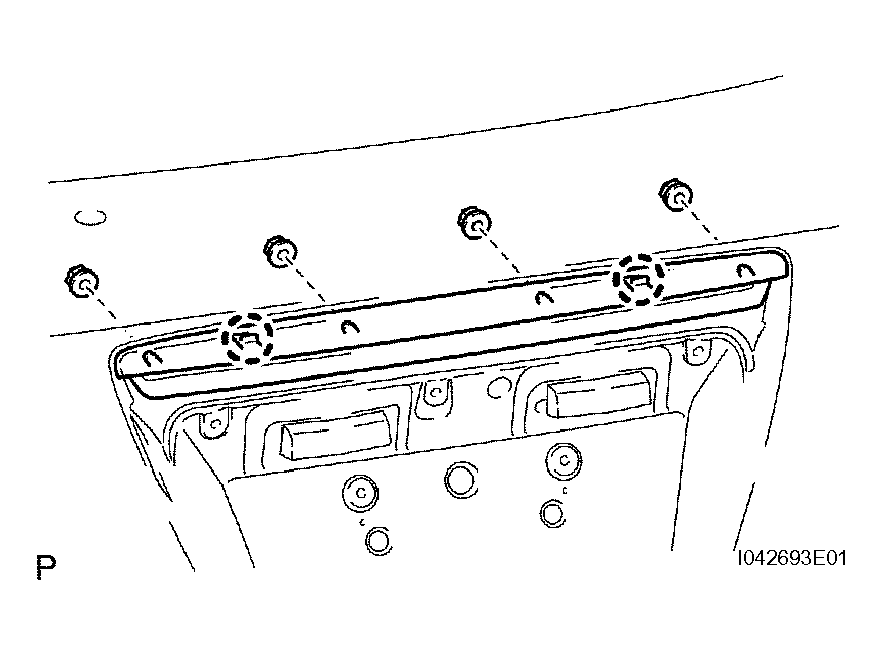

- INSTALL CENTER STOP LIGHT ASSEMBLY
- Install the 4 nuts and attach the 2 claws, and then install the center stop light.
- Connect the connector.
- INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE
- INSTALL BACK DOOR SIDE GARNISH RH (See REASSEMBLY )
- INSTALL BACK DOOR SIDE GARNISH LH (See REASSEMBLY )
- INSTALL BACK DOOR GARNISH CENTER (See REASSEMBLY )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (see INITIALIZATION
).
