Upper Instrument Panel: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 FRONT PANEL SIDE SILENCER
INSTALL NO. 2 INSTRUMENT PANEL CUSHION
INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
1. Install the front passenger airbag (see INSTALLATION ).
INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Attach the 4 claws to install the No. 2 instrument panel register.

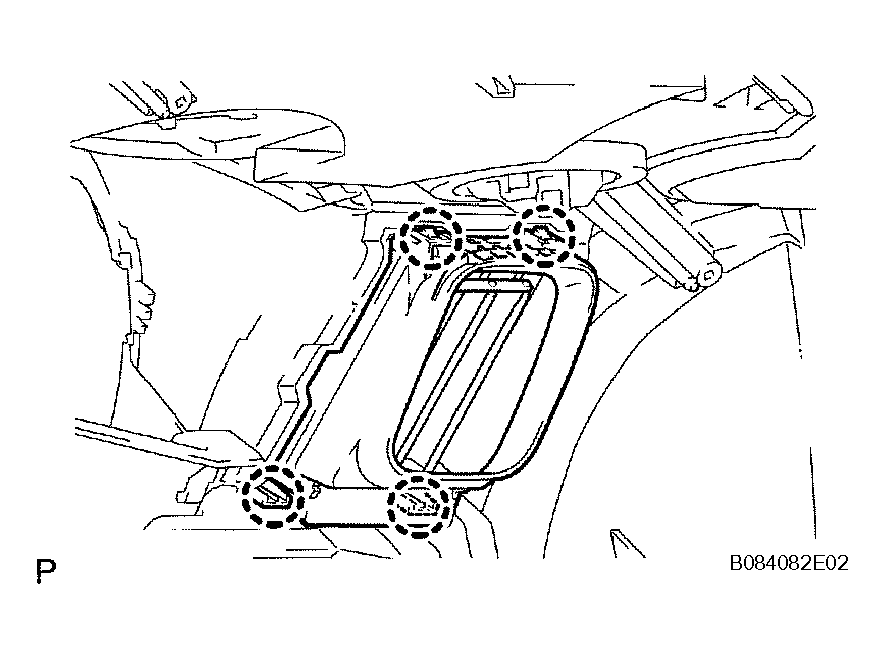

Fig 1: Attaching No. 2 Instrument Panel Register Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
HINT:

Use the same procedures for the No. 2 instrument panel register and No. 1 instrument panel register.
INSTALL DEFROSTER NOZZLE ASSEMBLY
1. Install the defroster nozzle with the 3 screws.

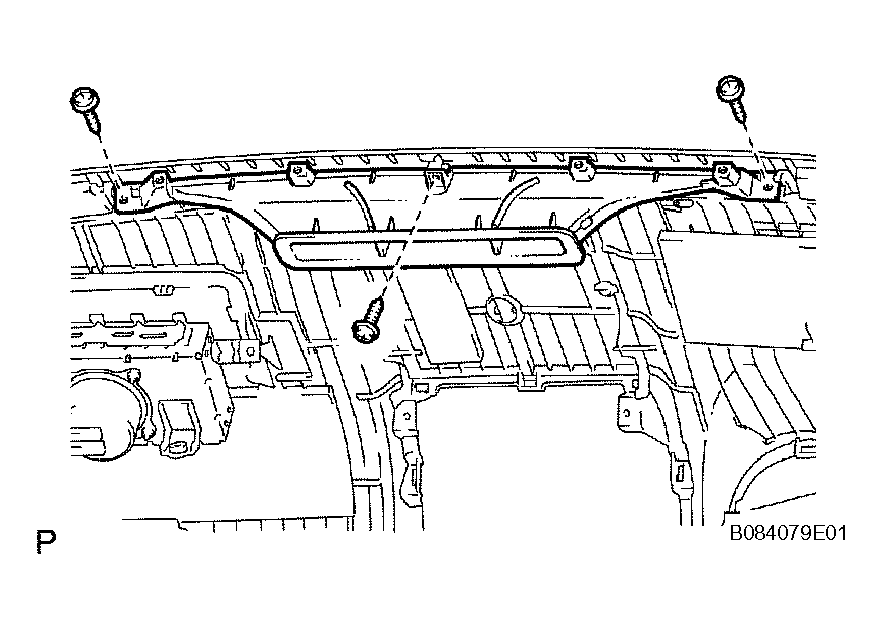

Fig 2: Installing Defroster Nozzle With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 4 HEATER TO REGISTER DUCT
1. Install the No. 4 heater to register duct with the 2 screws.

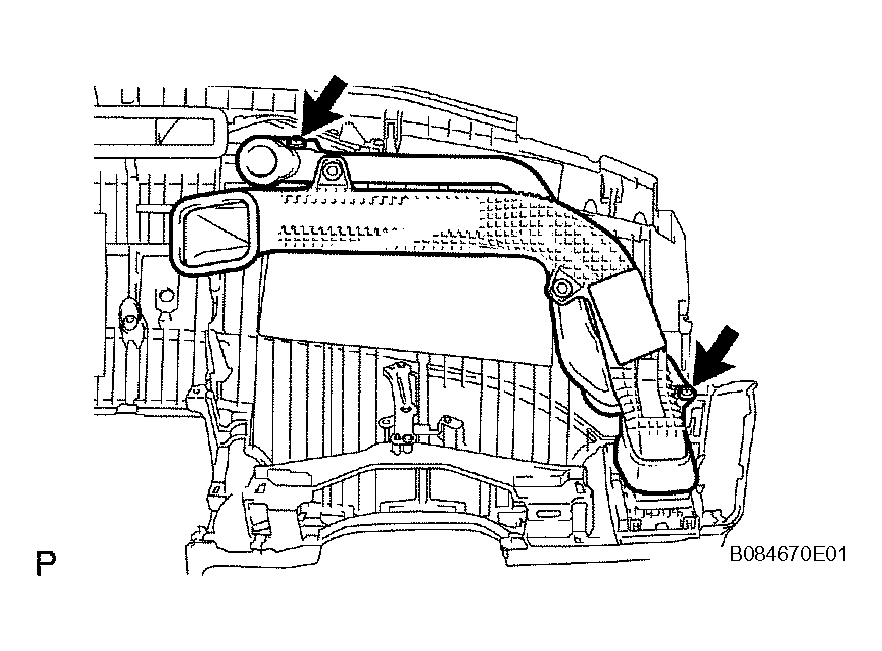

Fig 3: Installing No. 4 Heater To Register Duct With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 HEATER TO REGISTER DUCT
1. Install the No. 1 heater to register duct with the 2 screws.

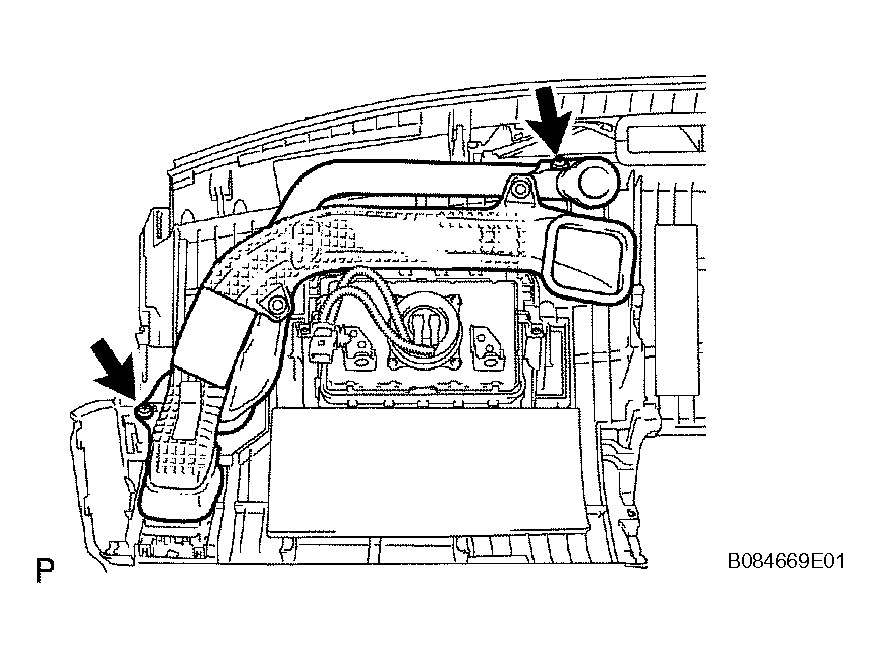

Fig 4: Installing No. 1 Heater To Register Duct With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
